4” Platform
Enclose Glass Walls
System Overview

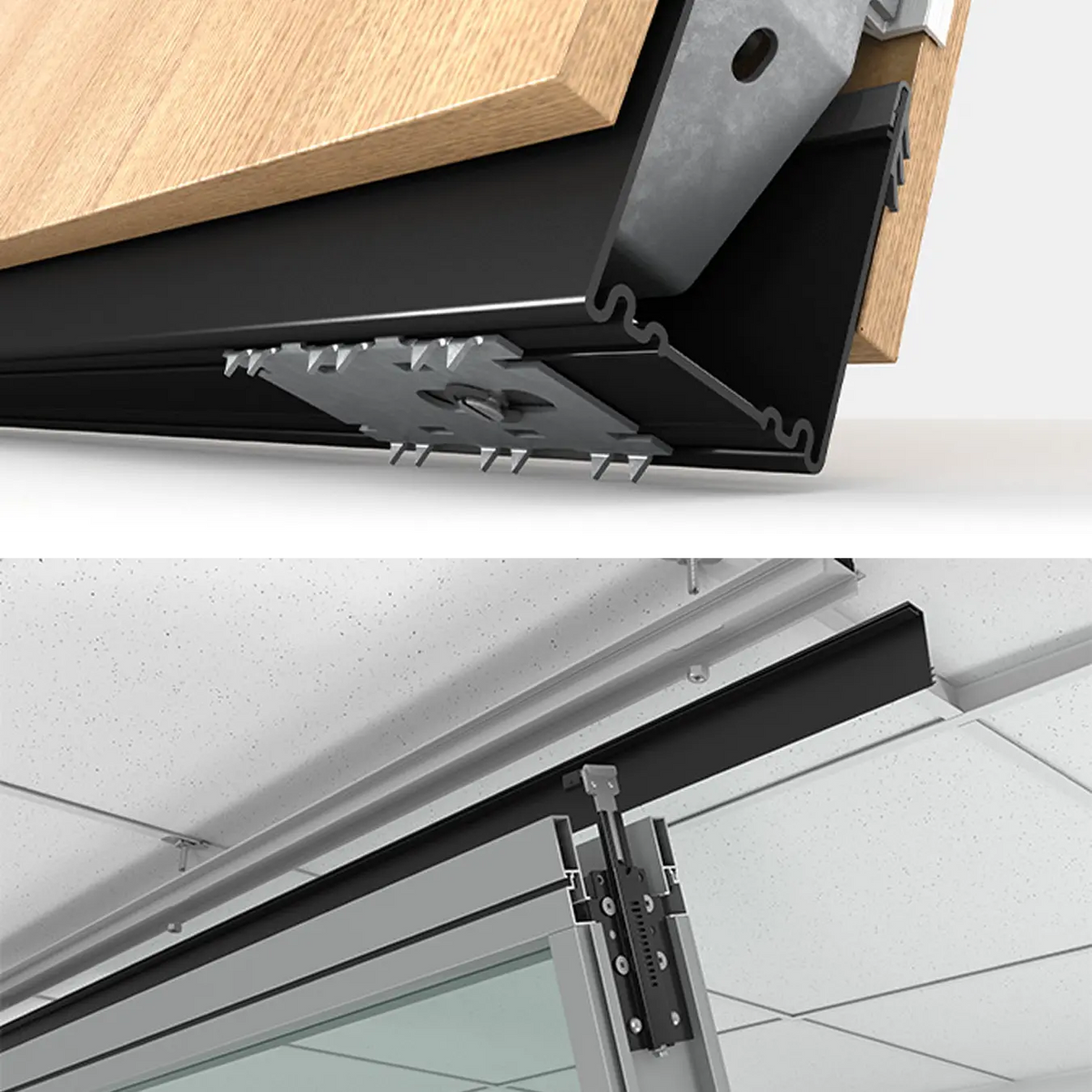

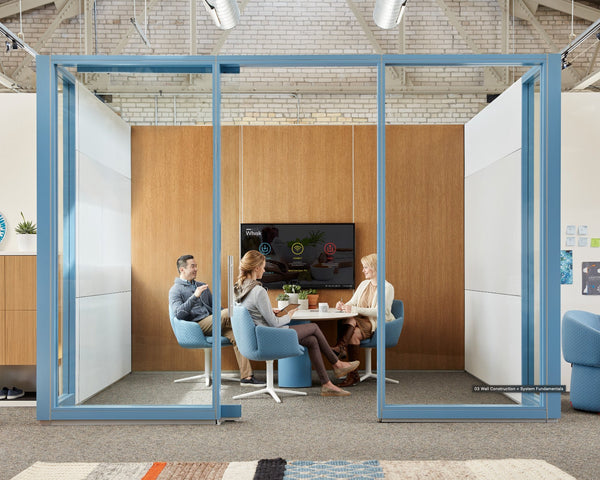

System Fundamentals

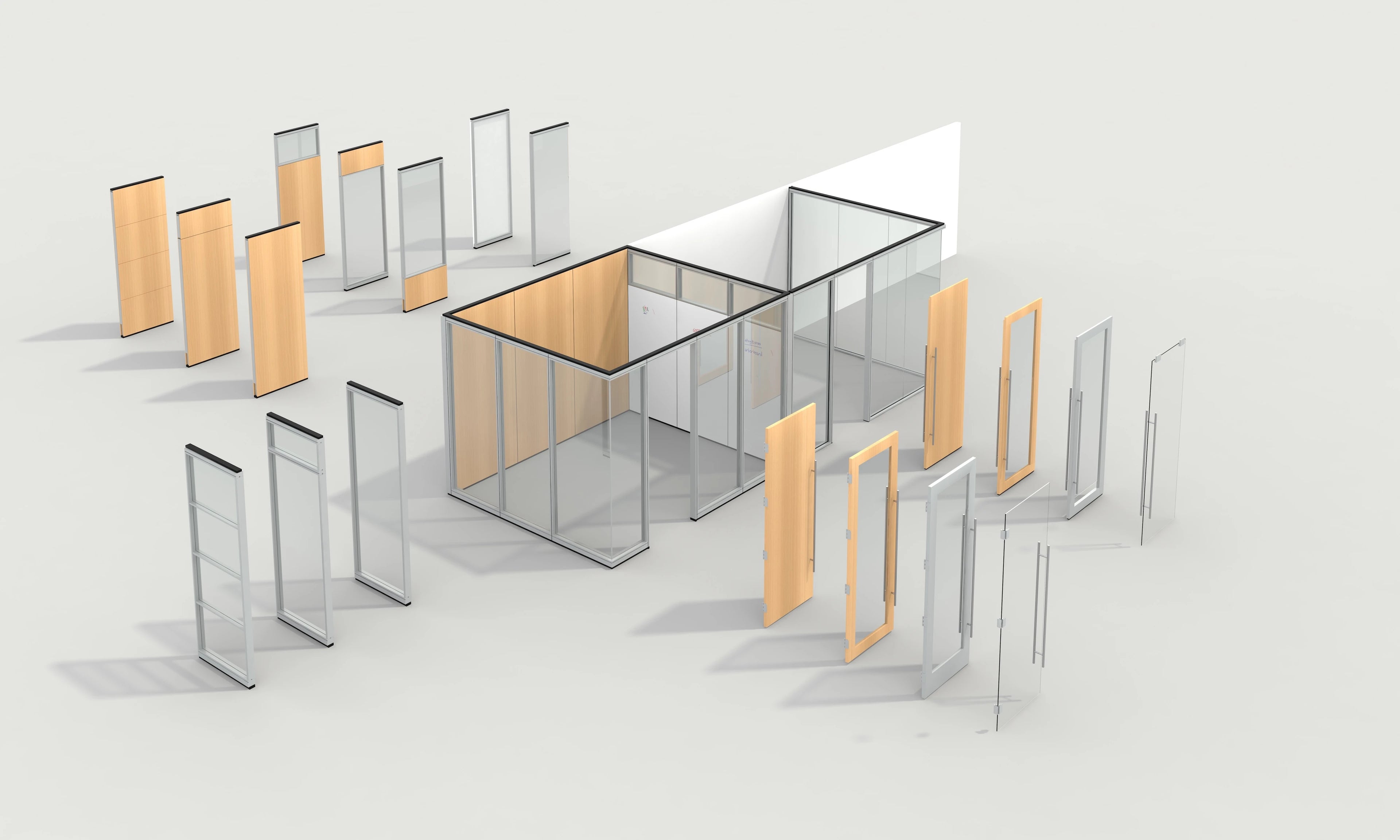

Non-marring ceiling and floor connections with 1-¾” (44mm) of upward adjustment support efficient installation and future reconfiguration. Panels can be all glass or a combination of glass and solids.
Individual unitized panels are non-progressive so a panel can be removed or replaced without disrupting the surrounding wall system.

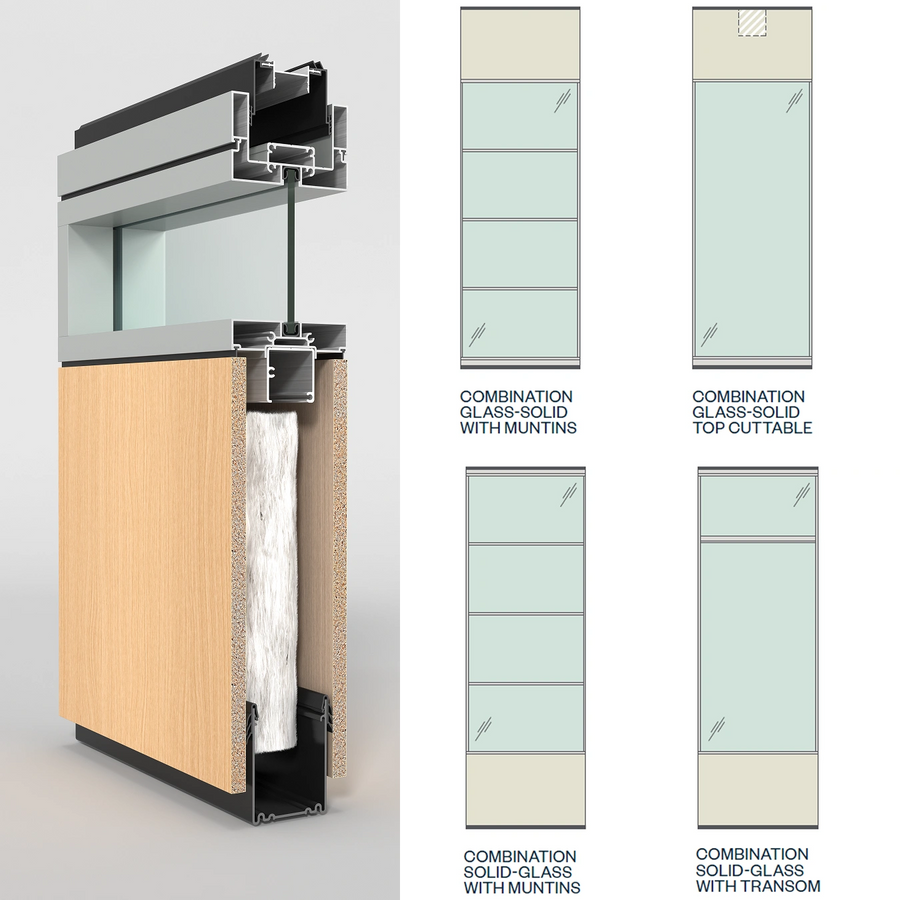

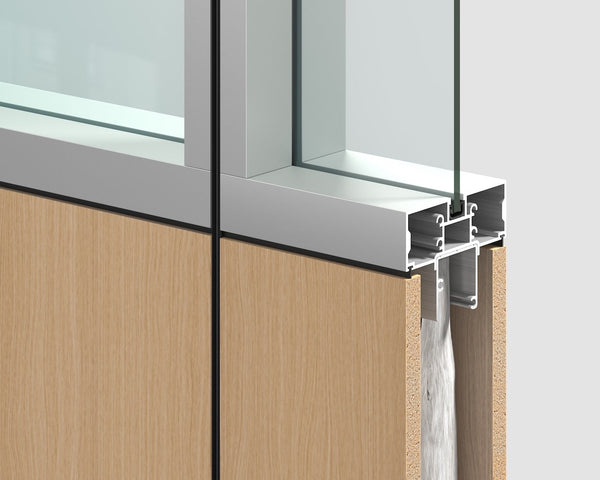

Combination Panels
- Select from an array of architectural options

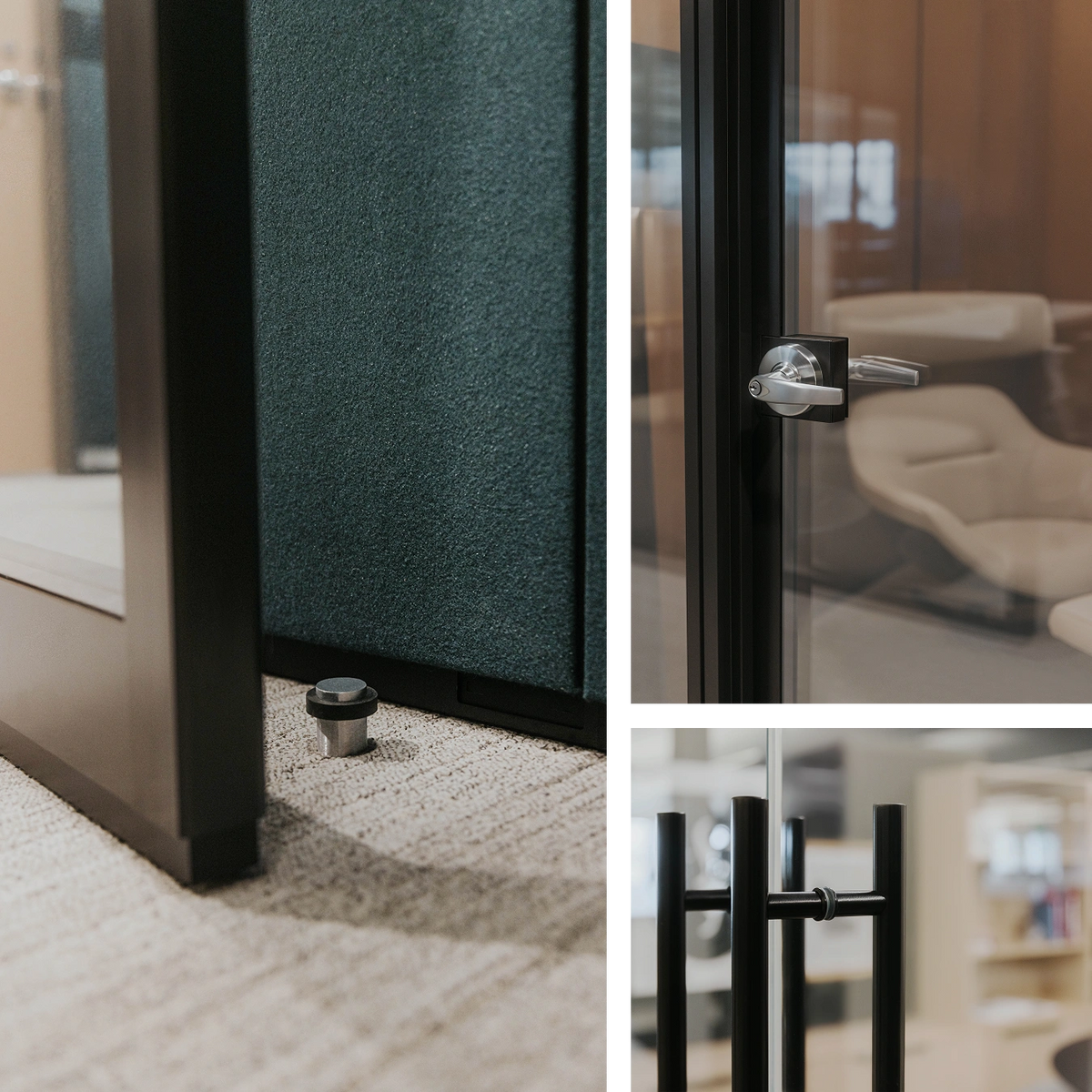

Doors
Choose among various door types, door leafs, and door handing. Both full height and transom options are available.

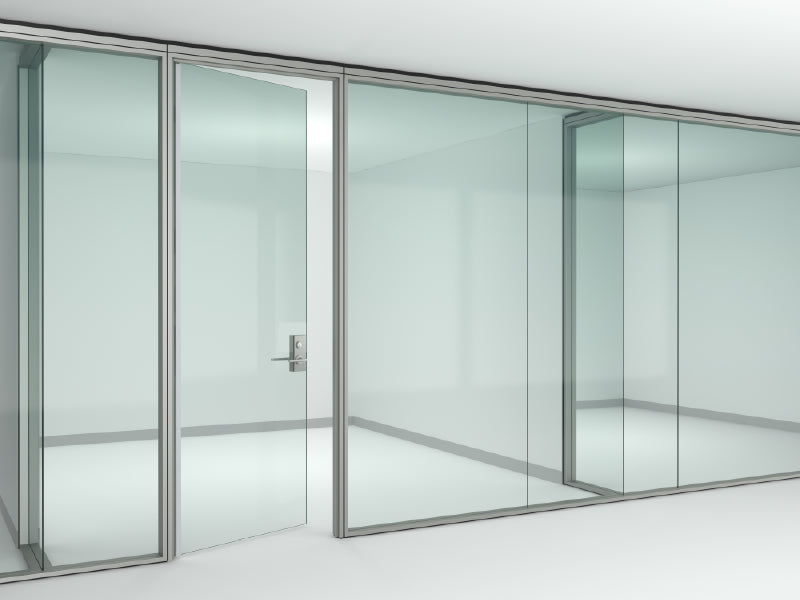

Glass Slab Swing Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 3/8” (10mm) tempered

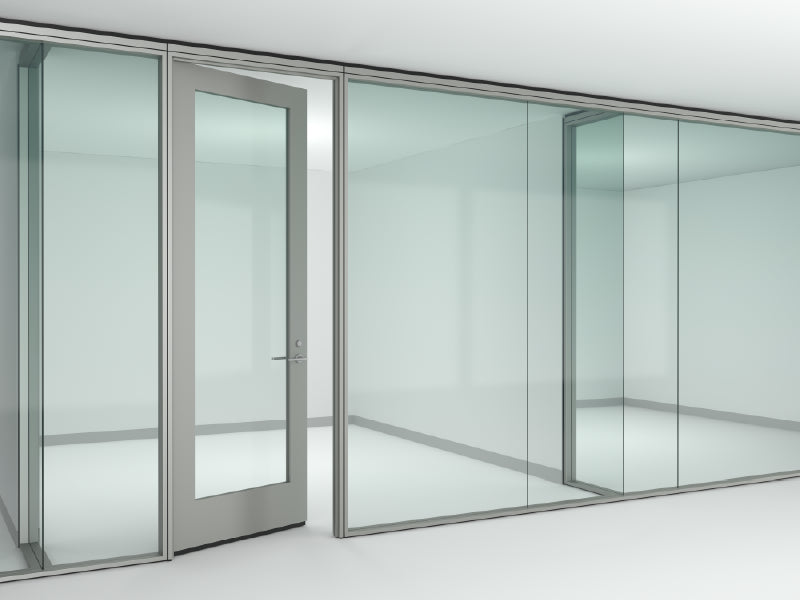

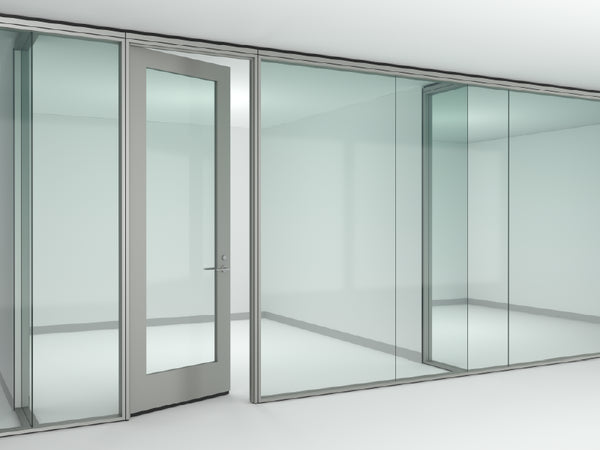

Metal Glazed Swing Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Metal doors are 1 3/4” (44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’(3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96”(1219mm - 2438mm)
• Glass Thickness: 1/4”-3/8” (6mm - 10mm) tempered or laminated glass

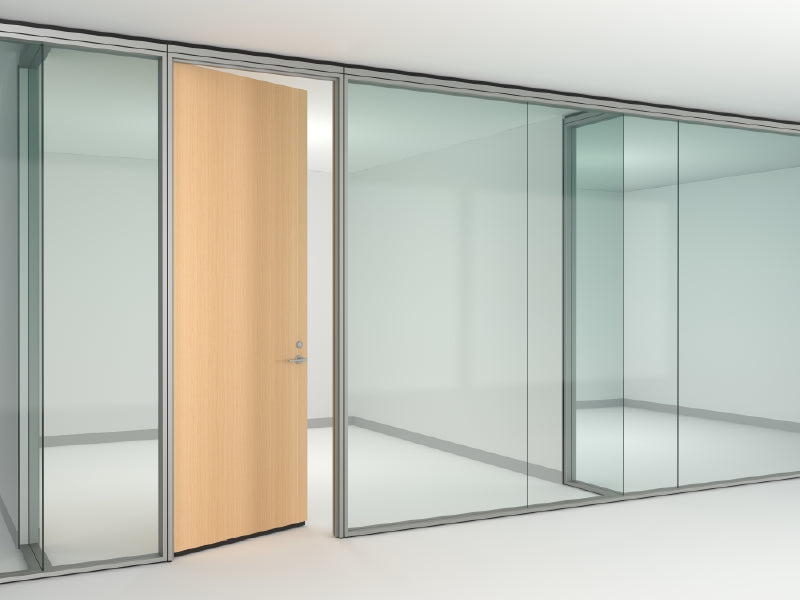

Wood Swing Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
Double Glazed Swing Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 3/16” (5mm) tempered
Wood Glazed Sliding Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96”(1219mm - 2438mm)
• Glass Thickness: 1/4”-3/8” (6mm - 10mm) tempered or laminated glass

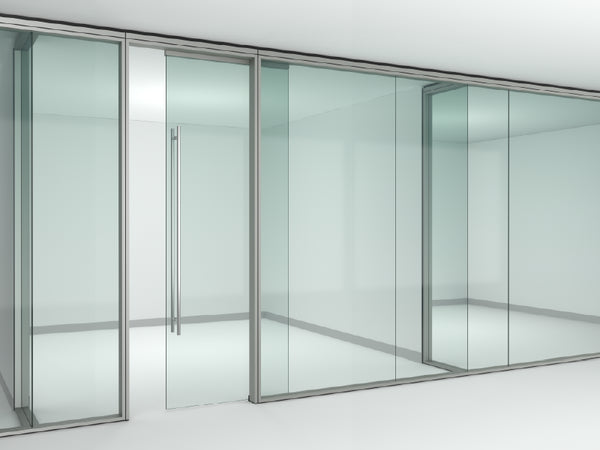

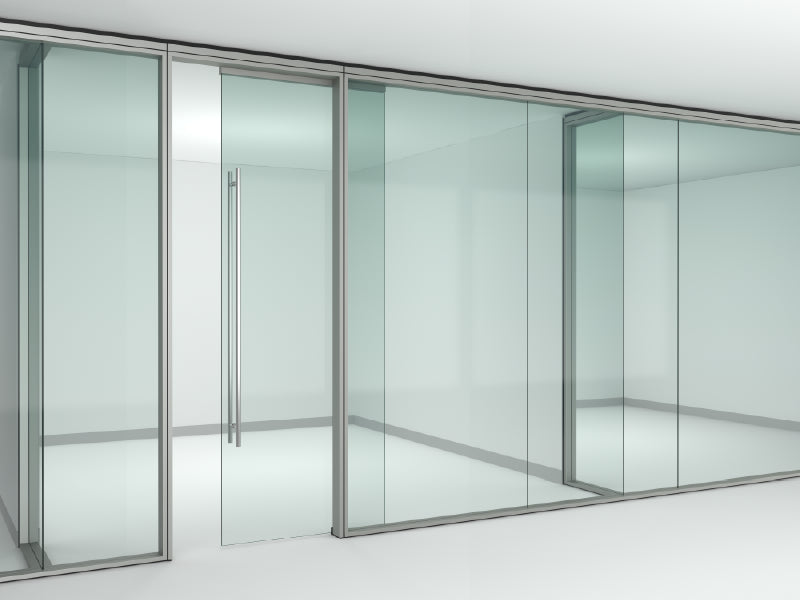

Glass Slab Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 3/8” (10mm) tempered

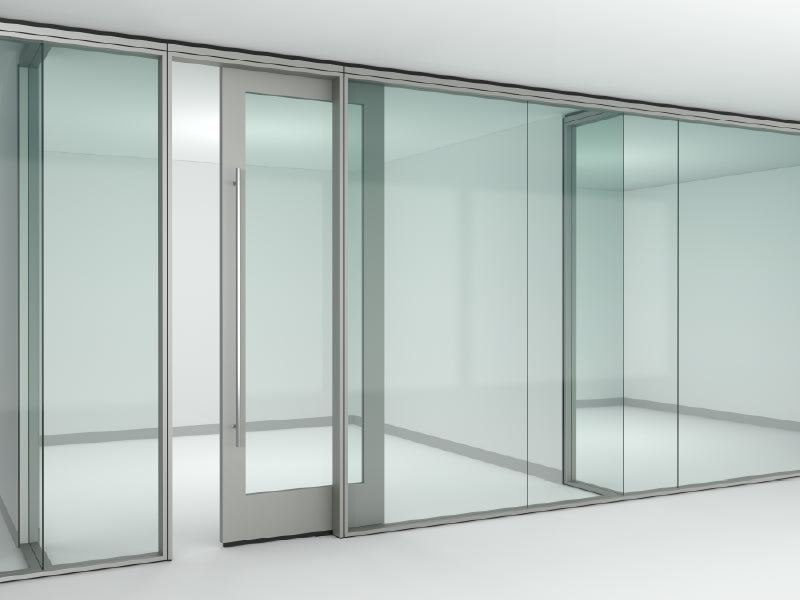

Metal Glazed Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Metal doors are 1 3/4” (44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 1/4”-3/8” (6mm - 10mm) tempered or laminated glass

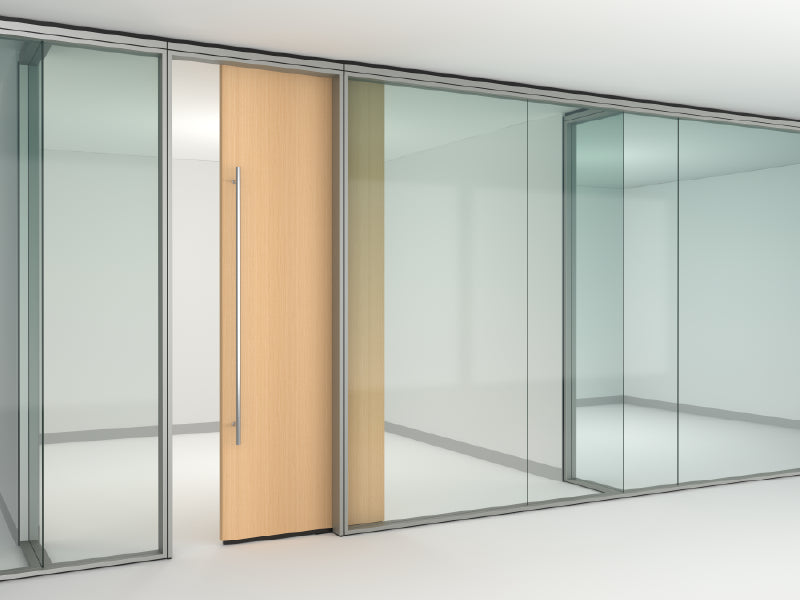

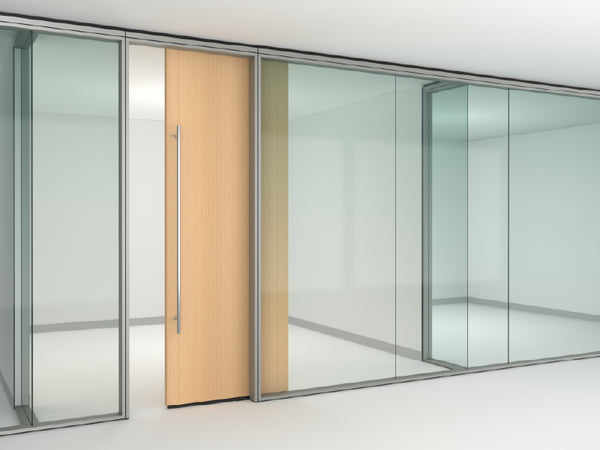

Wood Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)

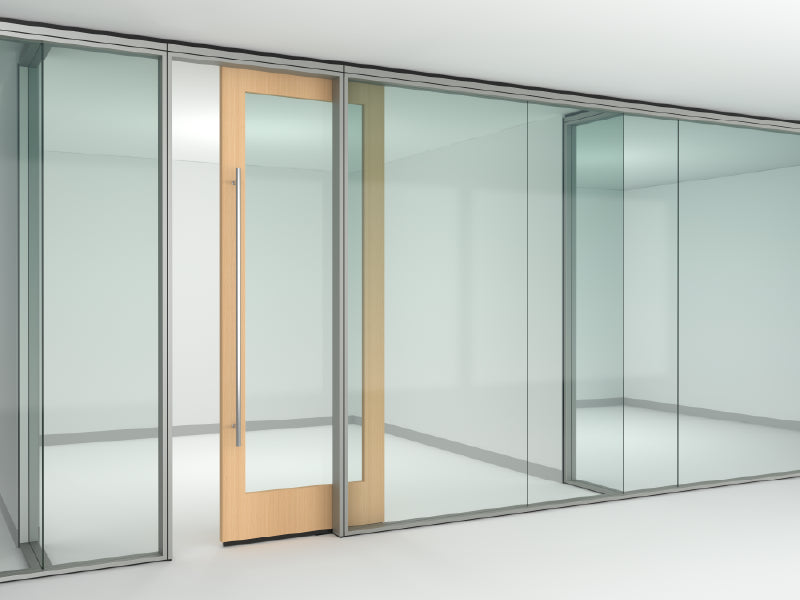

Wood Glazed Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 1/4”-3/8” (6mm - 10mm) tempered or laminated glass

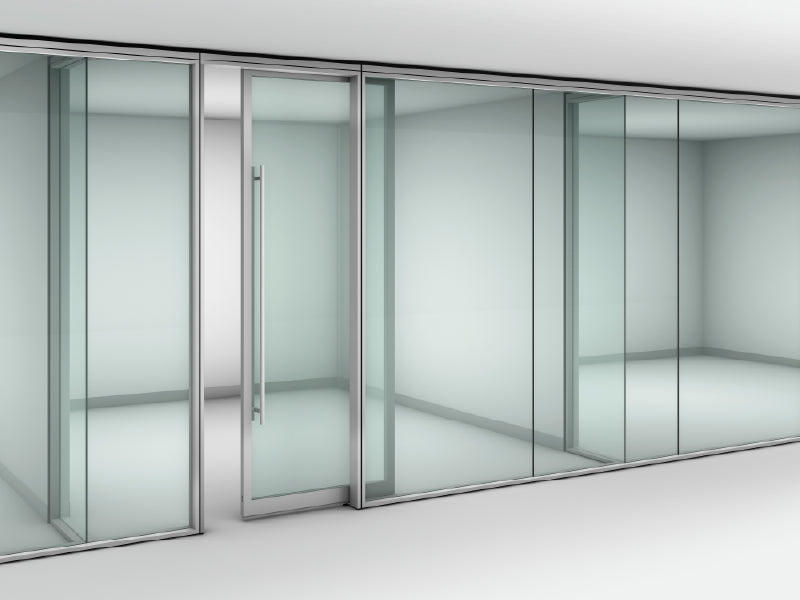

Double Glazed Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 3/16” (5mm) tempered

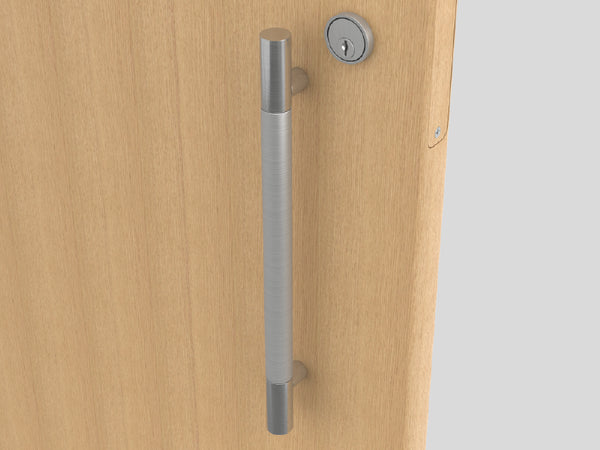

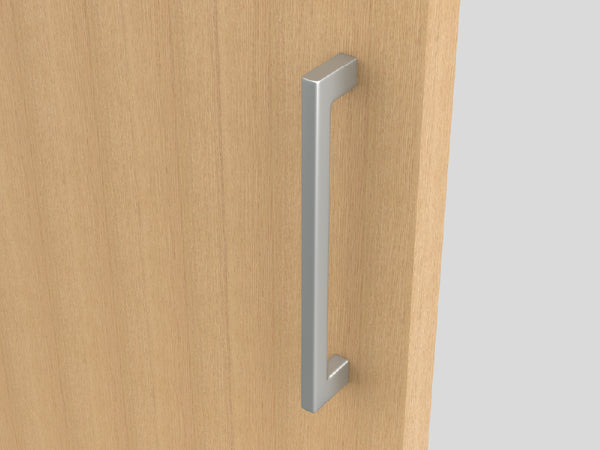

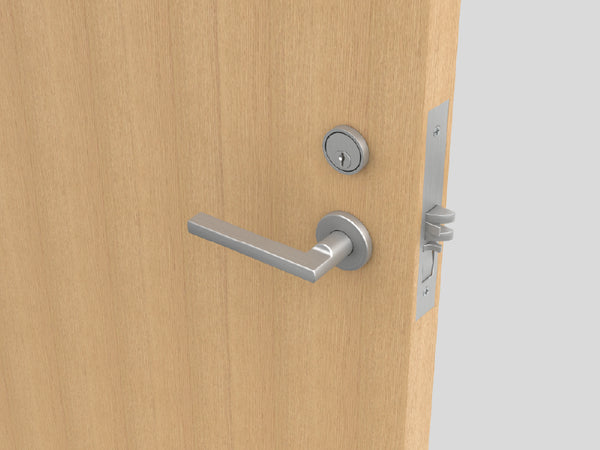

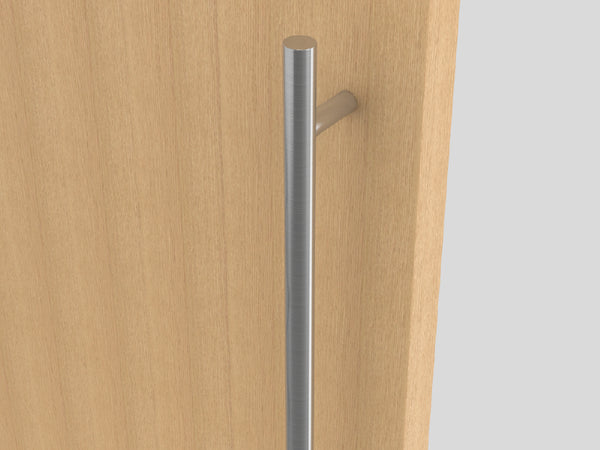

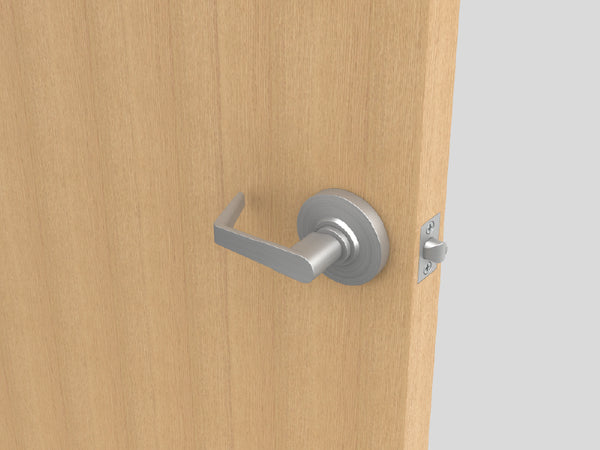

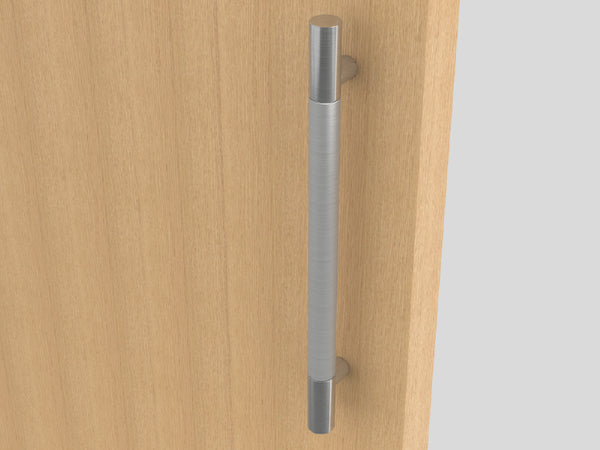

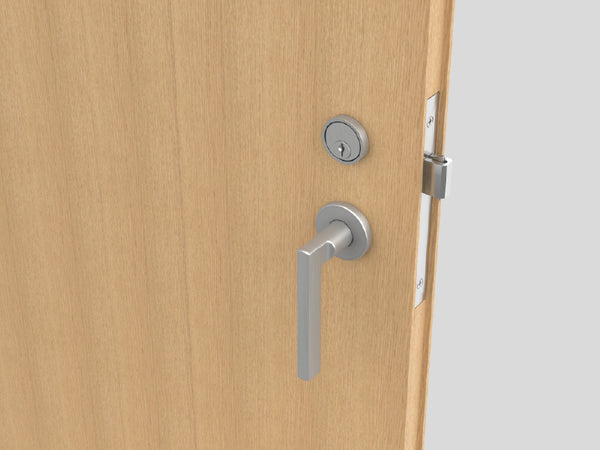

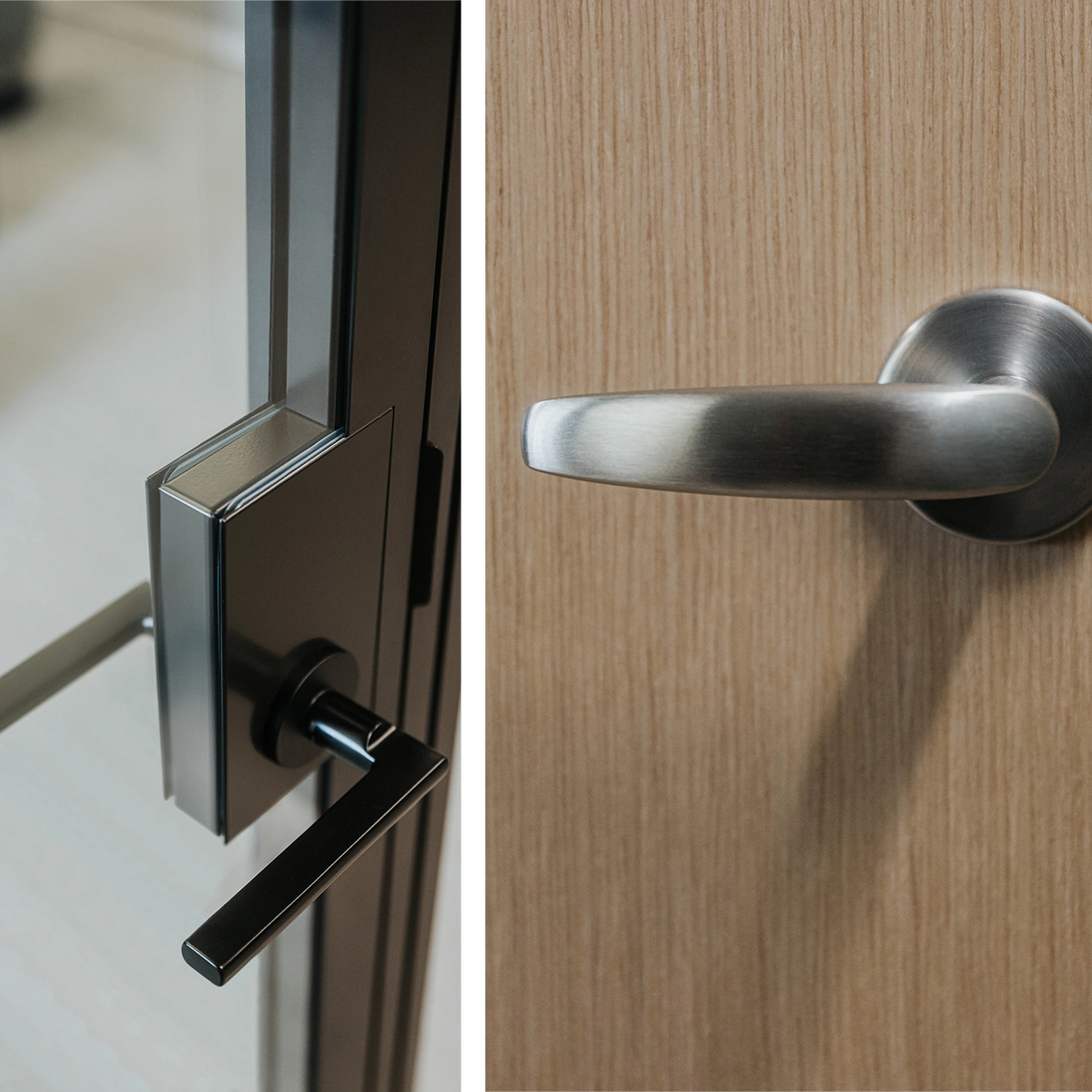

Hardware
Door hardware brings the final layer of function, finish, and user experience to the wall system.
Options are available to hand, secure, control, and protect doors.

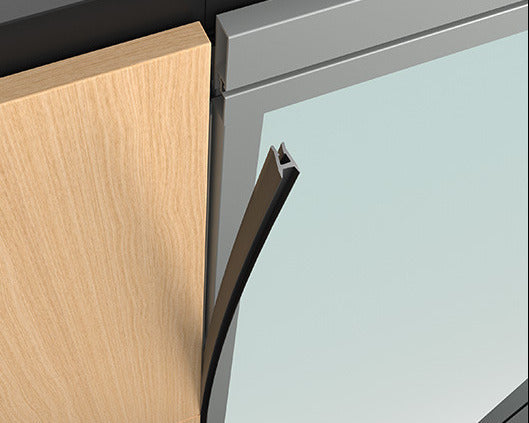

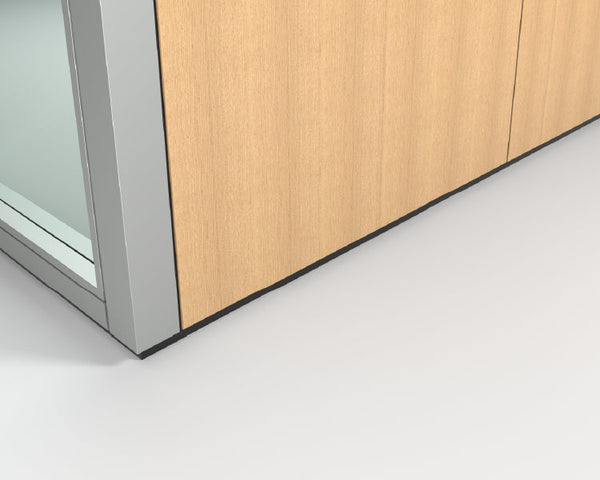

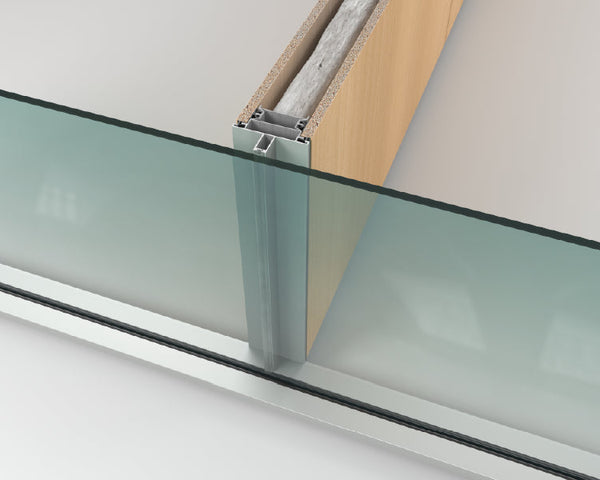

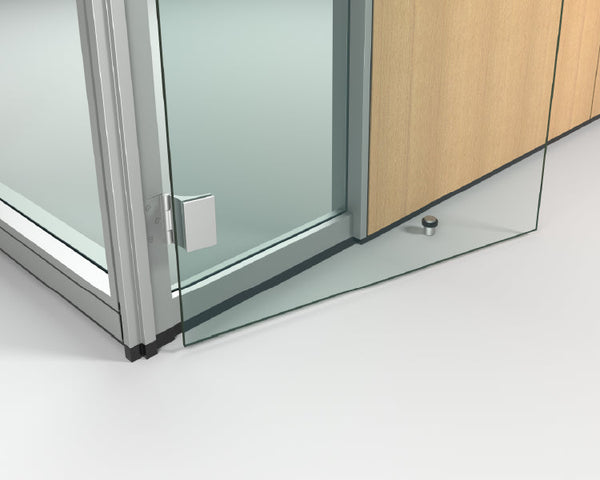

Transition Details
Thoughtful transitions maintain system continuity while meeting planning requirements.
Materials & Finishes
Select among a full architectural range of material types and finish options for visual continuity and project specific levels of expression.
Features & Performance
The 4" Platform Unitized Glass Walls System is engineered for performance—delivering dependable privacy, durability, and finish consistency. Designed for demanding interiors, it balances everyday performance with clean, disciplined architectural expression.
Compatible Products

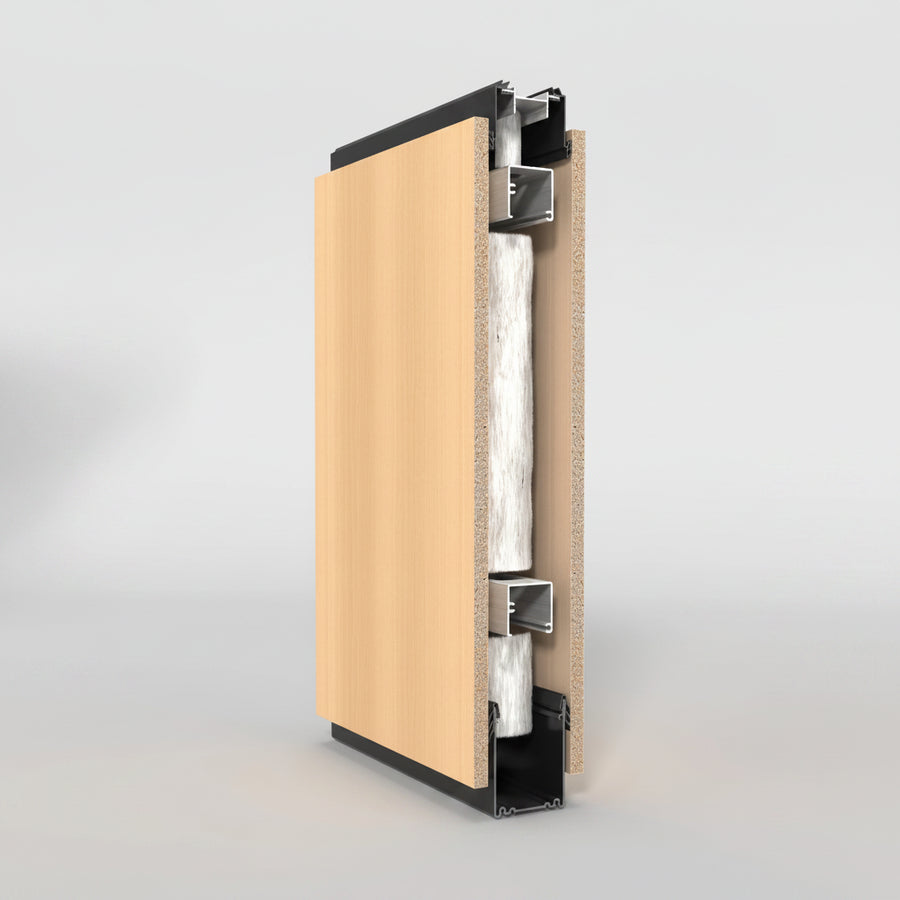

The 4” Glass Walls Platform works seamlessly with the 4” solid wall, giving project teams greater freedom to balance privacy, transparency, acoustic performance, and light.
Project Gallery

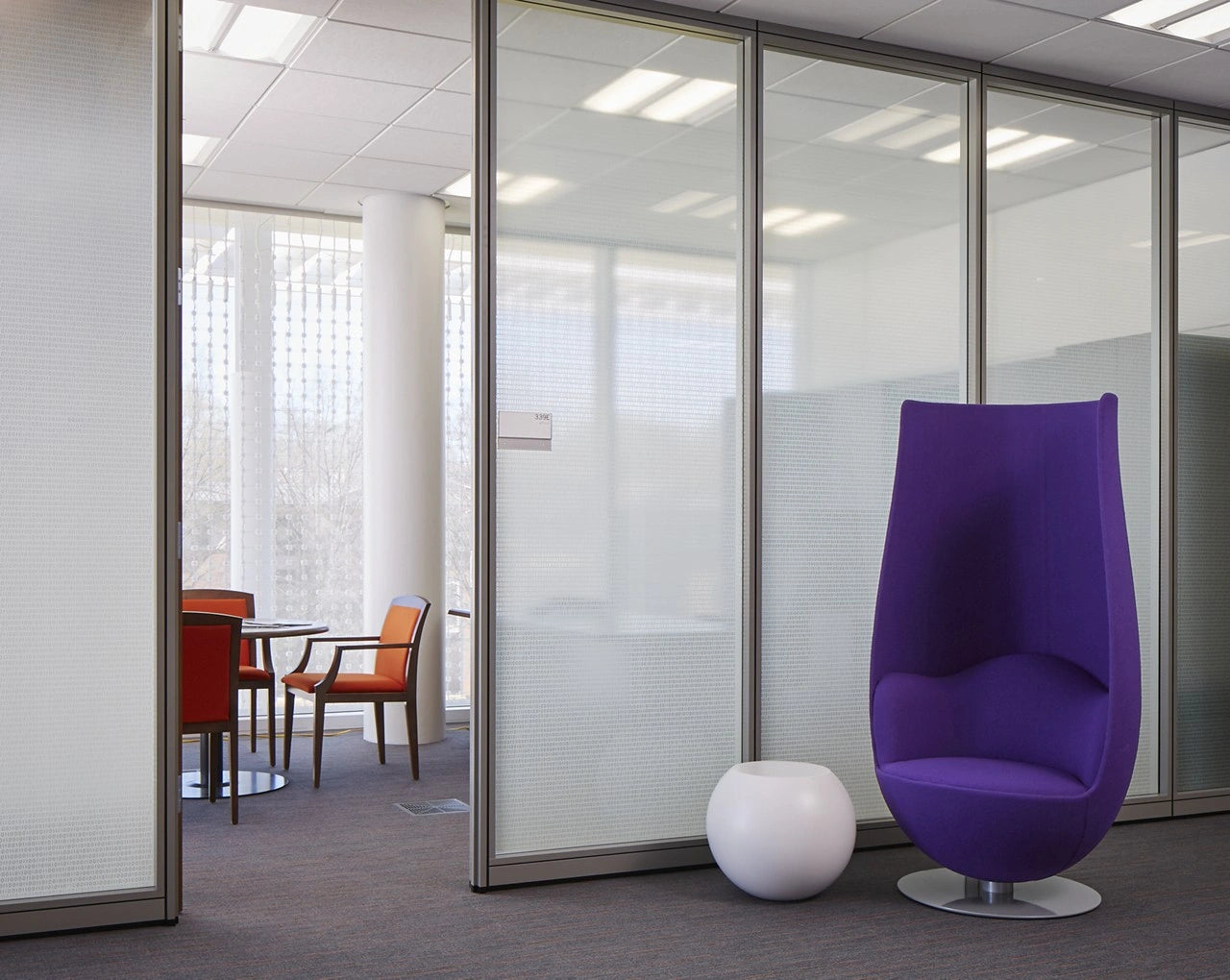

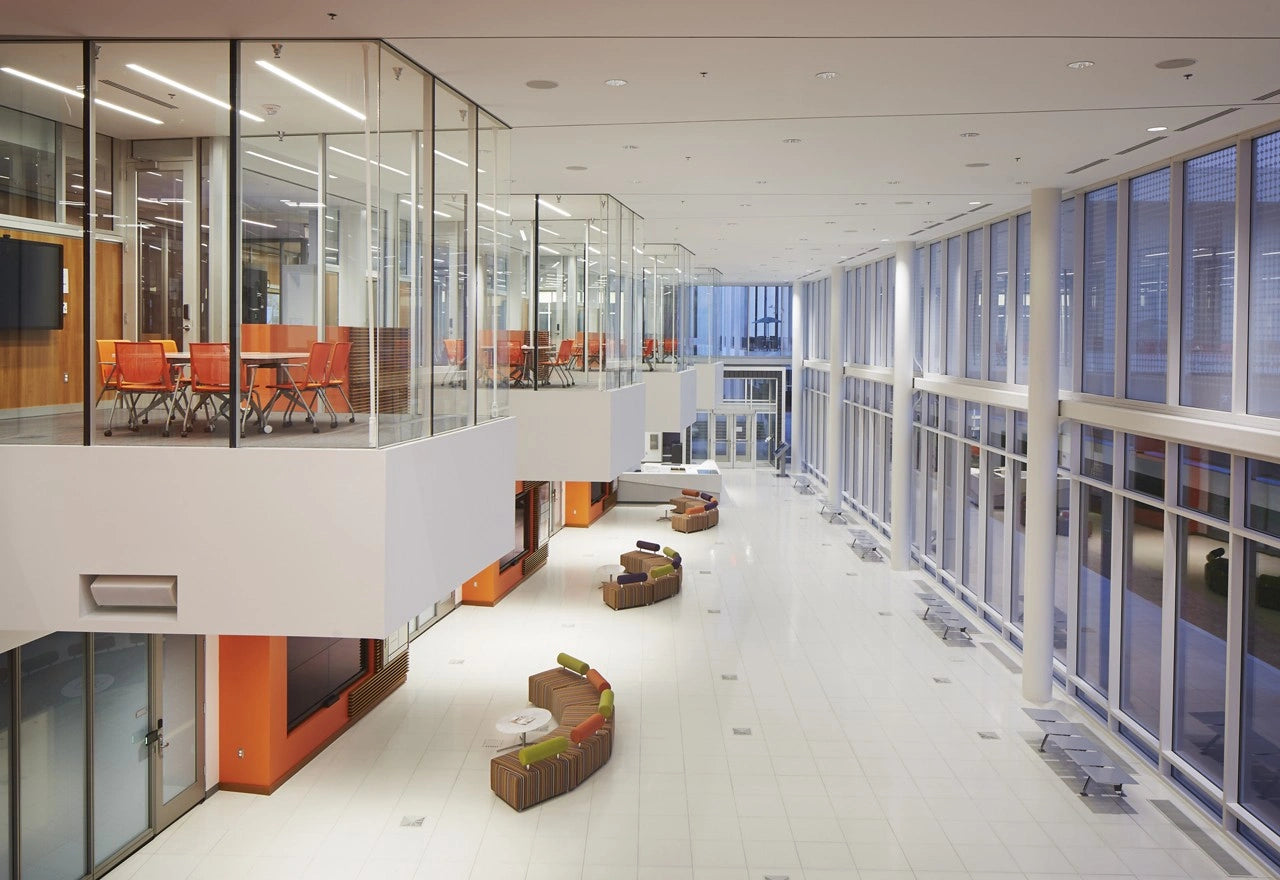

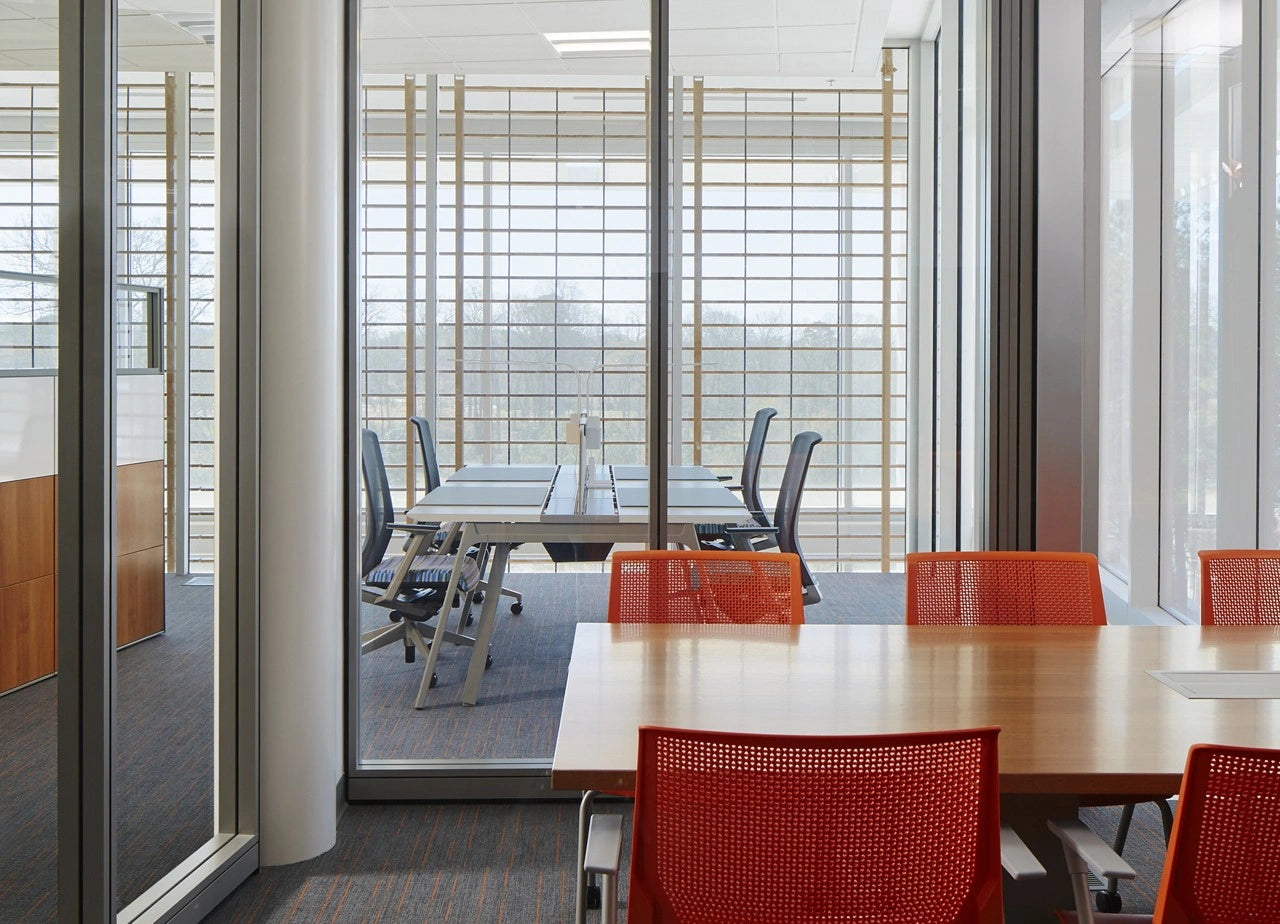

Clemson University Clemson, South Carolina

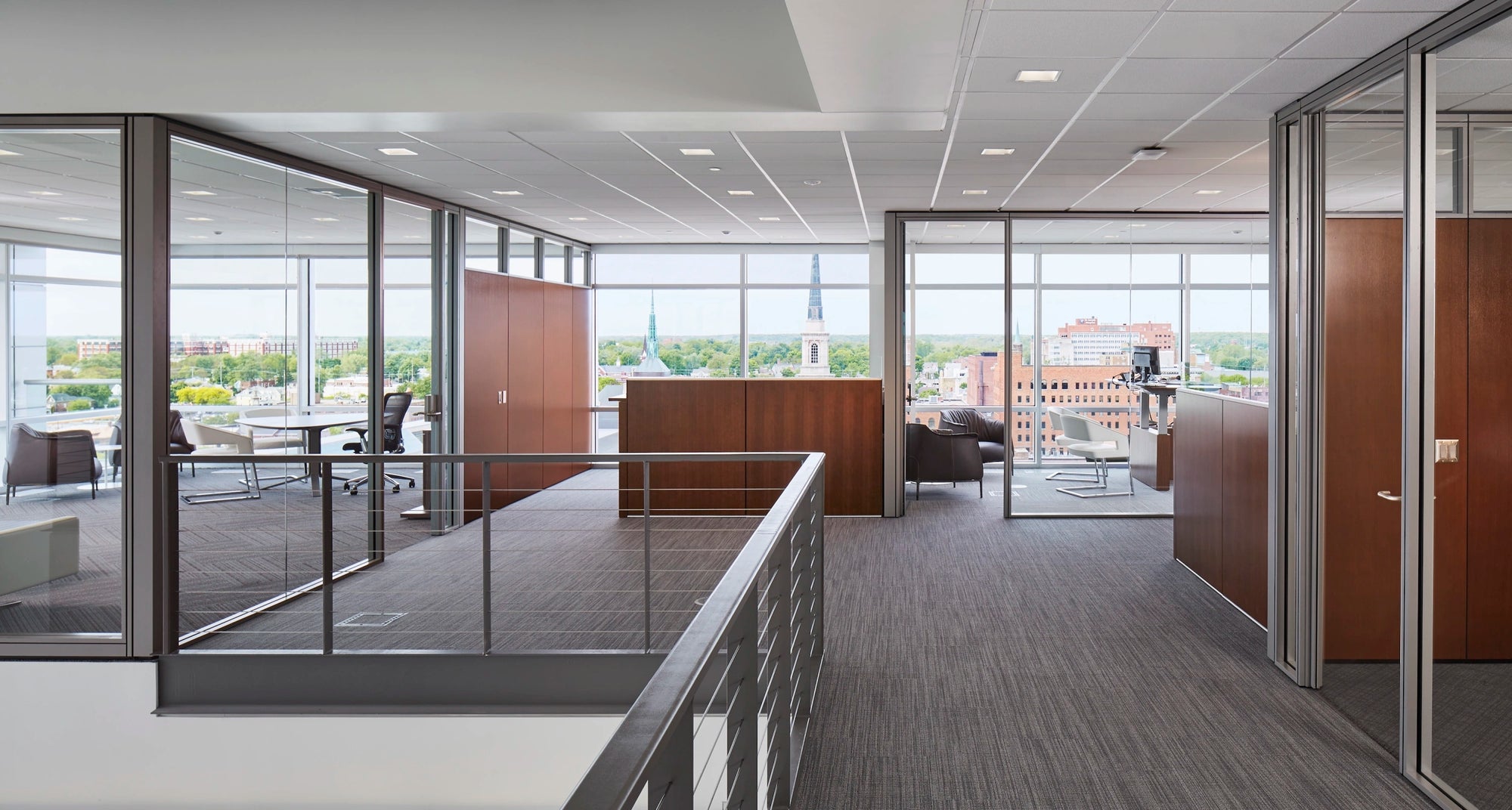

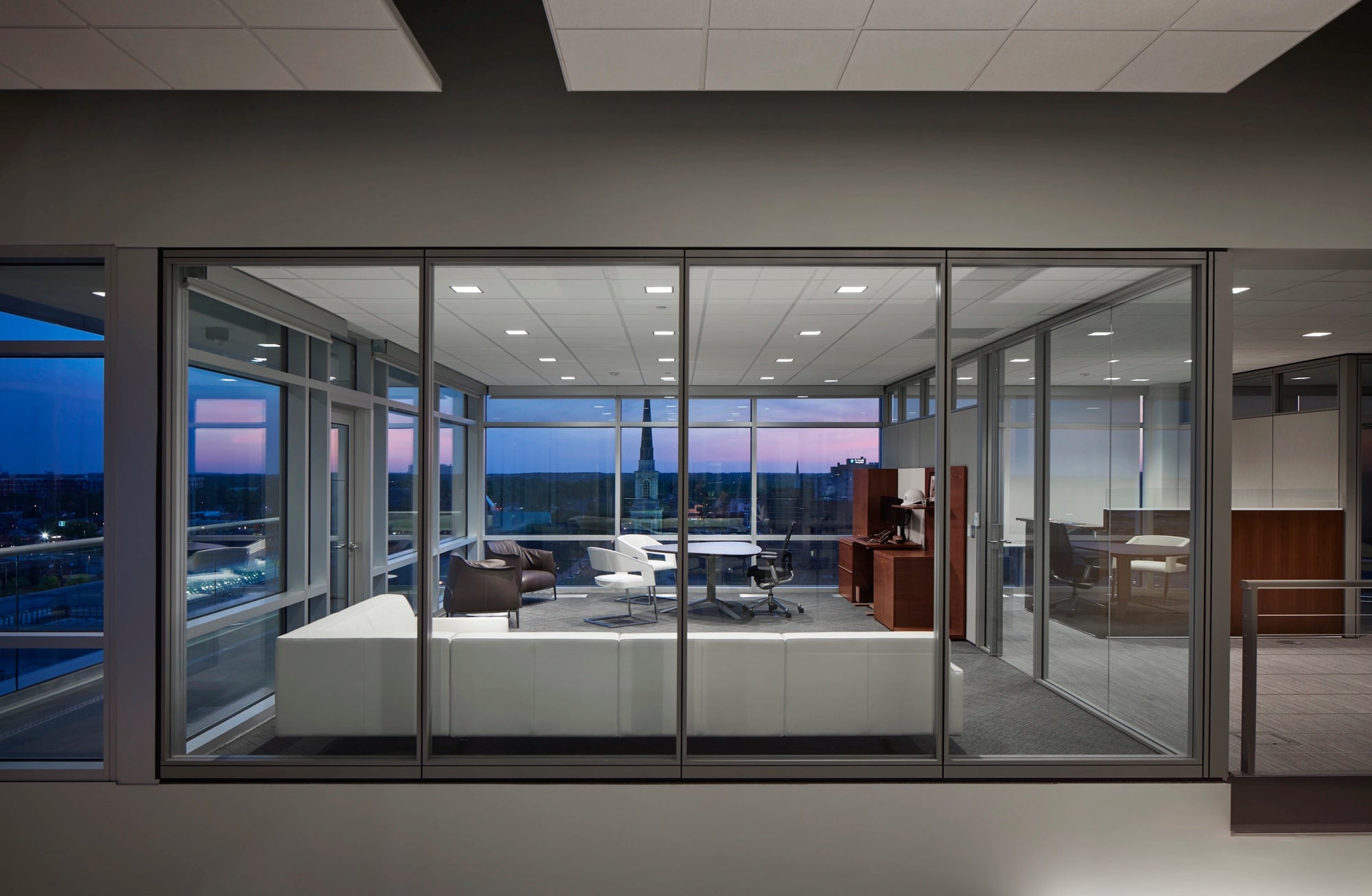

Ash Brokerage Fort Wayne, IN

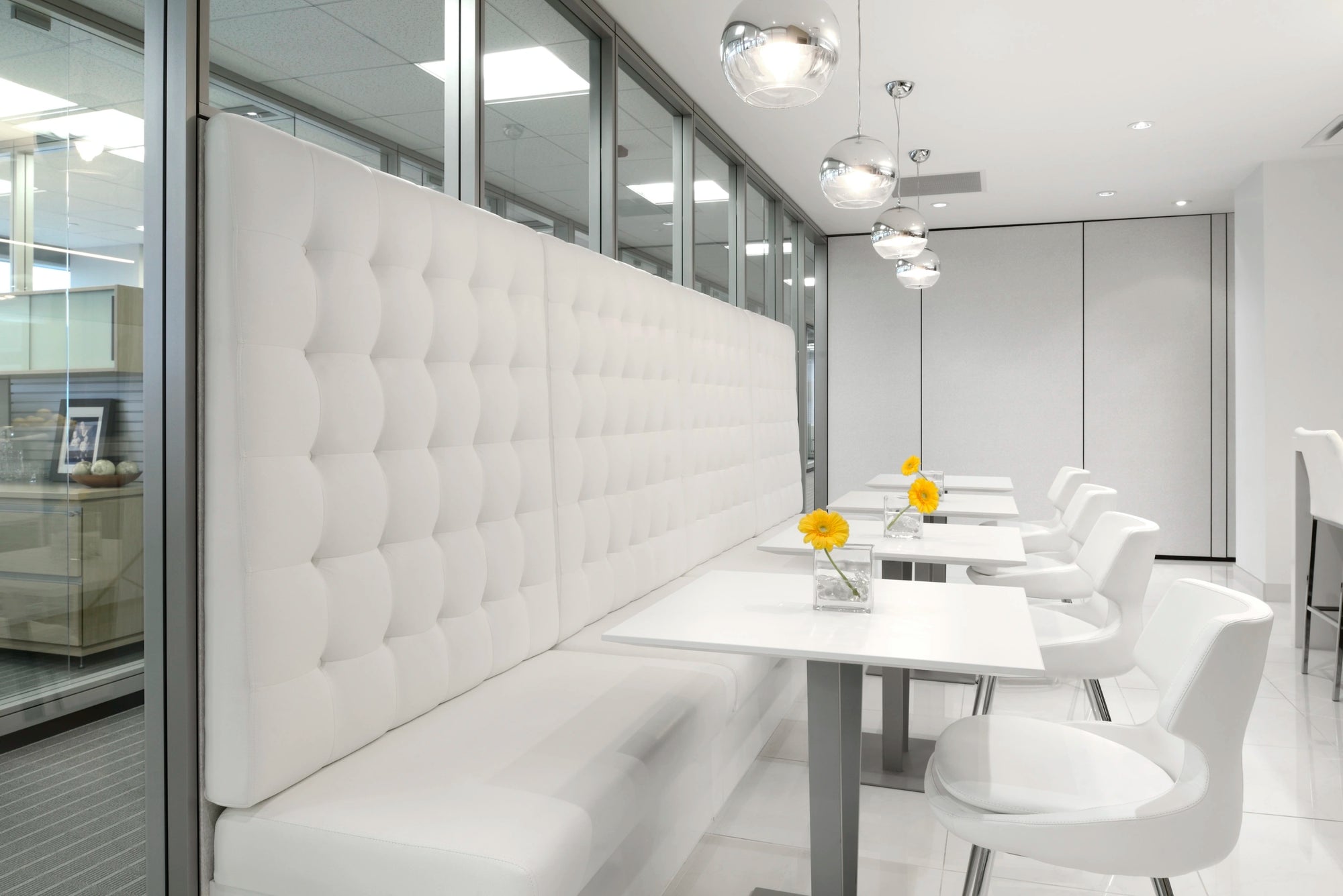

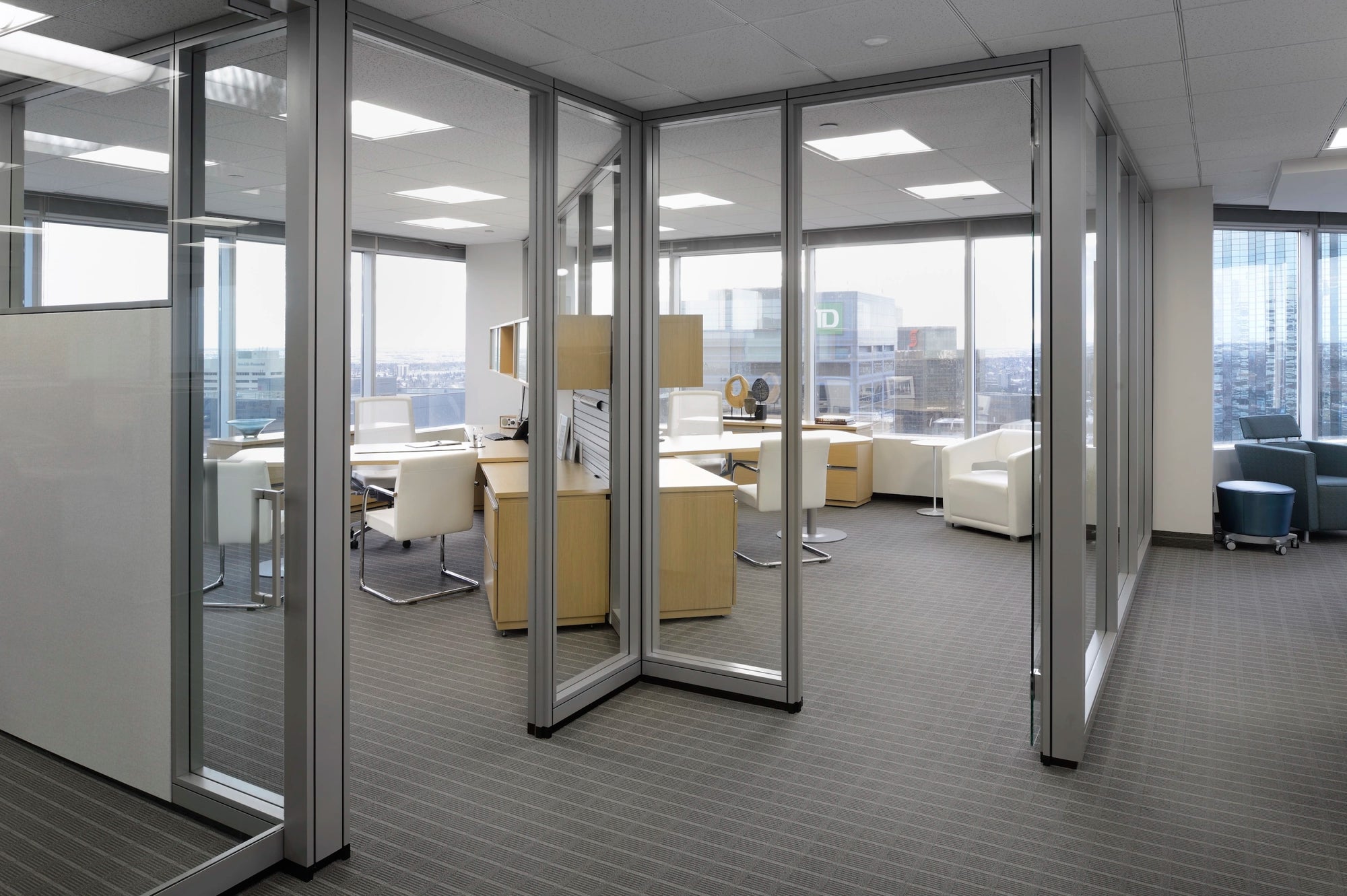

Avison Young Toronto, Canada

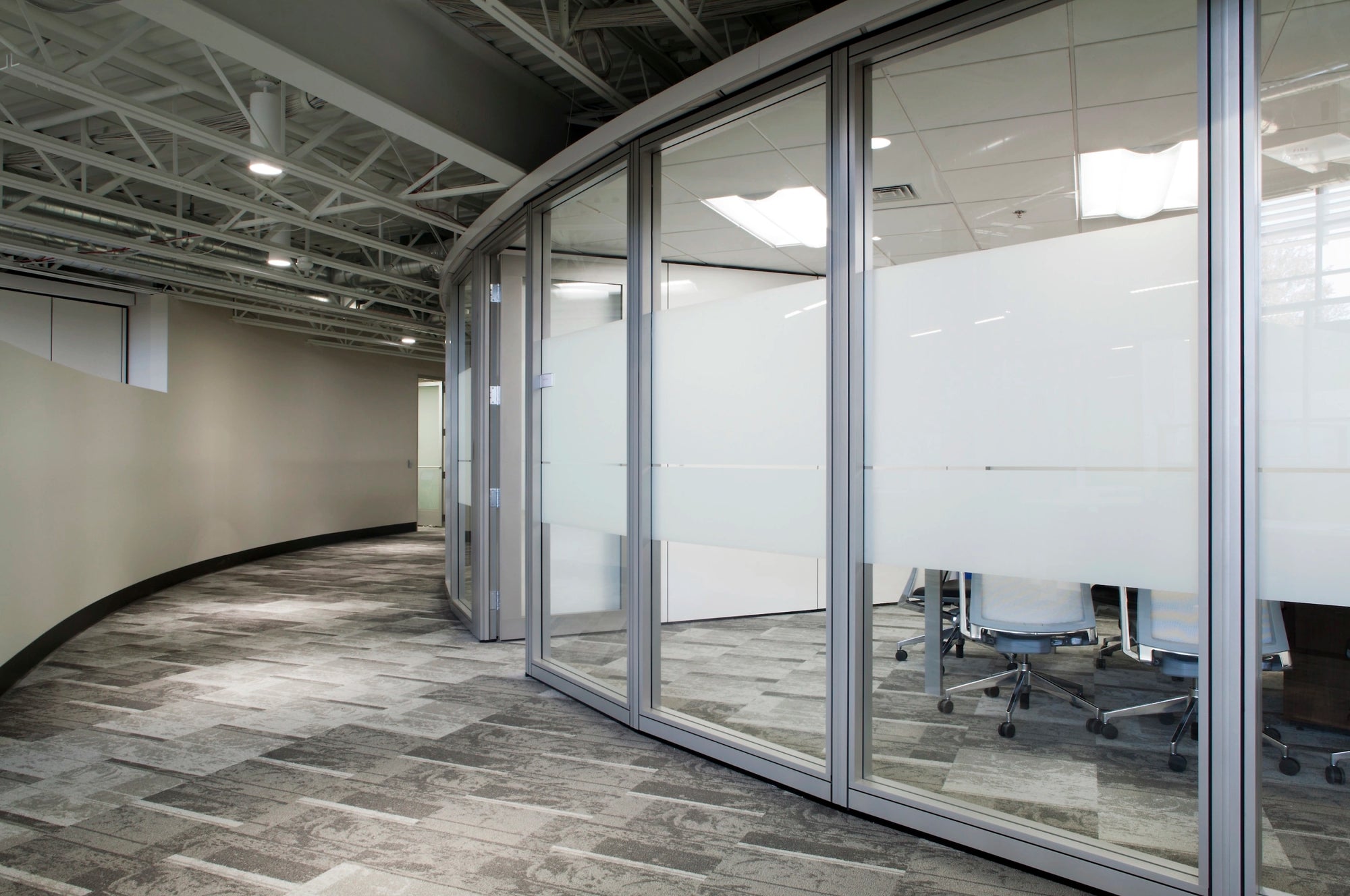

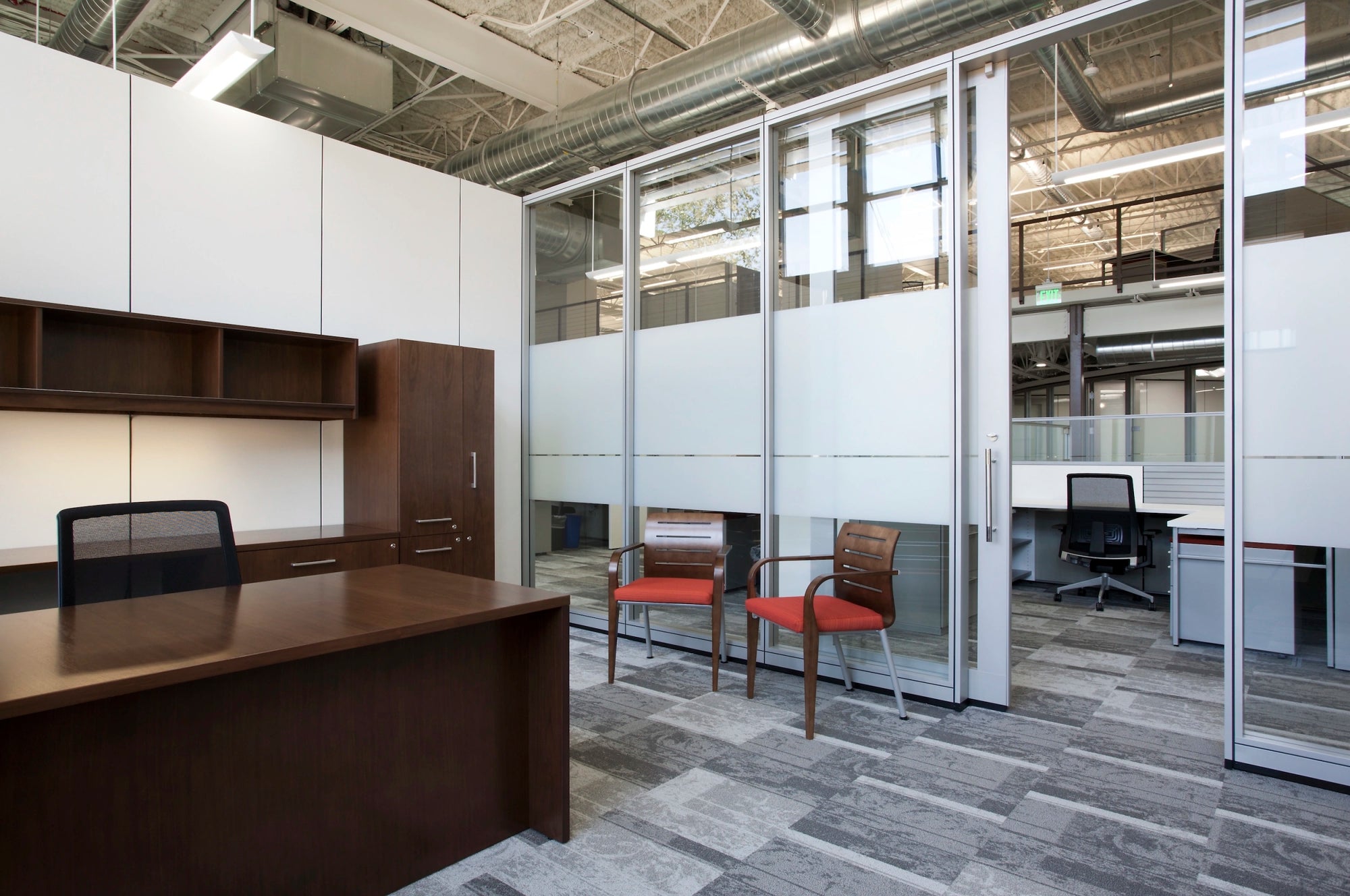

Ingersoll Rand Davidson, North Carolina

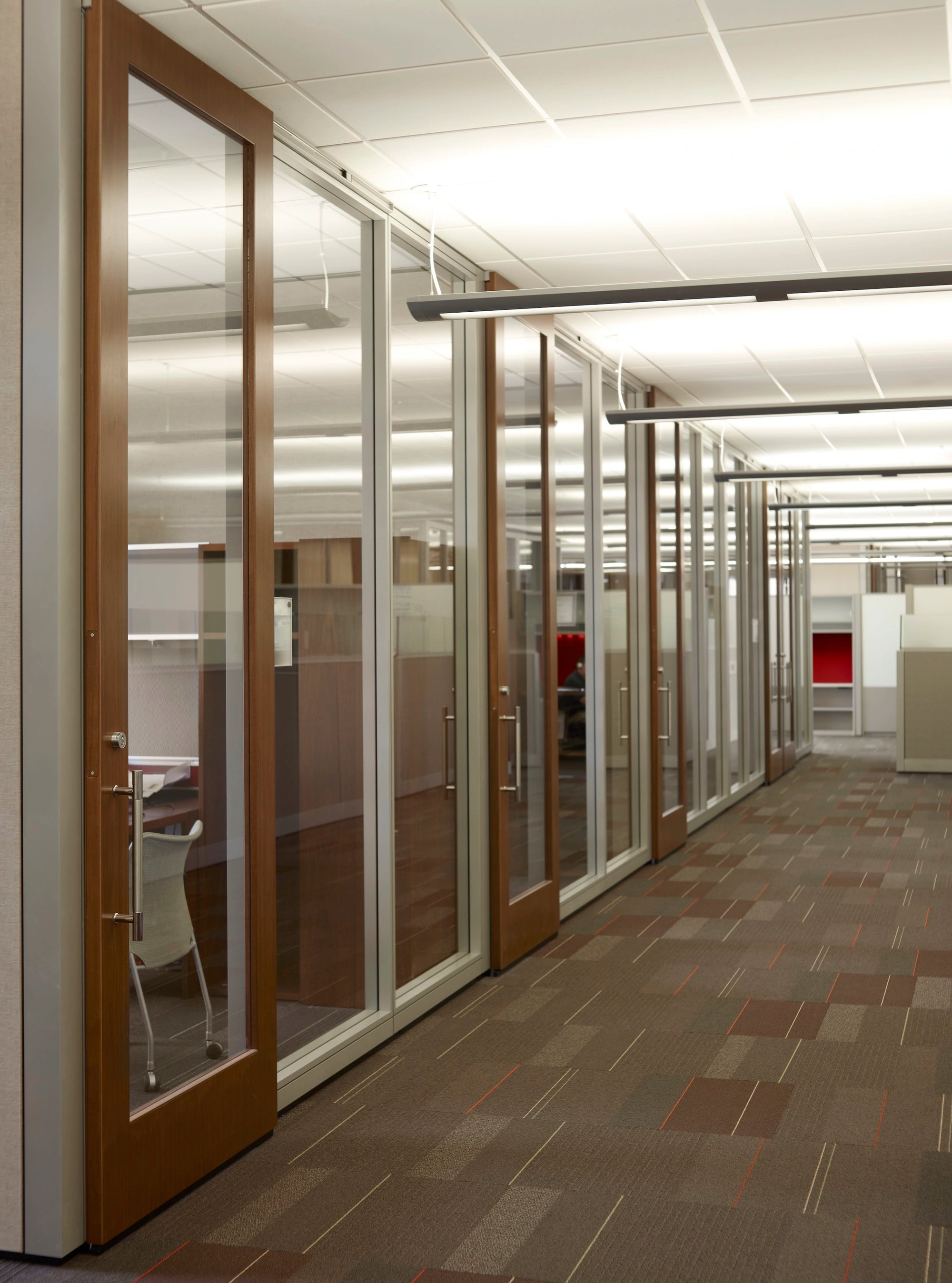

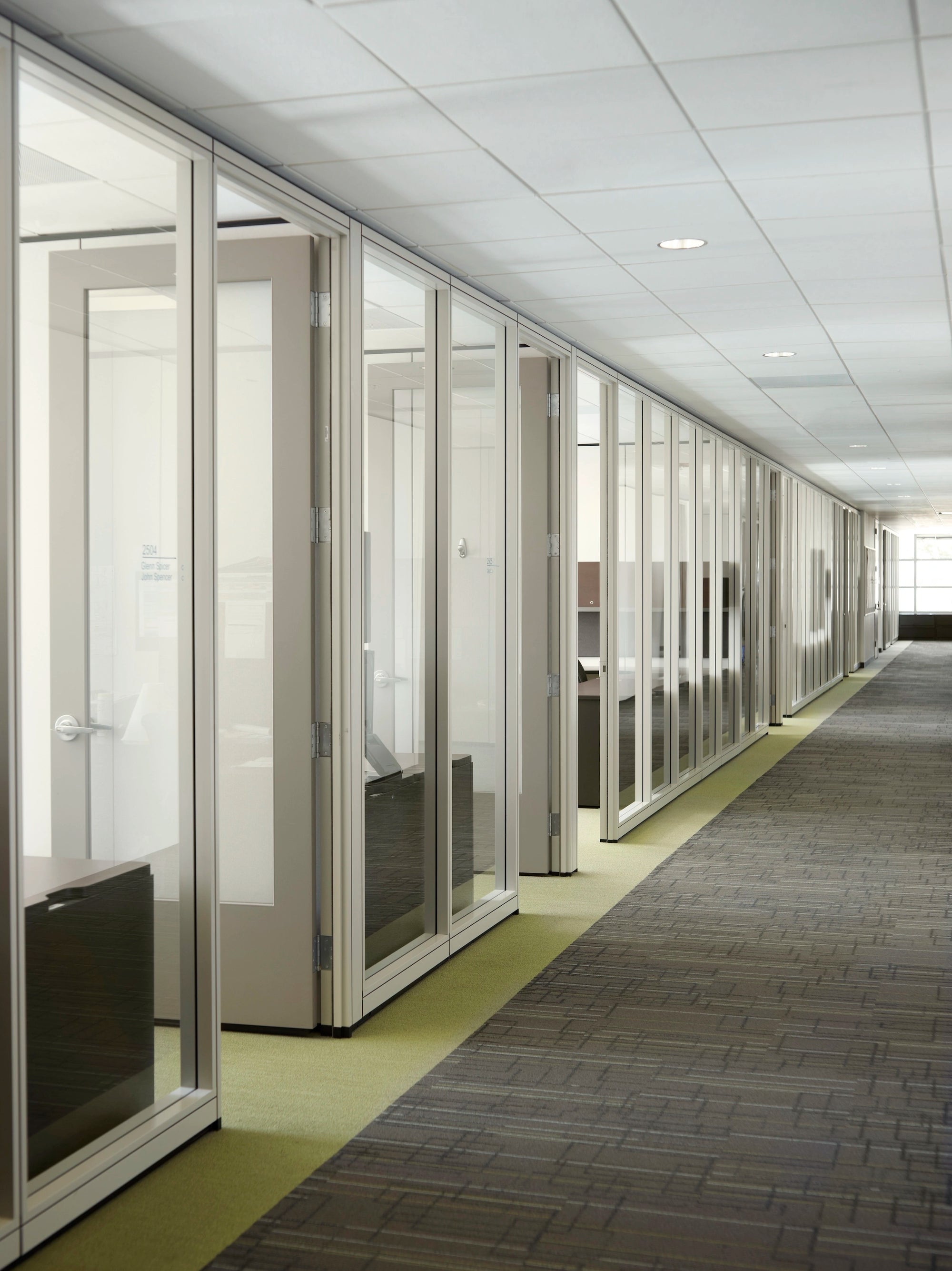

Southwestern Energy
