4-1/2” Platform
4SPACE Solid Walls

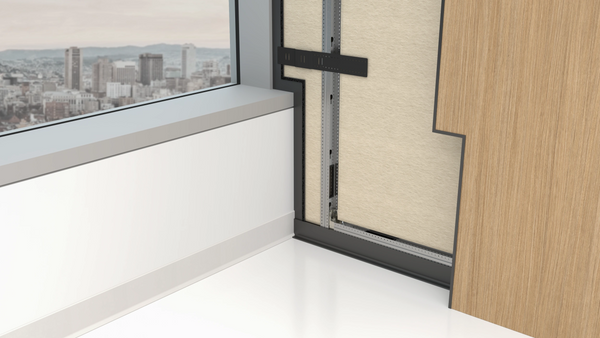

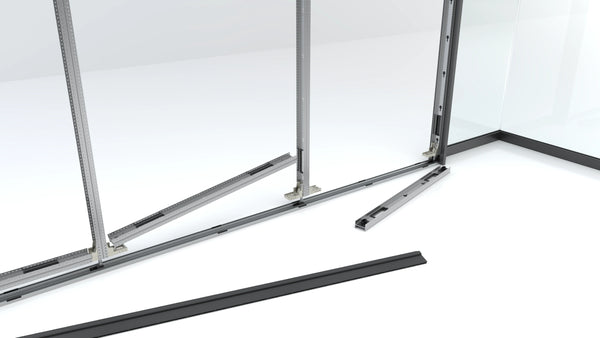

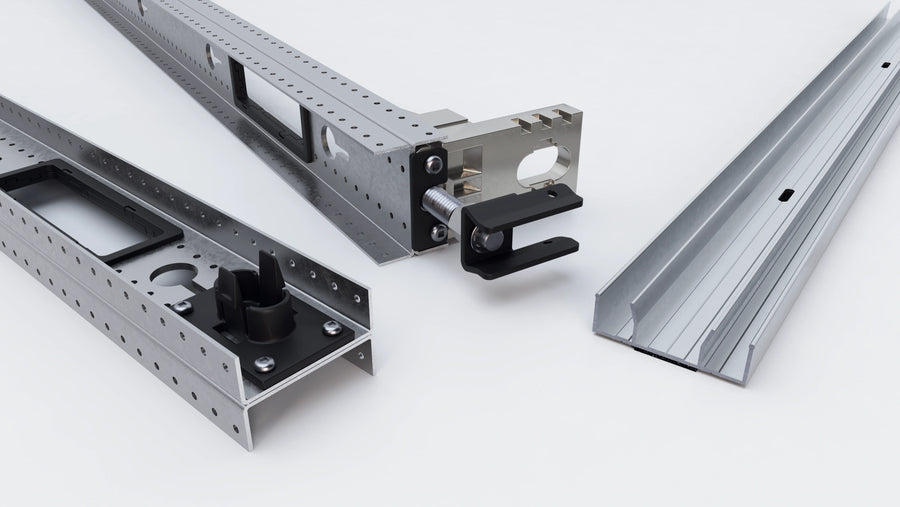

• Solid wall framing components are pre-cut and factory-prepped for efficient installation

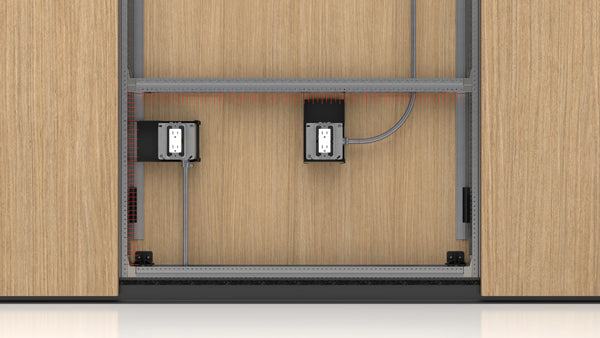

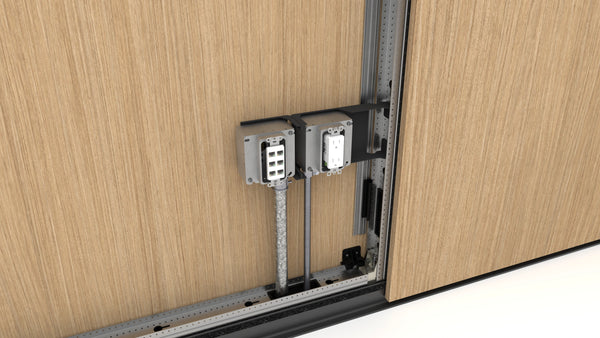

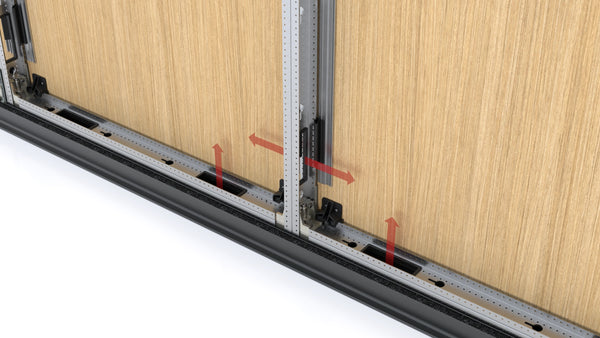

• Vertical and horizontal studs are pre-punched for power and data distribution

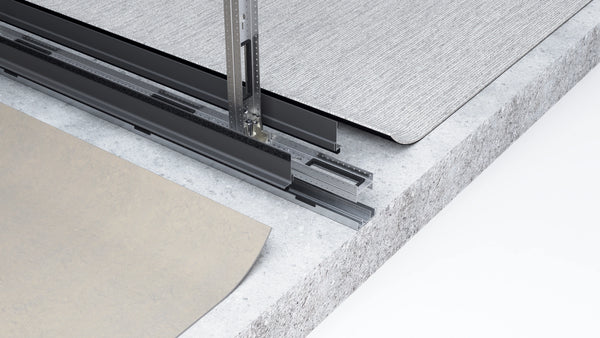

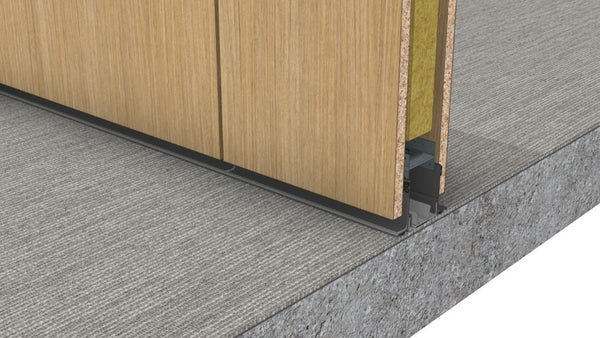

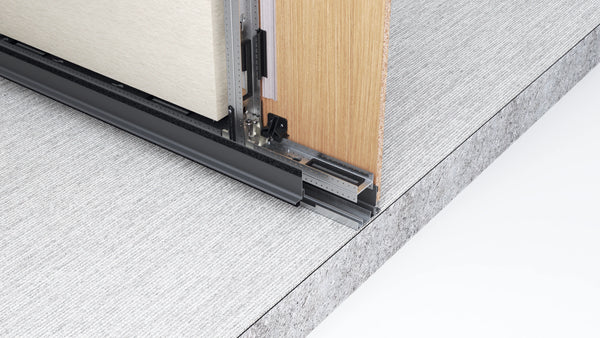

• Floor and ceiling tracks provide a simple connection to base building conditions

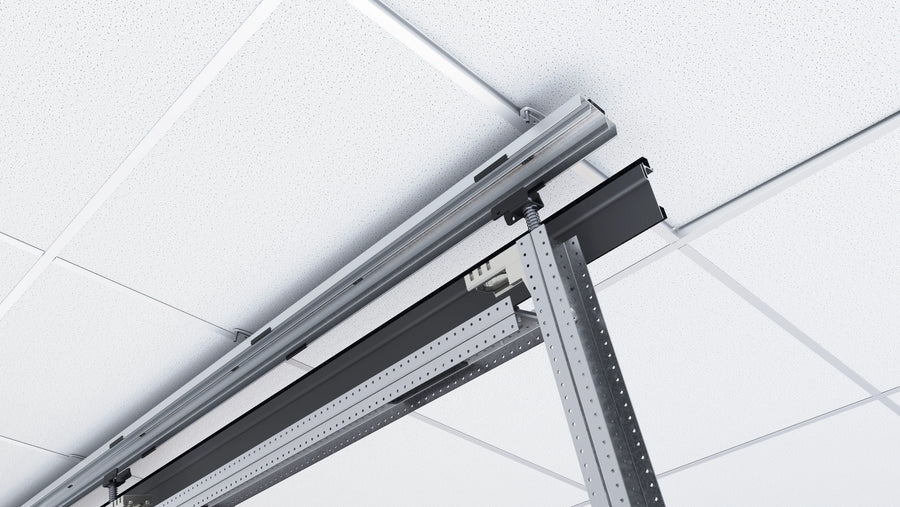

• Ceiling tracks are secured to ceilings with non-marring grid clips and/or screws

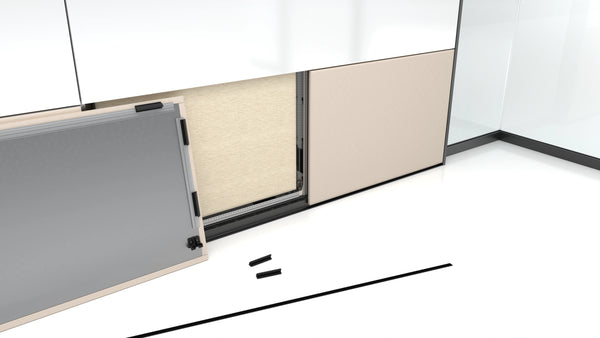

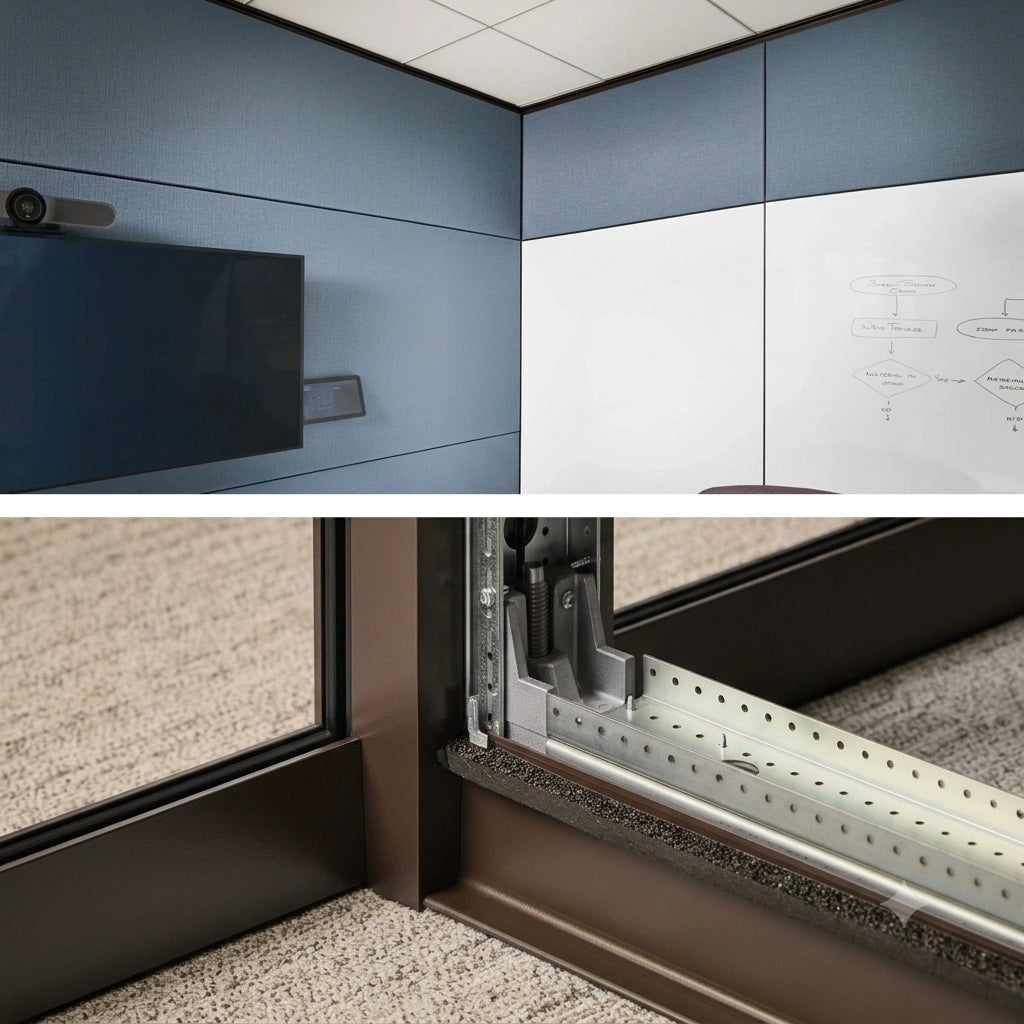

• Floor and ceiling trim rails are painted and come with acoustic foam, providing superior acoustic performance

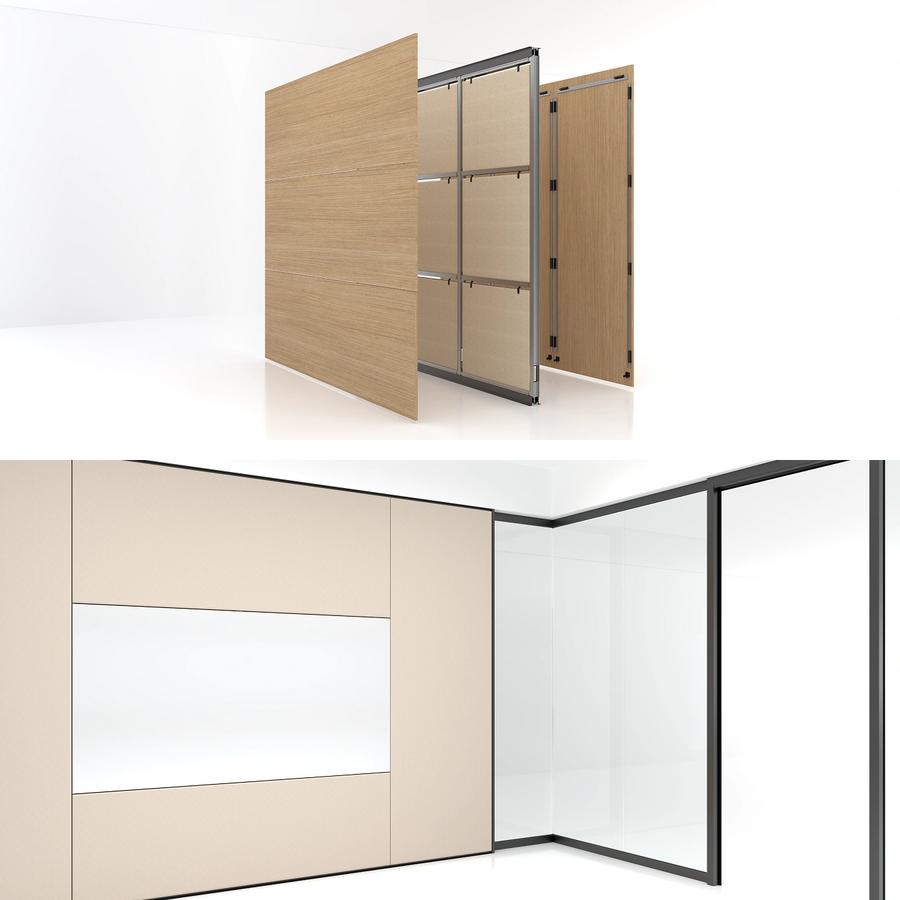

• Tile layouts can be customized independently on each side of the wall, known as elevation independence
• Supports vertical, horizontal, segmented and spanning tile applications to enable greater design flexibility
• Combine vertical, horizontal, full height and segmented tiles within a single wall elevation to support functional and aesthetic design objectives

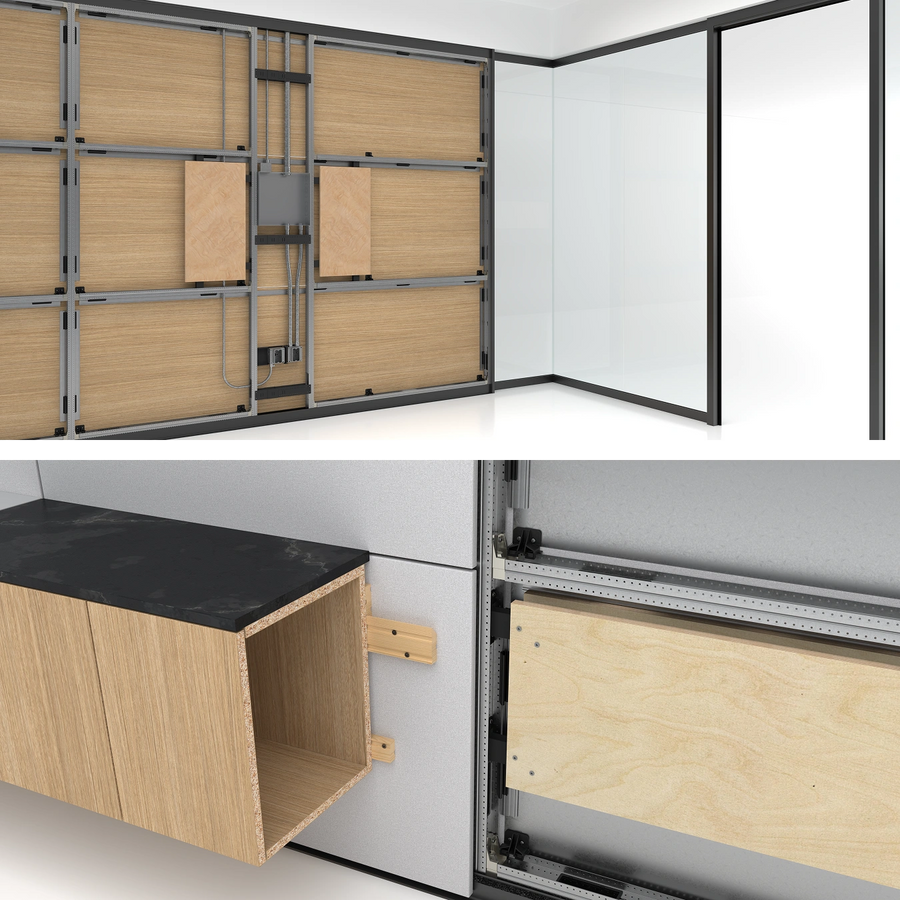

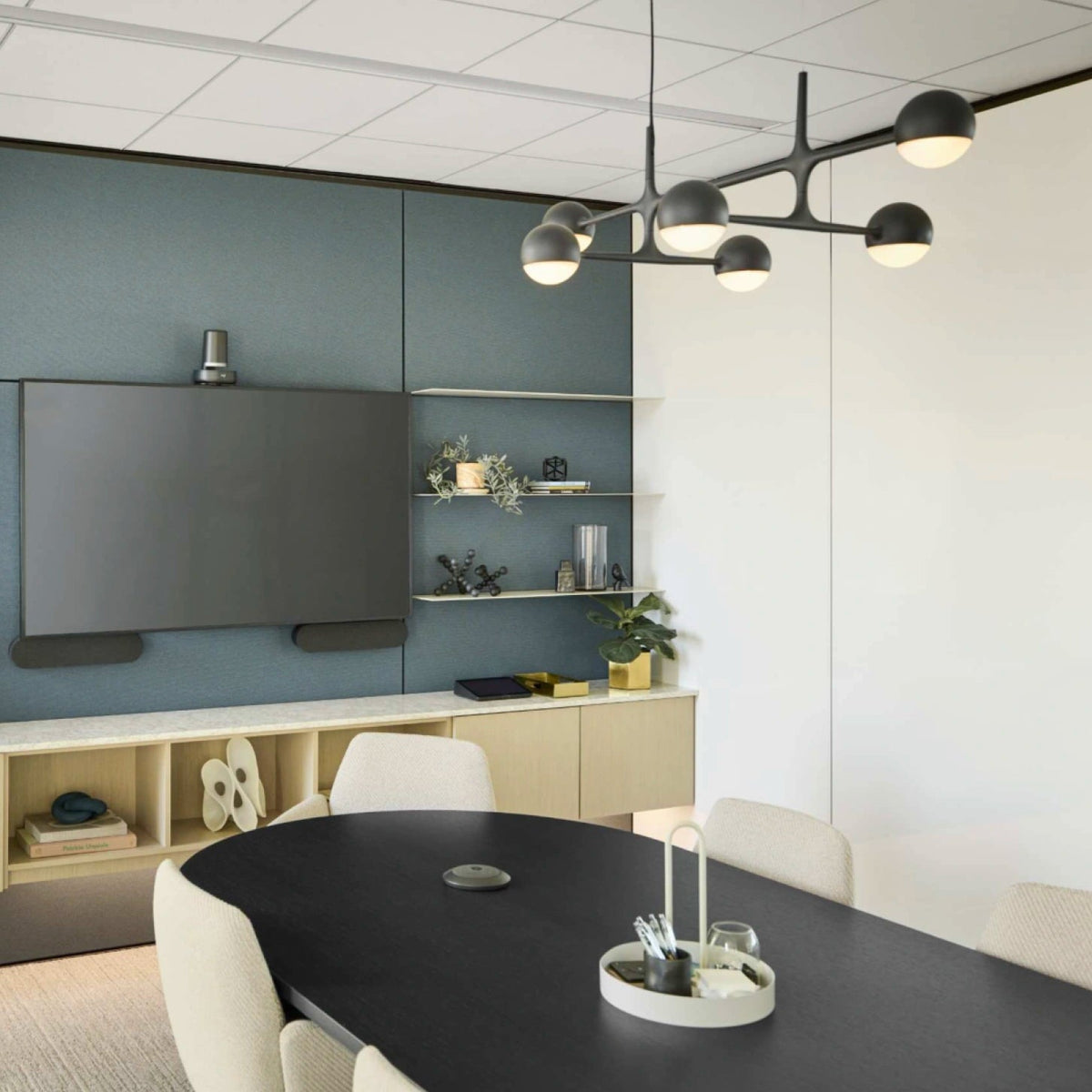

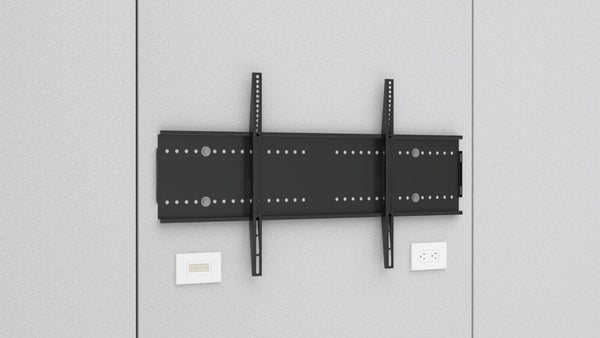

• Factory-supplied brackets support plywood backing for surface mounting of AV, artwork, and furniture
• Mounts to the studs using factory punched holes on the system’s ½” increment

• Optional concealed door closer
• Optional drop seal
• Dimensions:
  • Door Height: 10’ (3048mm)
  • Leaf Width: 36” (914mm), 42” (1067mm) & 48” (1219mm)
  • Glass Thickness: 3/8” (10mm)

• Optional concealed door closer
• Optional drop seal
• Glass is positioned off-center, resulting in a seamless and flush glass front aesthetic along the corridor,meeting ADA requirements
• Dimensions:
  • Door Height: 10’ (3048mm)
  • Door Thickness: 1-3/4” (45mm)
  • Leaf Width: 36” (914mm), 42” (1067mm) & 48” (1219.2mm)
  • Glass Thickness: 3/8” (10mm) or 1/2” (12mm)

• Optional concealed door Optional drop seal
• Dimensions:
  • Door Height: 10’ (3048mm)
  • Leaf Width: 36” (914mm), 42” (1067mm), & 48” (1219mm)

• Optional concealed door closer Optional drop seal
• Dimensions:
  • Door Height: 10’ (3048mm)
  • Door Thickness: 1-3/4” (45mm)
  • Leaf Width: 36” (914.4mm), 42” (1067mm) & 48” (1219.2mm)
  • Glass Thickness: 3/8” (10mm) or 1/2” (12mm)

• Standard close assist functionality
• Dimensions:
  • Door Height: 10’ (3048mm)
  • Leaf Width: 40” (1016mm), 42” (1067mm) & 45” (1143mm)
  • Glass Thickness: 3/8” (10mm)

• Standard close assist functionality
• Optional drop seals and interlocking bypass side seals
• Glass is centered within door leaf
• Dimensions:
  • Door Height: 10’ (3048mm)
  • Door Thickness: 1-3/4” (45mm)
  • Leaf Width: 40” (1016mm), 42” (1067mm) & 45” (1143mm)
  • Glass Thickness: 3/8” (10mm) or 1/2” (12mm)

• Standard close assist functionality
• Optional drop seals and interlocking bypass side seals
• Dimensions:
  • Door Height: 10’ (3048mm)
  • Leaf Width: 40” (1016mm), 42” (1067mm) & 45” (1143mm)

• Standard close assist functionality
• Optional drop seals and interlocking bypass side seals
• Dimensions:
  • Door Height: 10’ (3048mm)
  • Door Thickness: 1-3/4” (45.5mm)
  • Leaf Width: 40” (1016mm), 42” (1067mm) & 45” (1143mm)
  • Glass Thickness: 3/8” (10mm) or 1/2” (12mm)

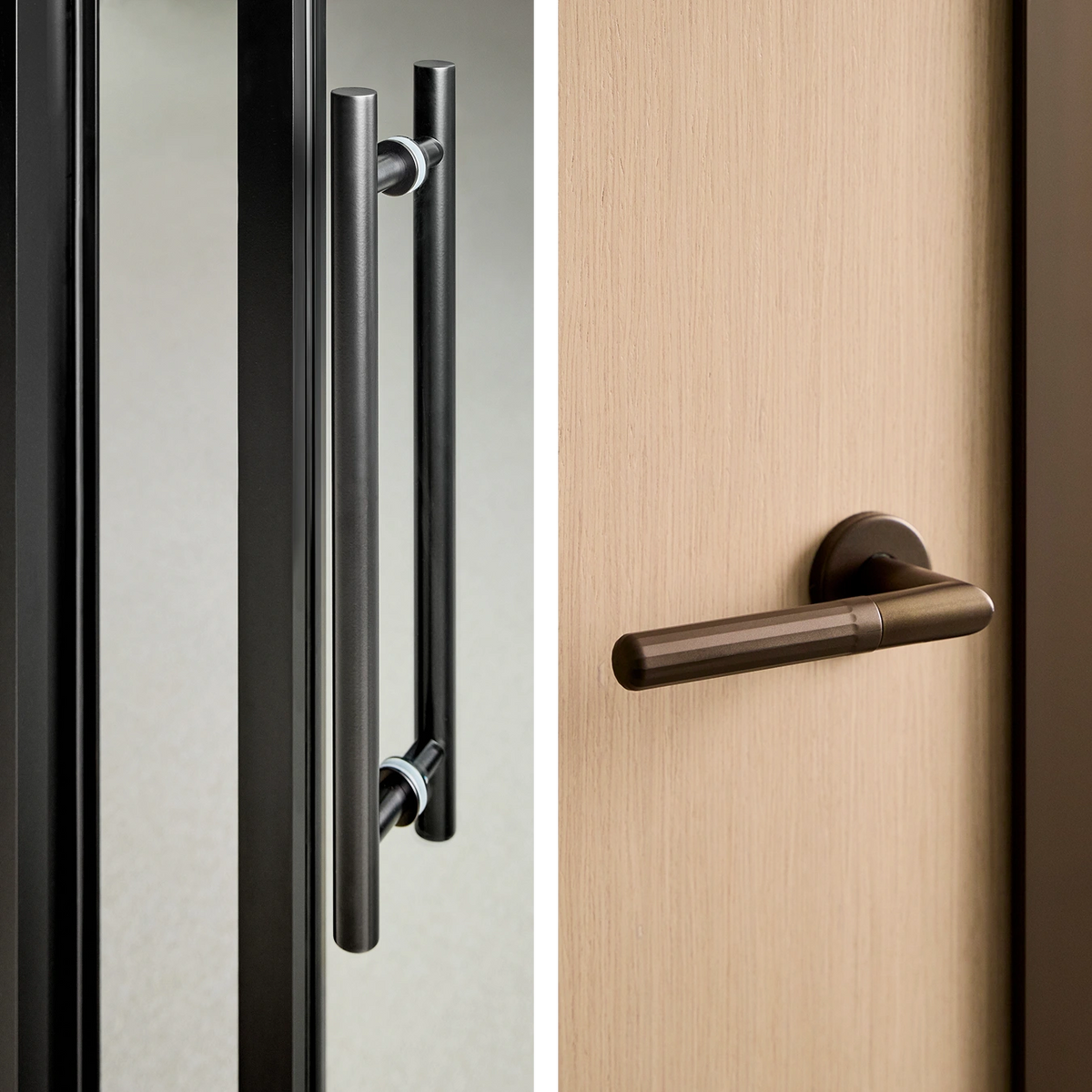

Cylinder lock available on framed single glazed or glass slab swing door.

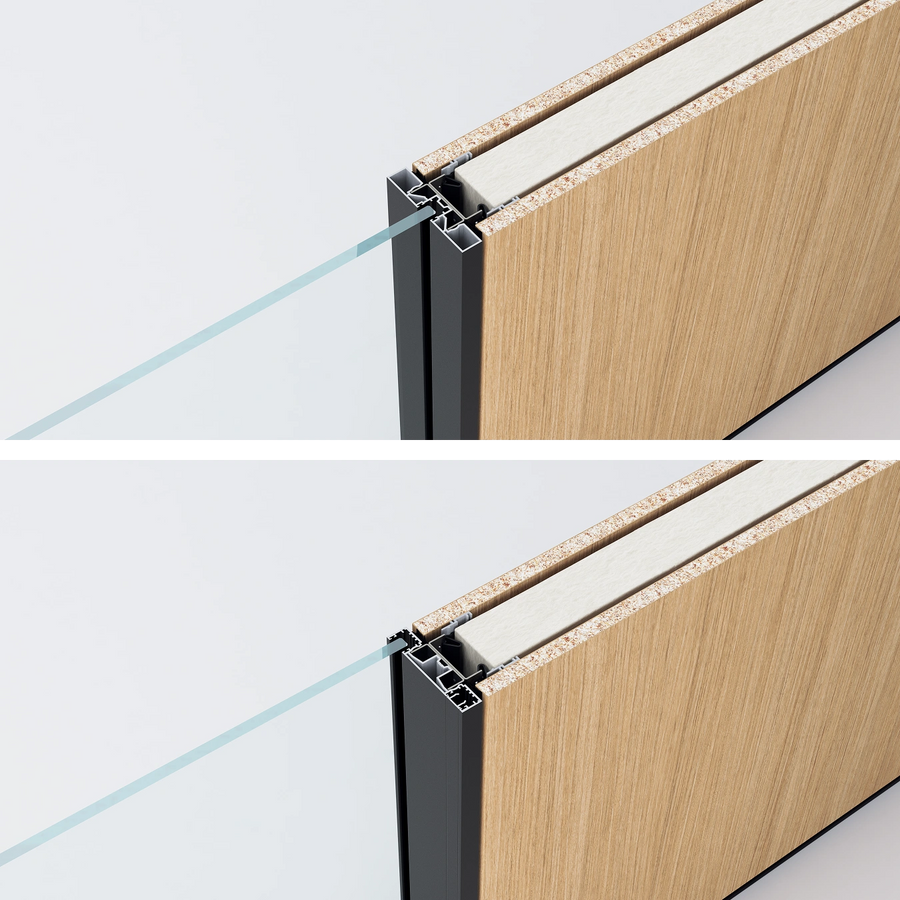

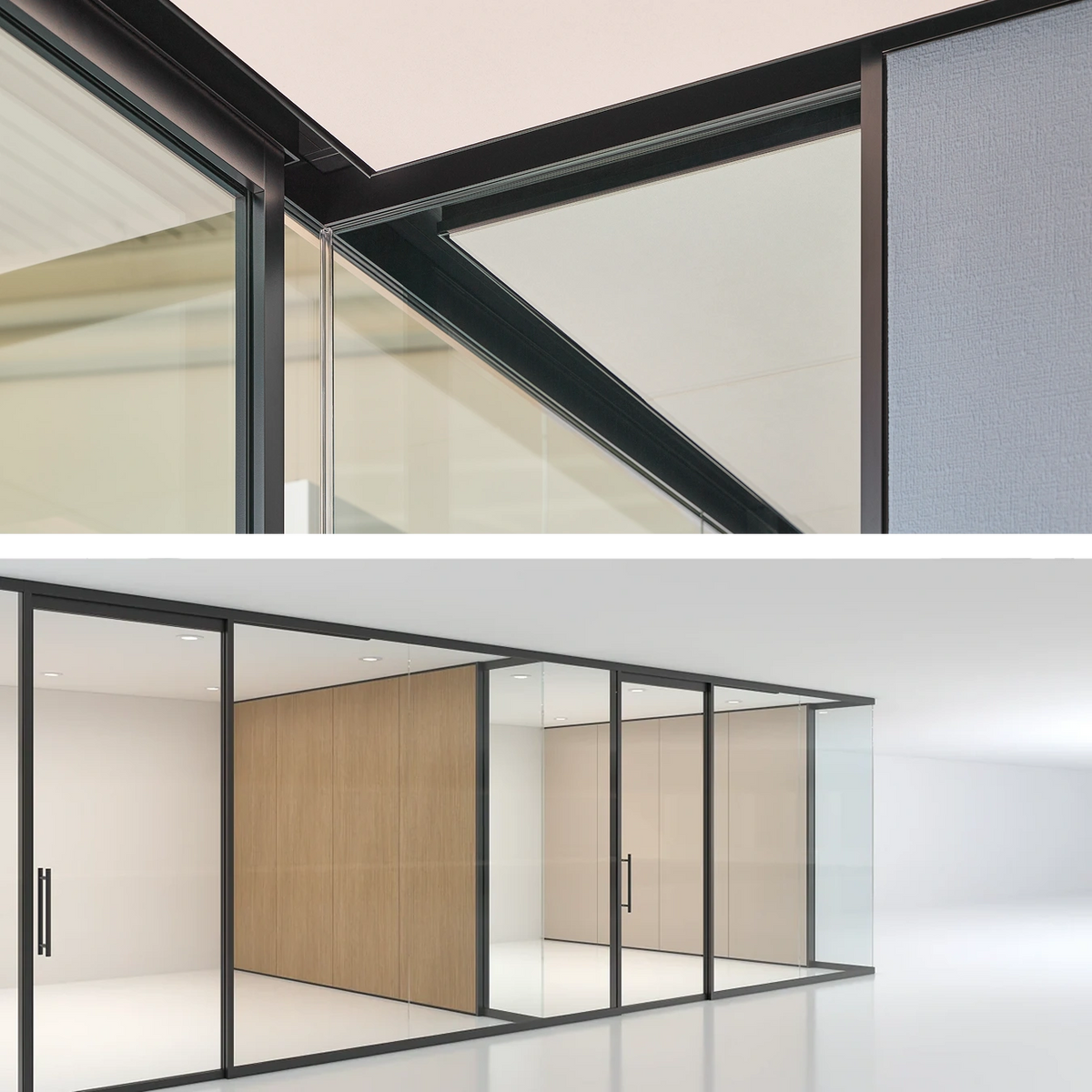

• Connects glass walls to solid walls
• Places glazing in an offset or center position to be flush with the face of the wall
• Accepts both 3/8” (10mm) and 1/2” (12mm) glazing

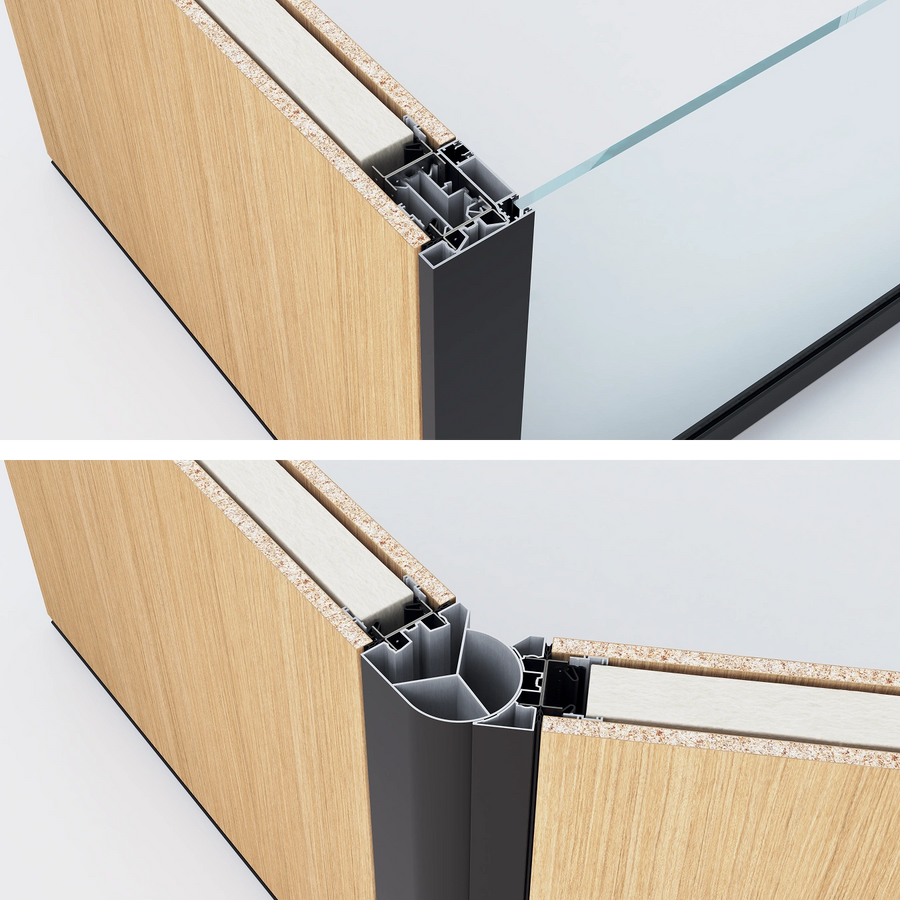

2-Way Solid to Glass Overlay Post

• Solid wall corner connection to offset 4SPACE glazing
• Overlay corner connection reduces painted metal aesthetic
• Painted metal is available in Haworth powder-coated trim colors

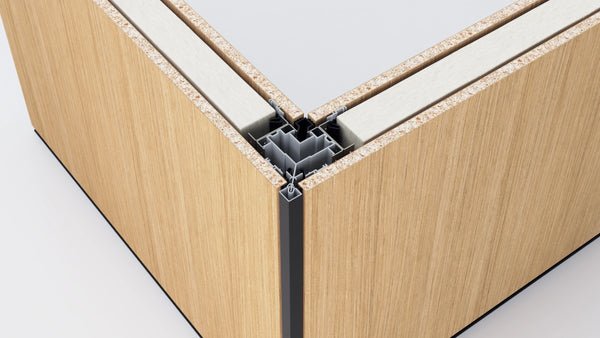

2-Way Solid Variable Angle

• Solid wall variable angle connection
• Allows solid panels to connect at site-adjustable post for flexible layouts
• Adjusted from 90 degrees to 180 degrees
• Painted metal is available in Haworth powder-coated trim colors

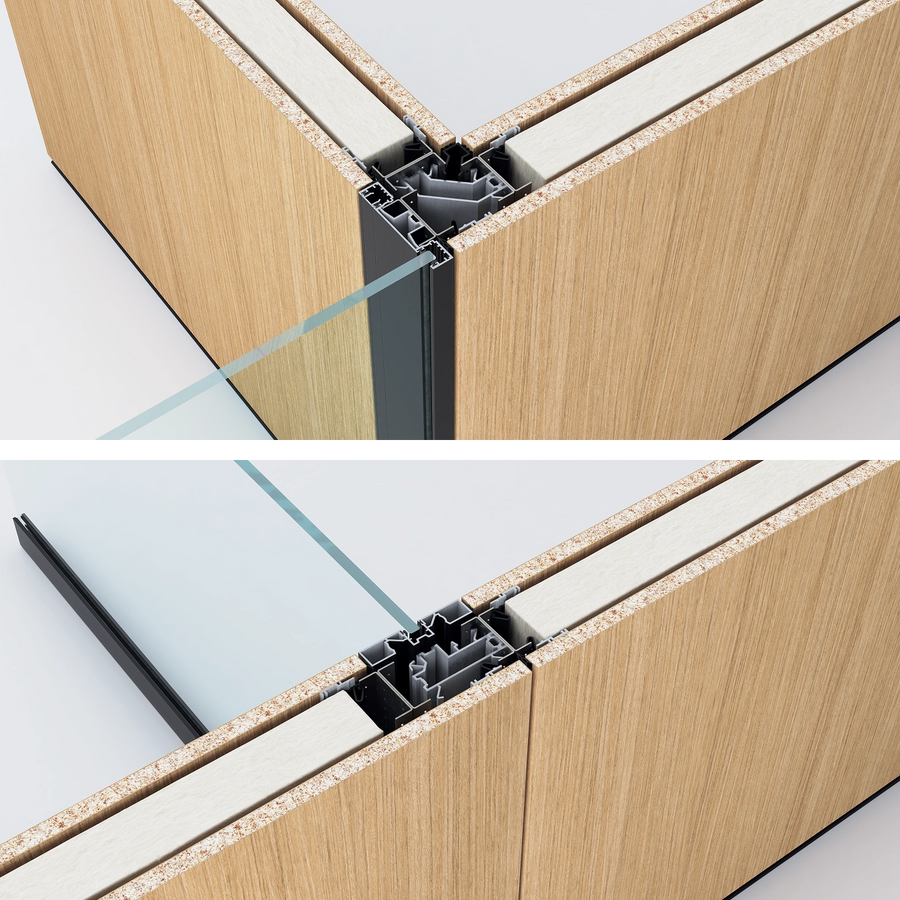

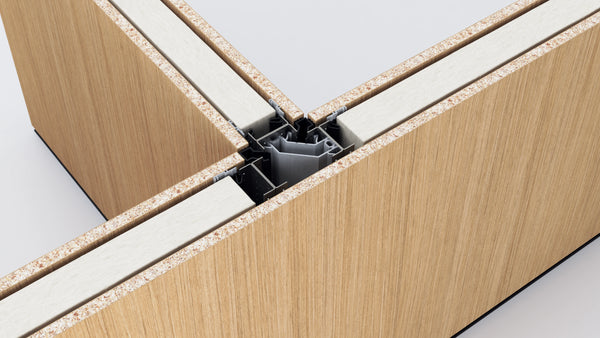

3-Way Solid to Solid to Glass

• Solid wall connection to offset 4SPACE glazing
• Overlay connection reduces painted metal aesthetic
• Painted metal is available in Haworth powder-coated trim colors

3-Way Solid to Glass to Solid

• Allows inset glass conditions between rooms for increased visibility
• Available in offset or center glazed configurations to meet various applications
