1-1/8” Platform
4SPACE Glass Walls
System Overview
In Stock, Ready to Ship
Timelines drive projects. The 1-1/8” Glass Walls Platform allows for beautiful and complete installation within weeks. Select from a thoughtfully curated collection of in-stock components to build out a space with the efficiency and reliability you can count on.

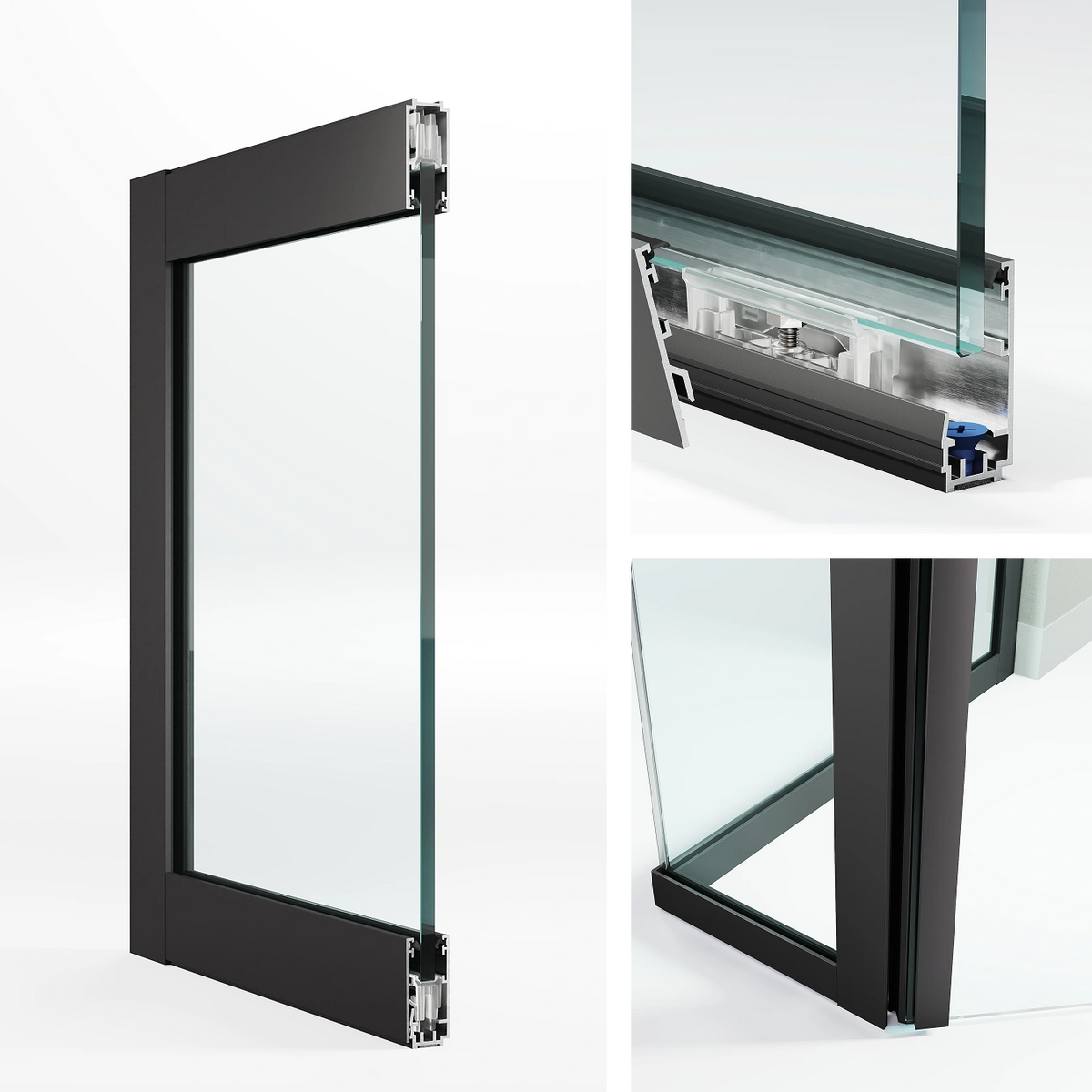

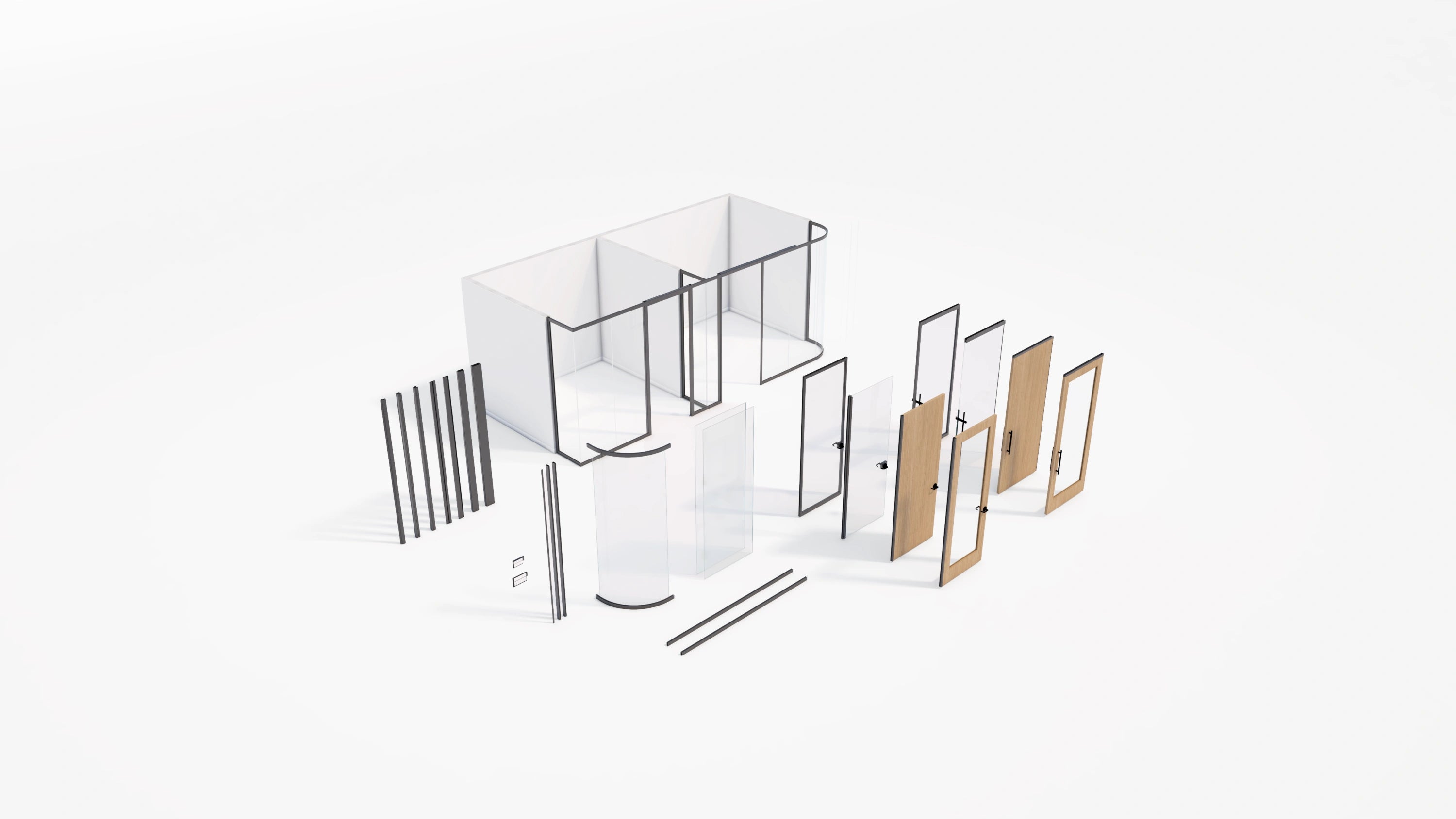

System Fundamentals

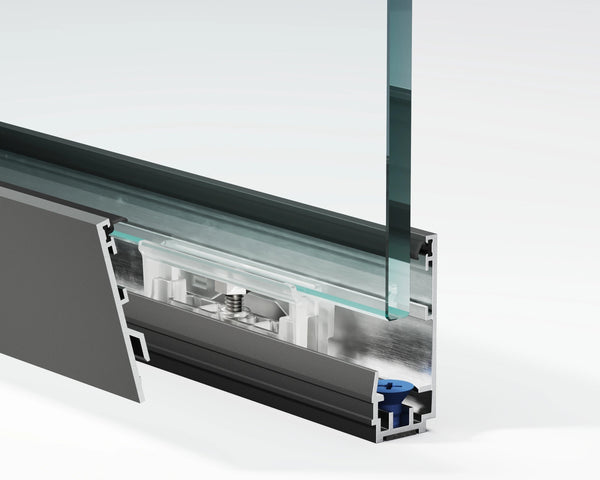

The top and bottom rail are 2-1/2” (63.55mm) high, creating visually-light attachments to the base building.

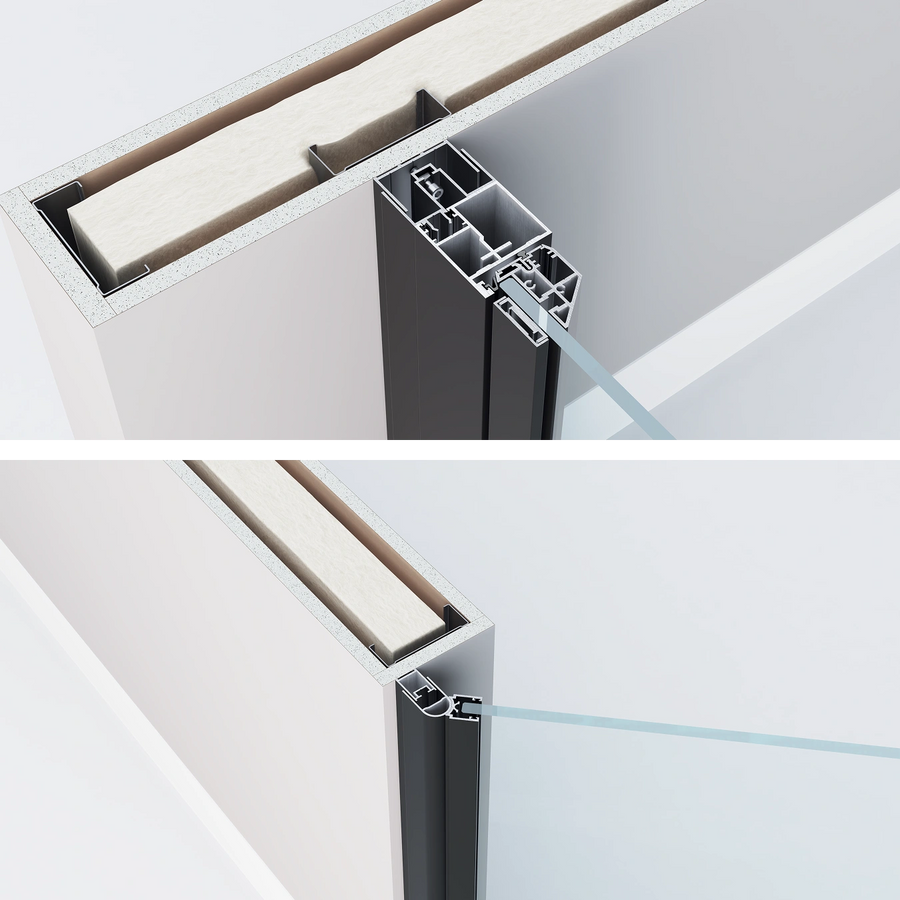

Starter Rail
- Door frame starter
- Variable angle starter

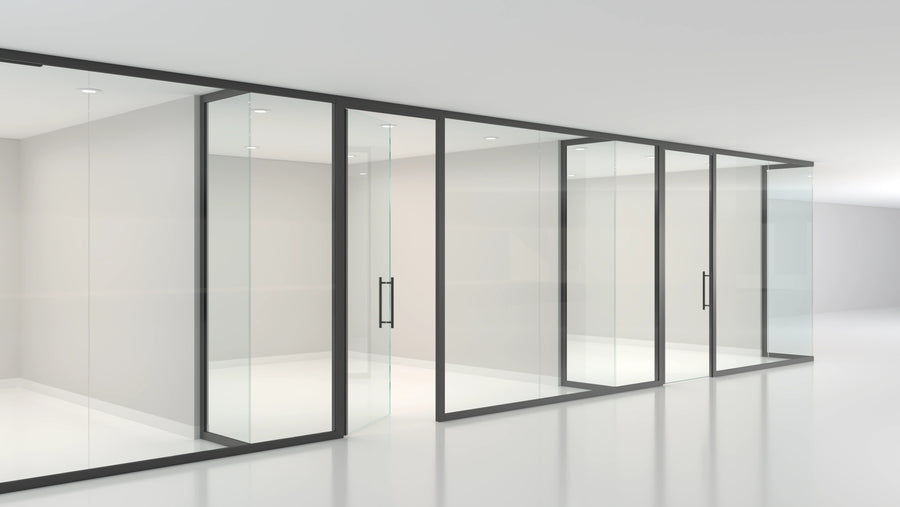

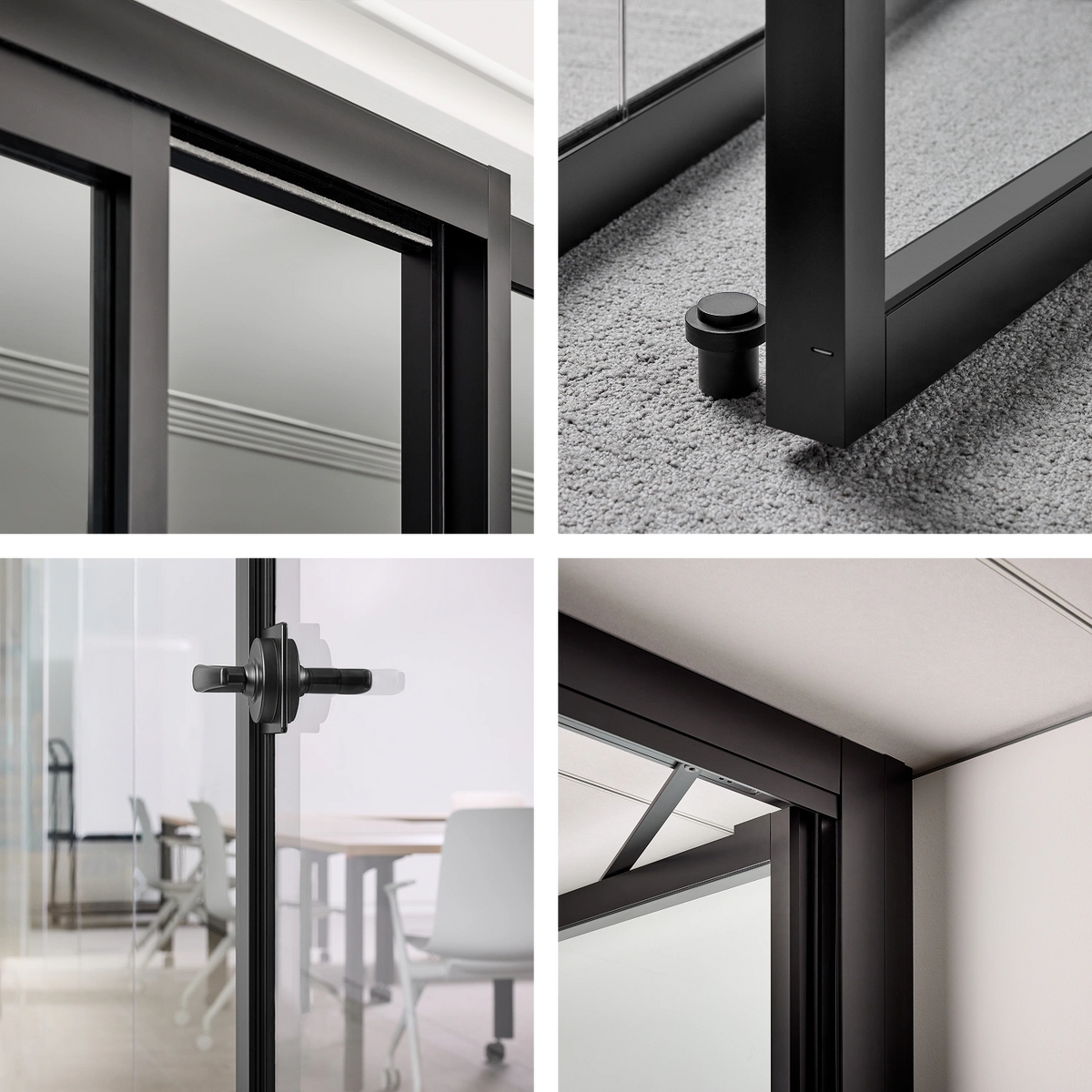

Doors
Complete your space with swing or sliding doors, offering additional versatility and customization for any application or aesthetic.
Glass Slab Swing Door
- Optional concealed door closer
- Optional drop seal
- Dimensions:
• Door Height: 10’ (3048mm)
• Leaf Width: 36” (914mm), 42” (1067mm) & 48” (1219mm)
• Glass Thickness: 3/8” (10mm)

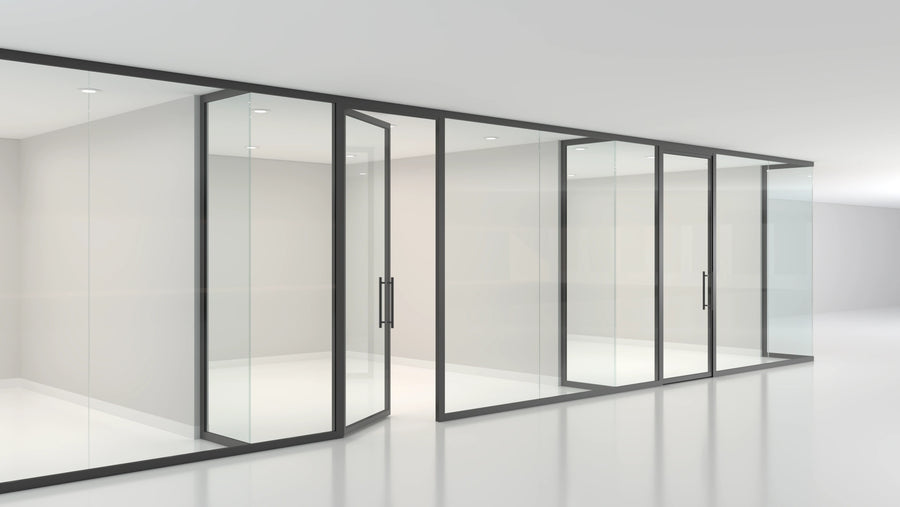

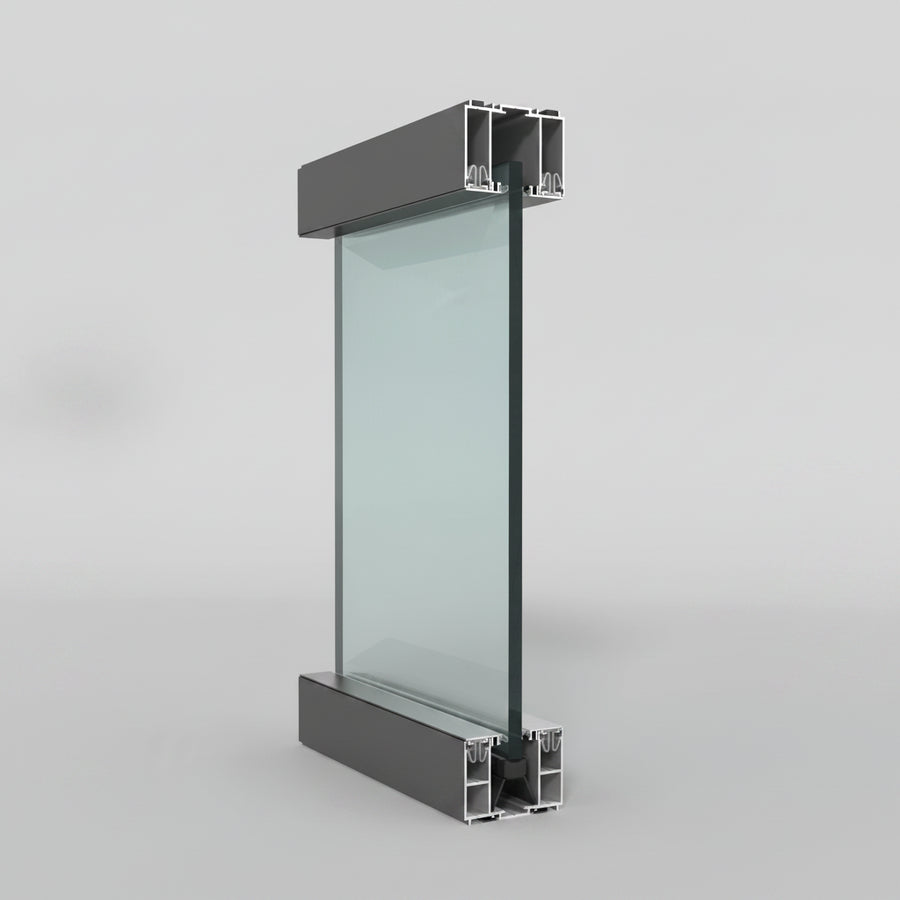

Framed Single Glazed Swing Door
- Optional concealed door closer
- Optional drop seal
- Glass is positioned off-center, resulting in a seamless and flush glass front aesthetic along the corridor,meeting ADA requirements
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Thickness: 1-3/4” (45mm)
• Leaf Width: 36” (914mm), 42” (1067mm) & 48” (1219.2mm)
• Glass Thickness: 3/8” (10mm) or 1/2” (12mm)

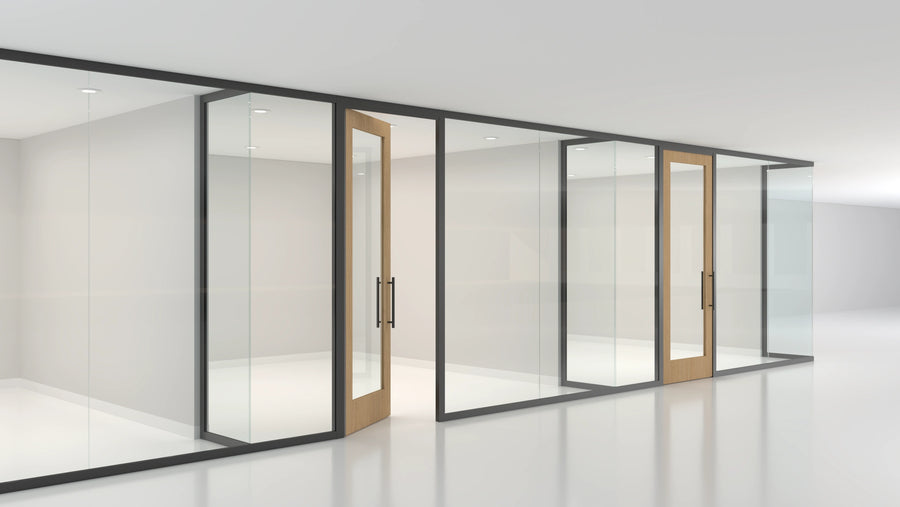

Wood Swing Door
- Optional concealed door Optional drop seal
- Dimensions:
• Door Height: 10’ (3048mm)
• Leaf Width: 36” (914mm), 42” (1067mm), & 48” (1219mm)
Wood Glazed Swing Door
- Optional concealed door closer Optional drop seal
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Thickness: 1-3/4” (45mm)
• Leaf Width: 36” (914.4mm), 42” (1067mm) & 48” (1219.2mm)
• Glass Thickness: 3/8” (10mm) or 1/2” (12mm)

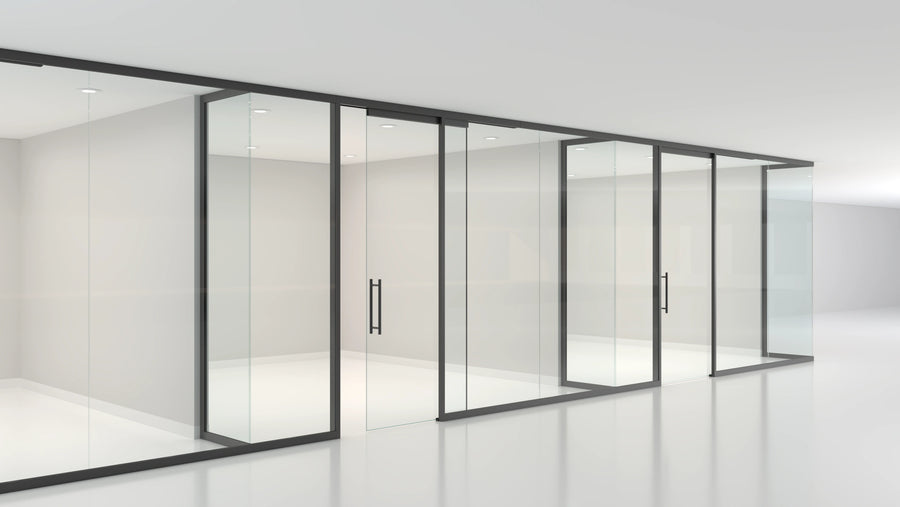

Glass Slab Sliding Door
- Standard close assist functionality
- Dimensions:
• Door Height: 10’ (3048mm)
• Leaf Width: 40” (1016mm), 42” (1067mm) & 45” (1143mm)
• Glass Thickness: 3/8” (10mm)

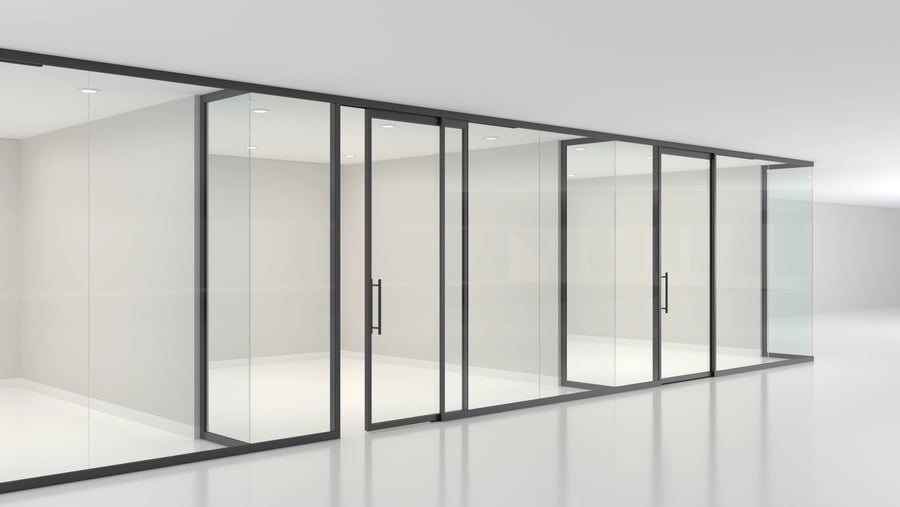

Framed Single Glazed Sliding Door
- Standard close assist functionality
- Optional drop seals and interlocking bypass side seals
- Glass is centered within door leaf
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Thickness: 1-3/4” (45mm)
• Leaf Width: 40” (1016mm), 42” (1067mm) & 45” (1143mm)
• Glass Thickness: 3/8” (10mm) or 1/2” (12mm)

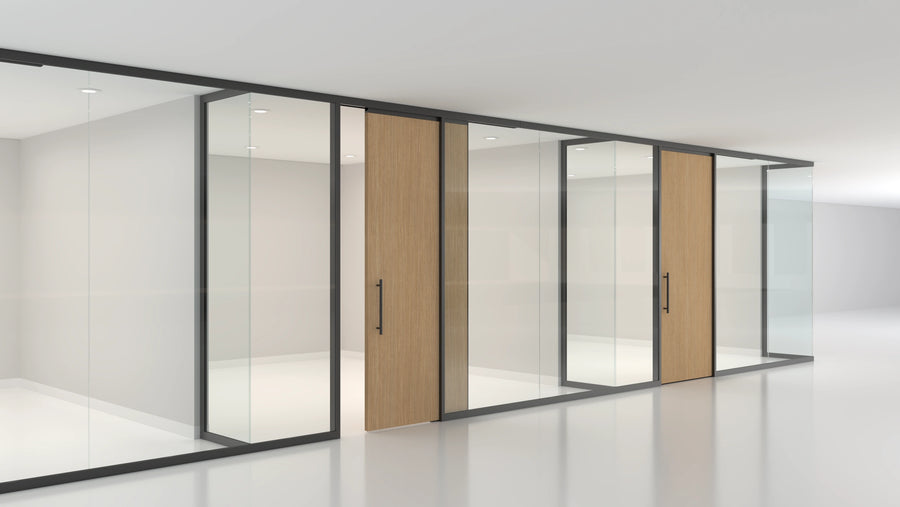

Wood Sliding Door
- Standard close assist functionality
- Optional drop seals and interlocking bypass side seals
- Dimensions:
• Door Height: 10’ (3048mm)
• Leaf Width: 40” (1016mm), 42” (1067mm) & 45” (1143mm)
Wood Glazed Sliding Door
- Standard close assist functionality
- Optional drop seals and interlocking bypass side seals
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Thickness: 1-3/4” (45.5mm)
• Leaf Width: 40” (1016mm), 42” (1067mm) & 45” (1143mm)
• Glass Thickness: 3/8” (10mm) or 1/2” (12mm)

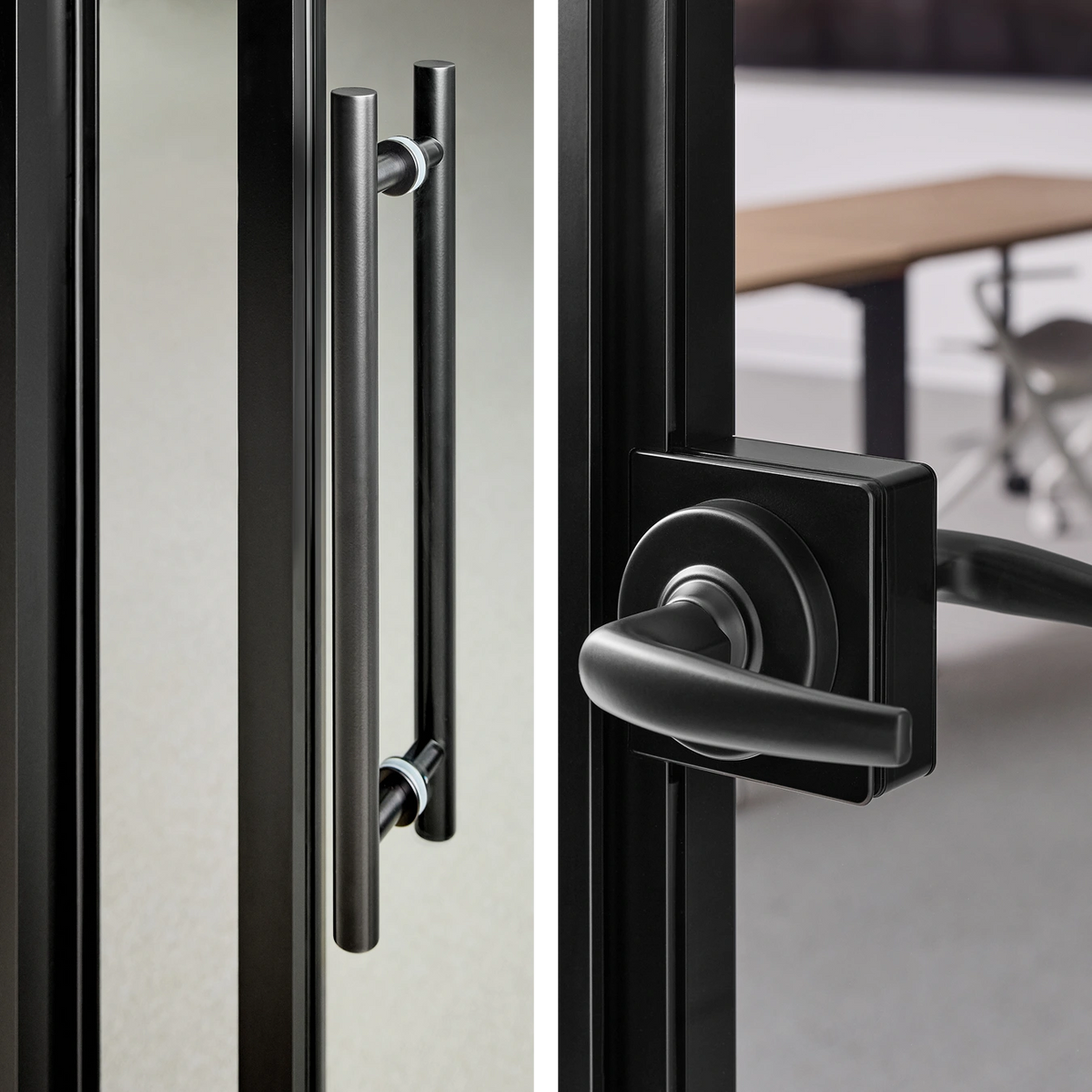

Hardware

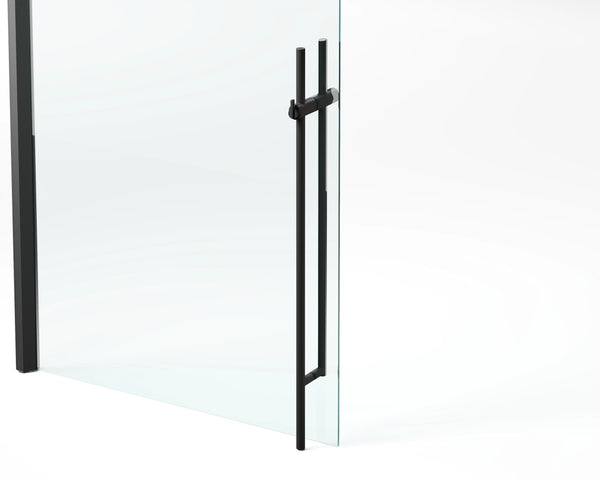

Door hardware brings the final layer of function, finish, and user experience to the wall system. Explore locksets, pulls, and hardware options for security, privacy, accessibility, and design intent in each space.

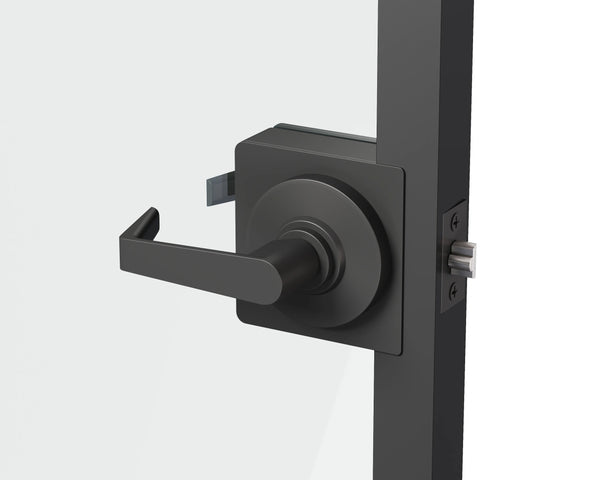

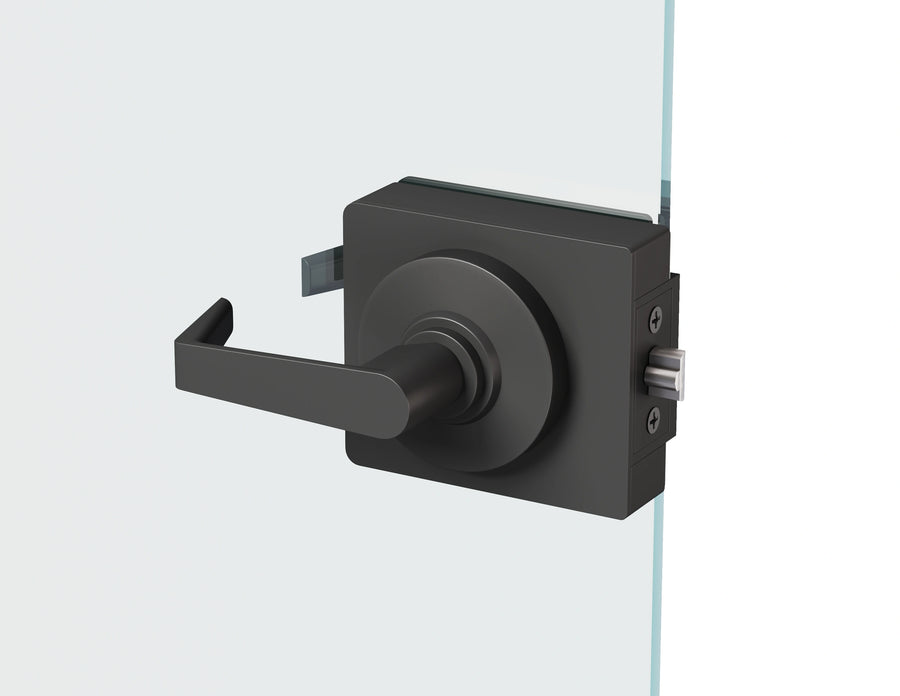

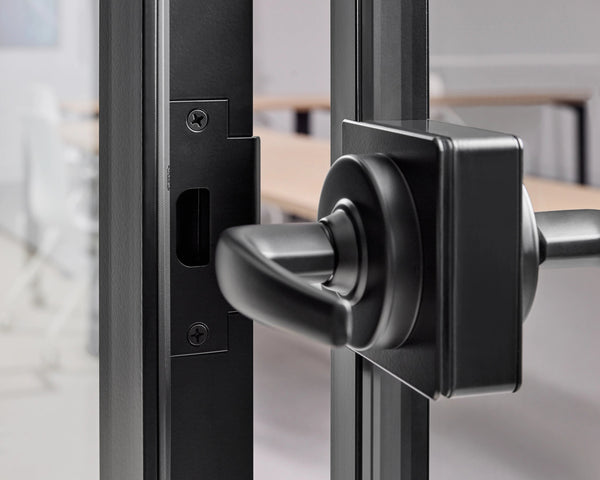

Cylinder Lock
Cylinder lock available on framed single glazed or glass slab swing door.

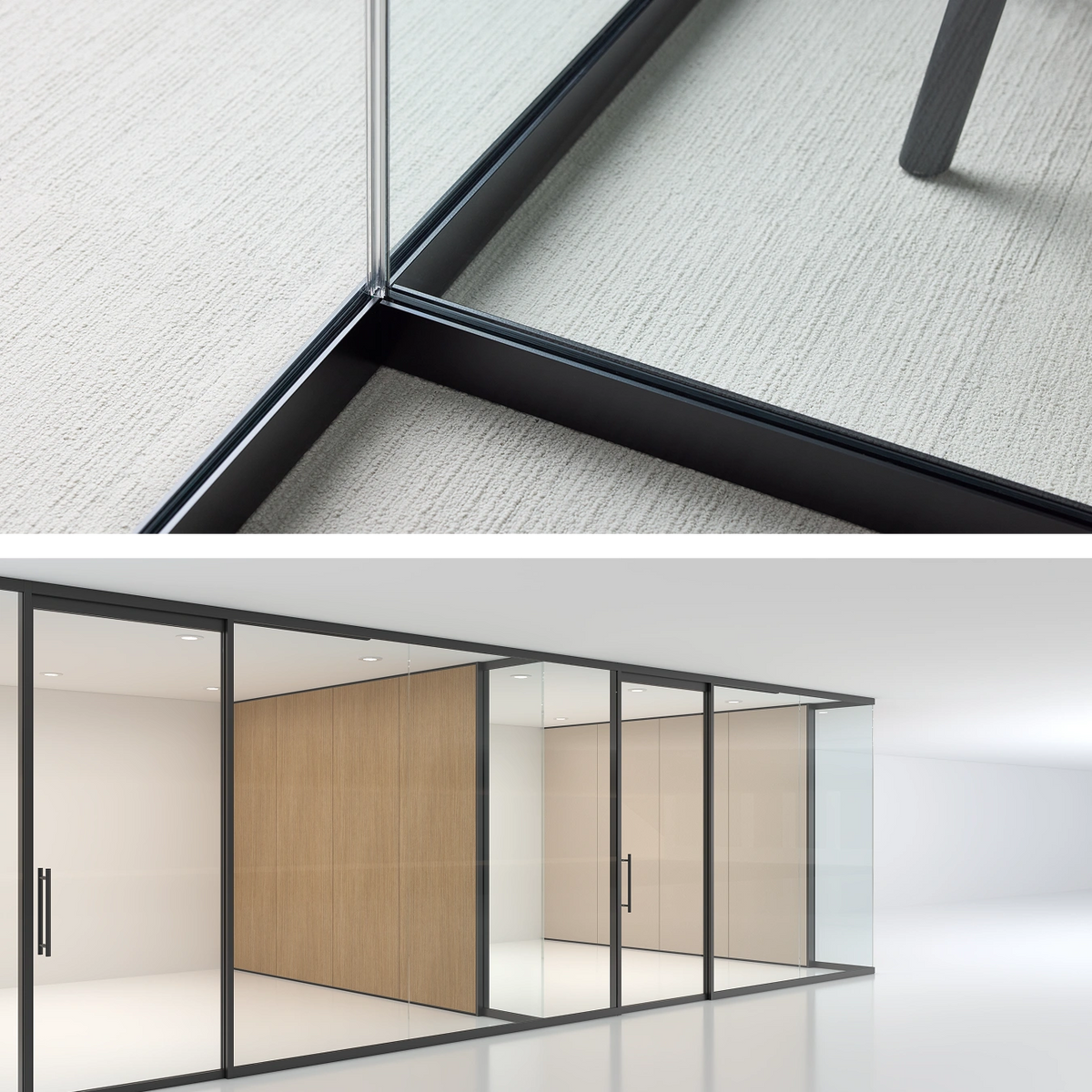

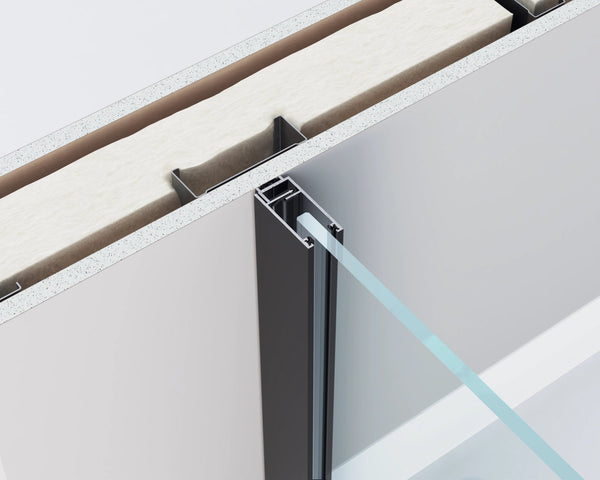

Transition Details
Clean, thoughtful transitions maintain system continuity while meeting planning requirements.

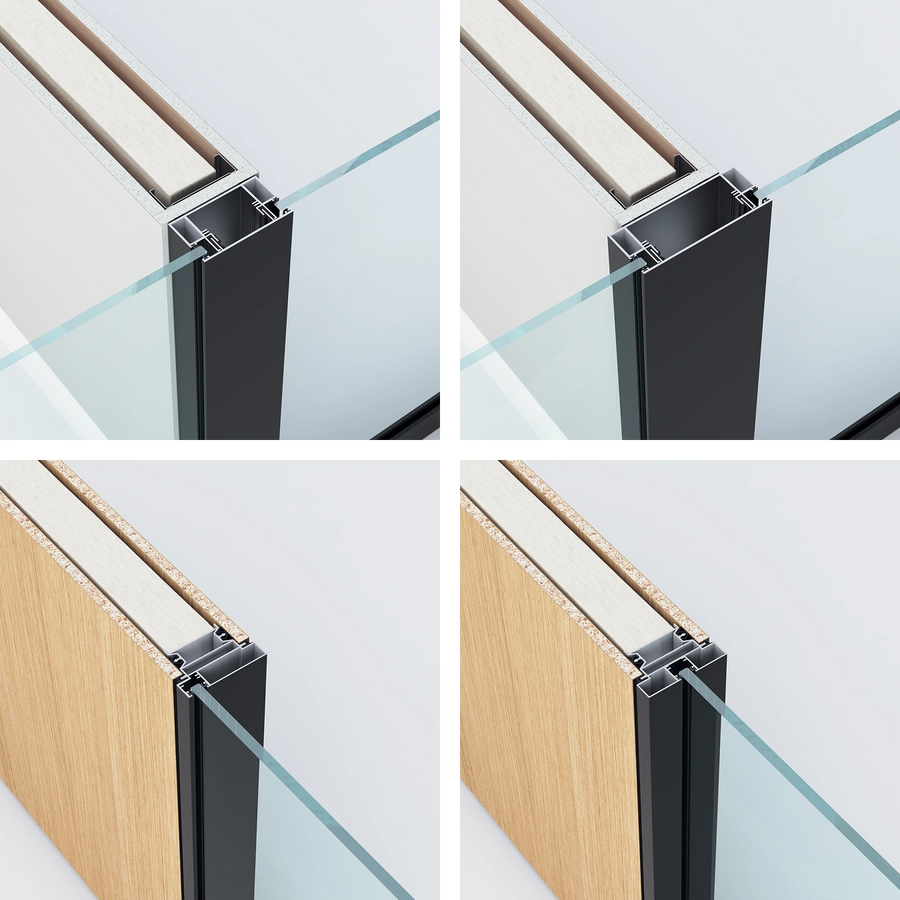

Inline Transition

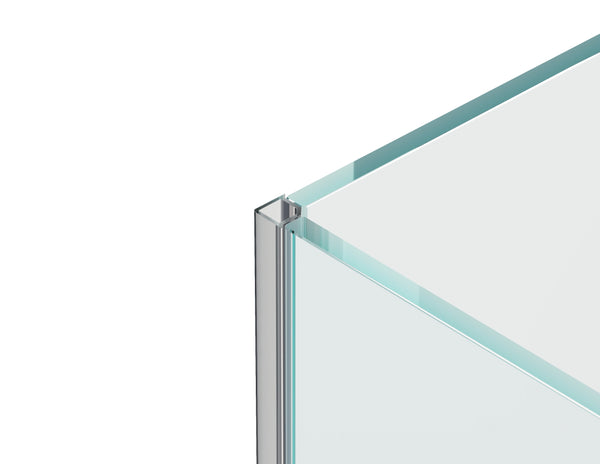

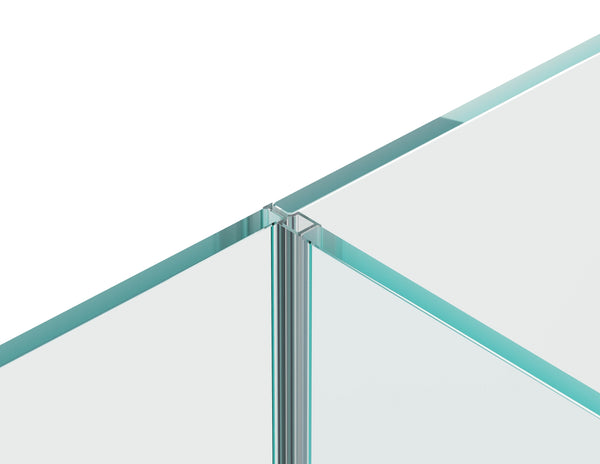

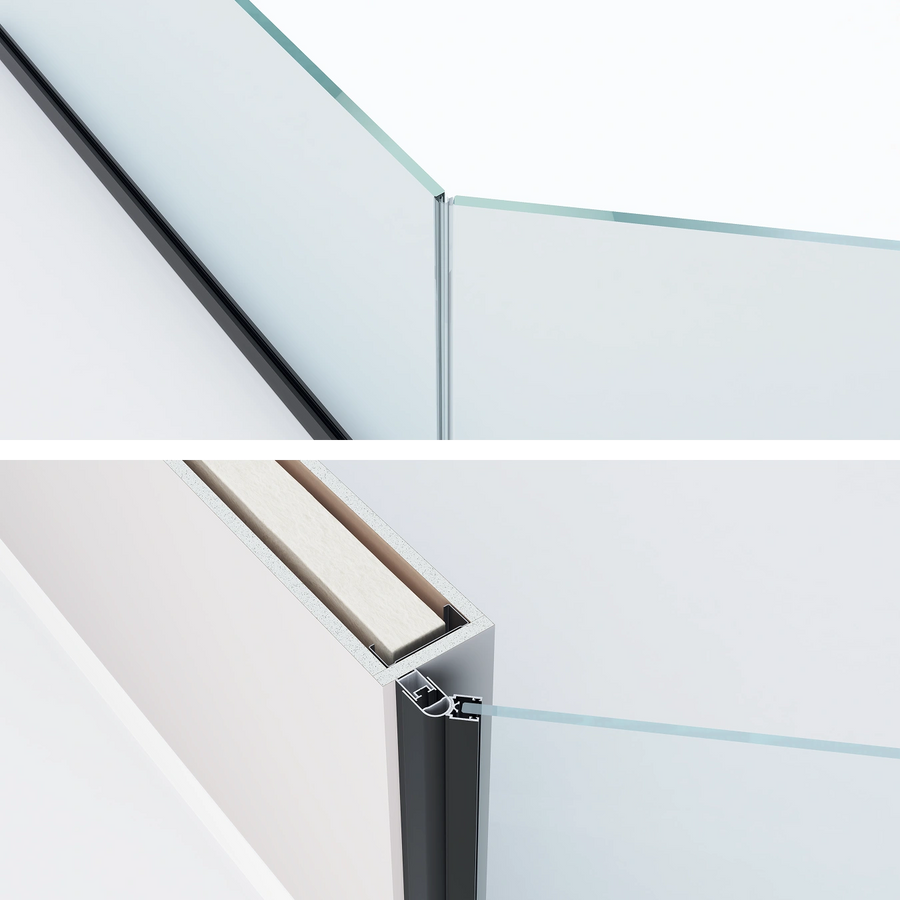

2-Way Transition
Materials & Finishes
Select from a full architectural range of material types and finish options for visual continuity and project-specific levels of expression.
Features & Performance
The 1-1/8" Glass Walls Platform is engineered for performance—delivering dependable durability. Designed for demanding interiors, it balances everyday performance with clean, disciplined architectural expression.
Compatible Products

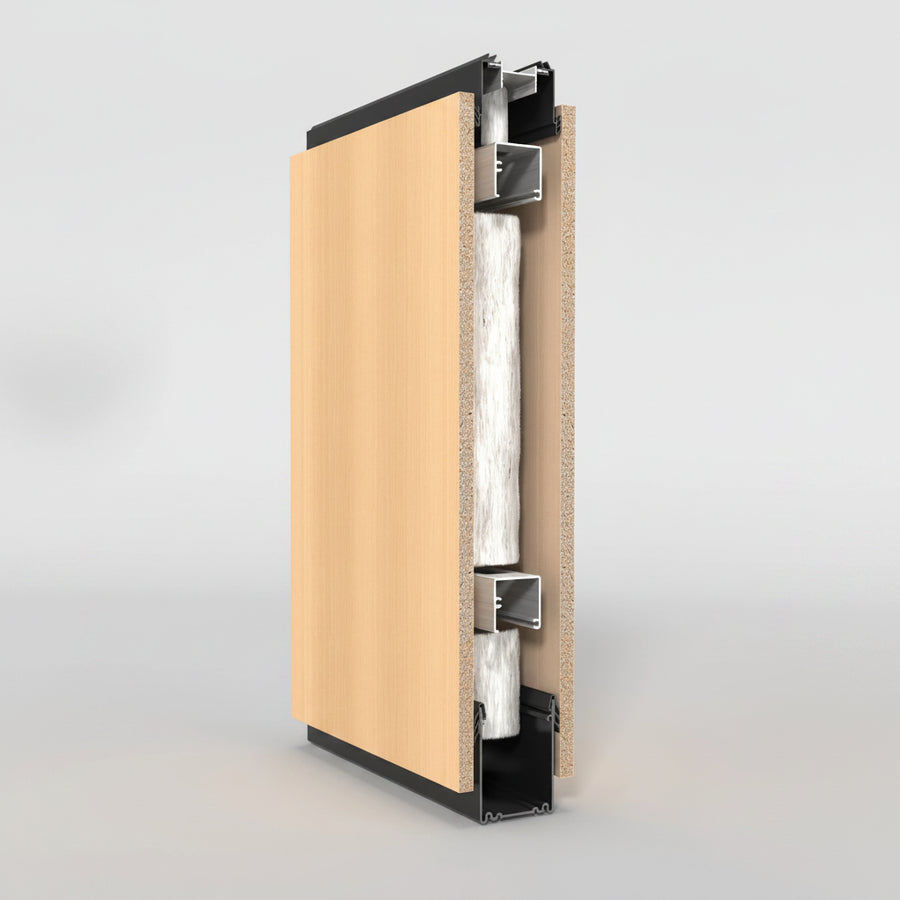

The 1-1/8” Glass Walls Platform works seamlessly with solid wall applications to create a finished space. Consider the 3-1/2” Platform Glass Walls System for a double-glazed solution.
Project Gallery

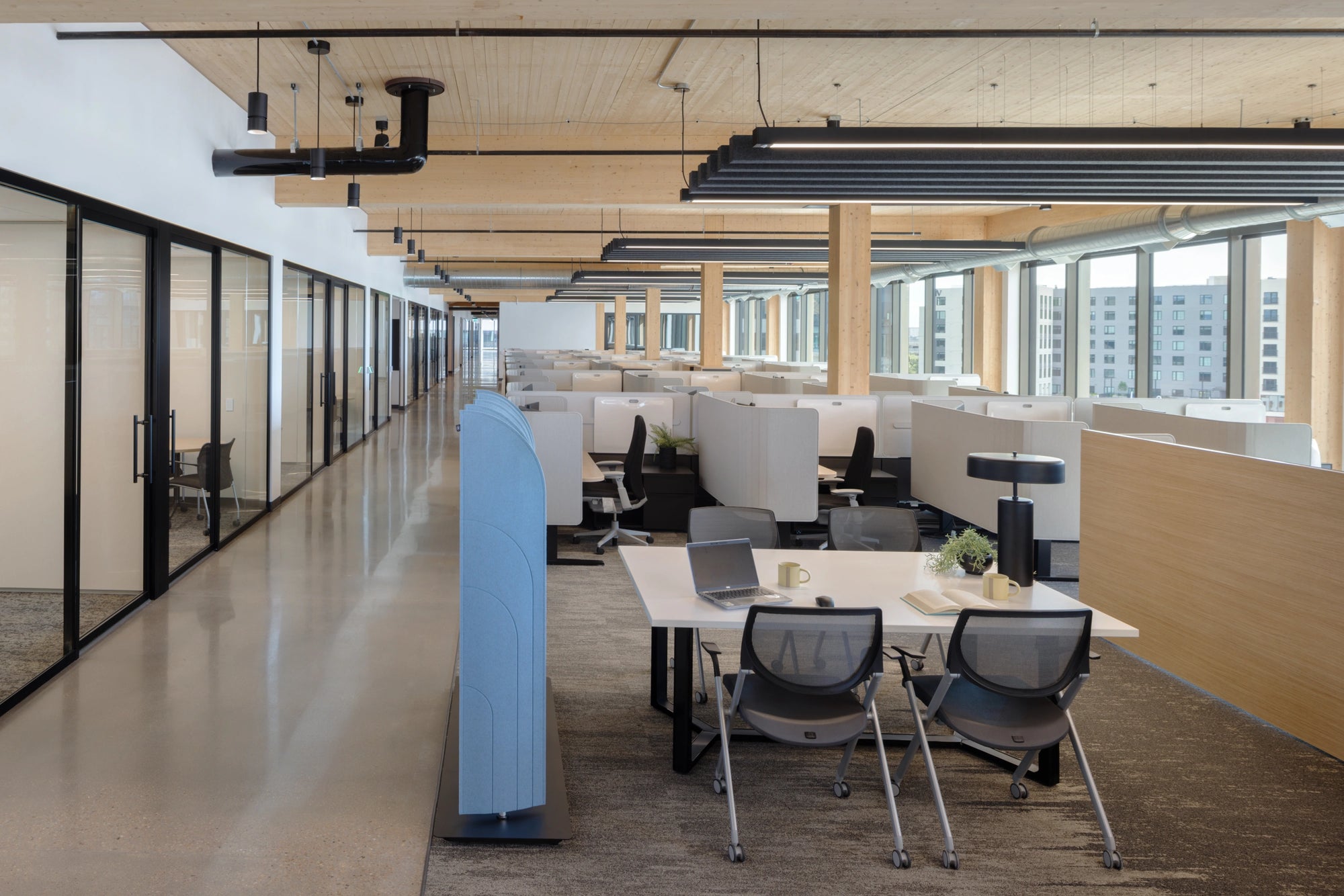

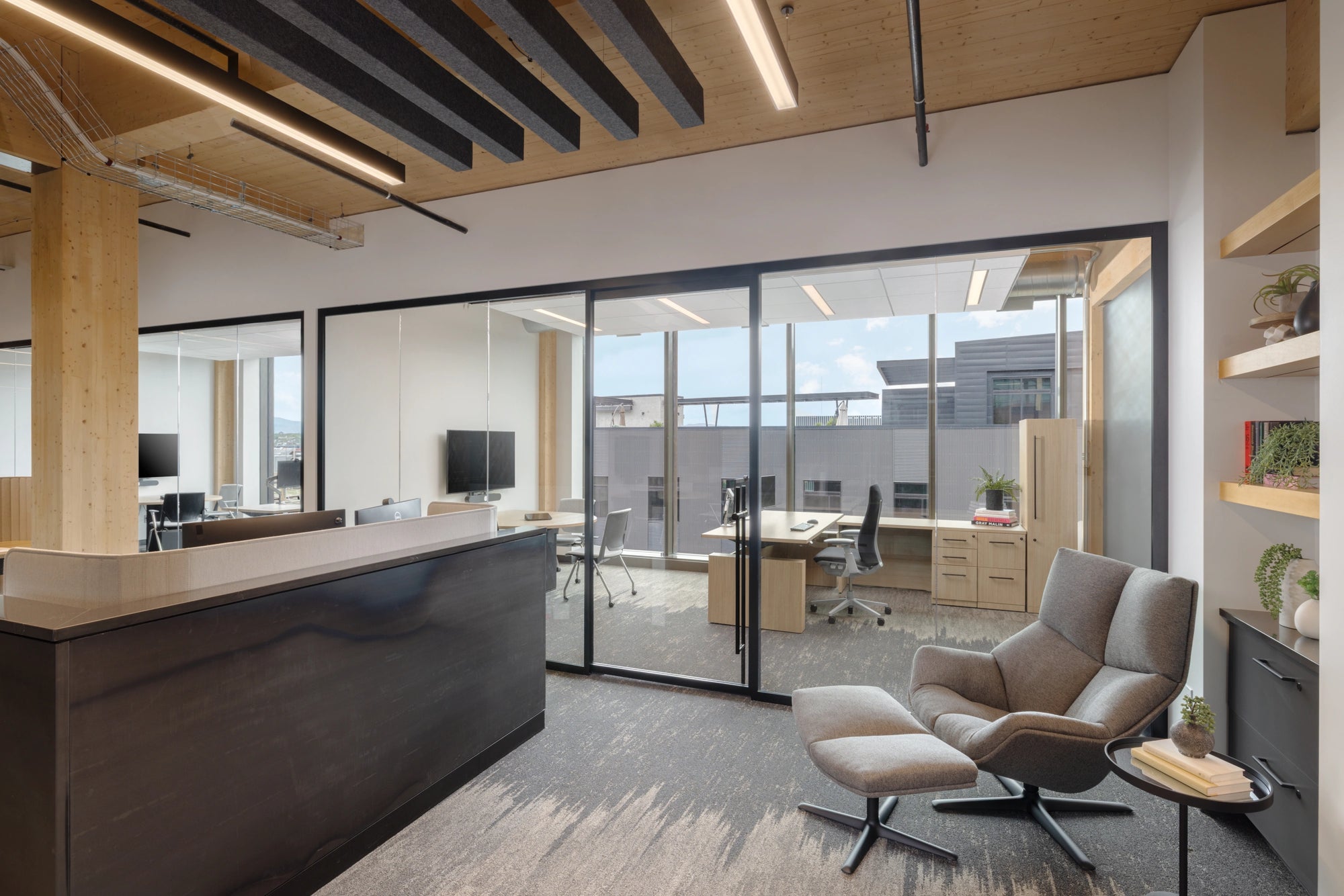

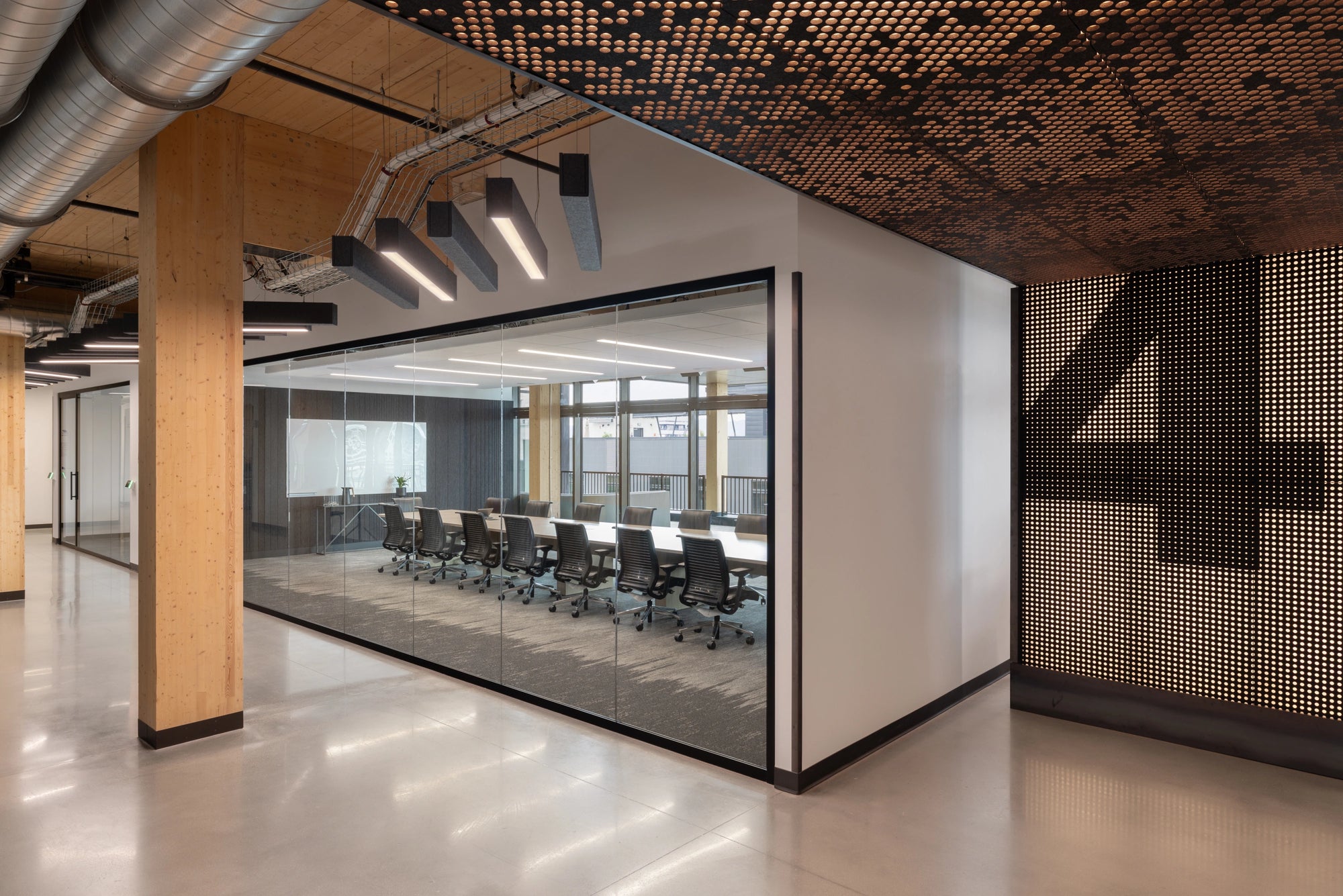

Xcel Energy Denver, CO

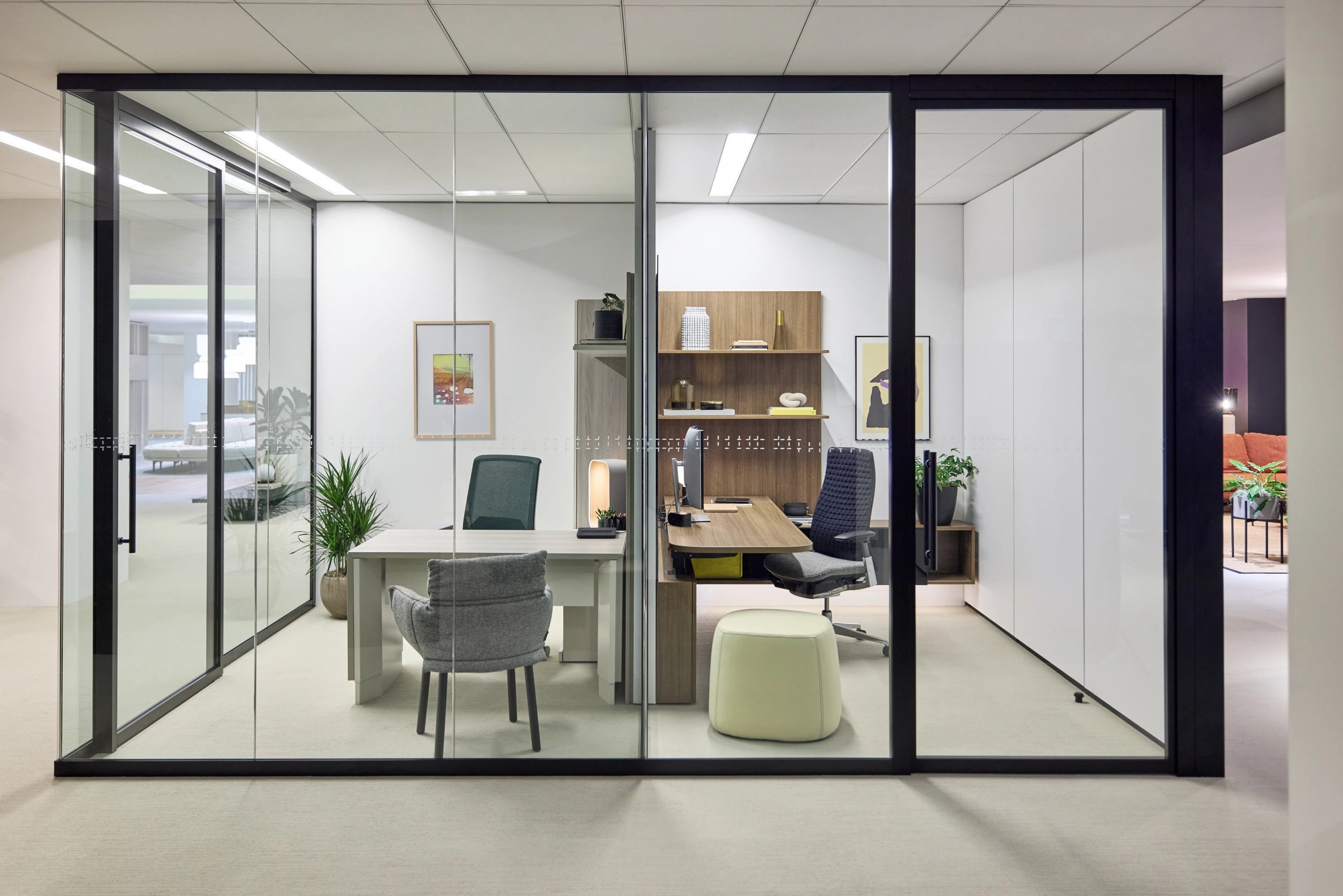

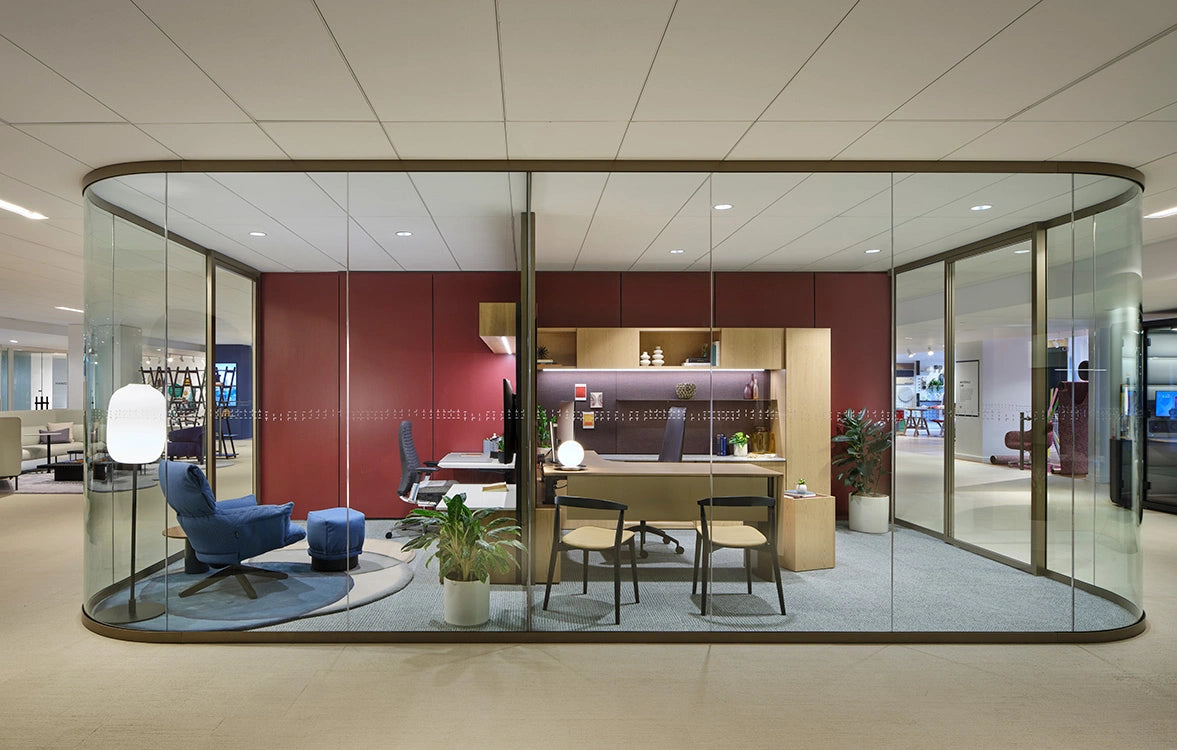

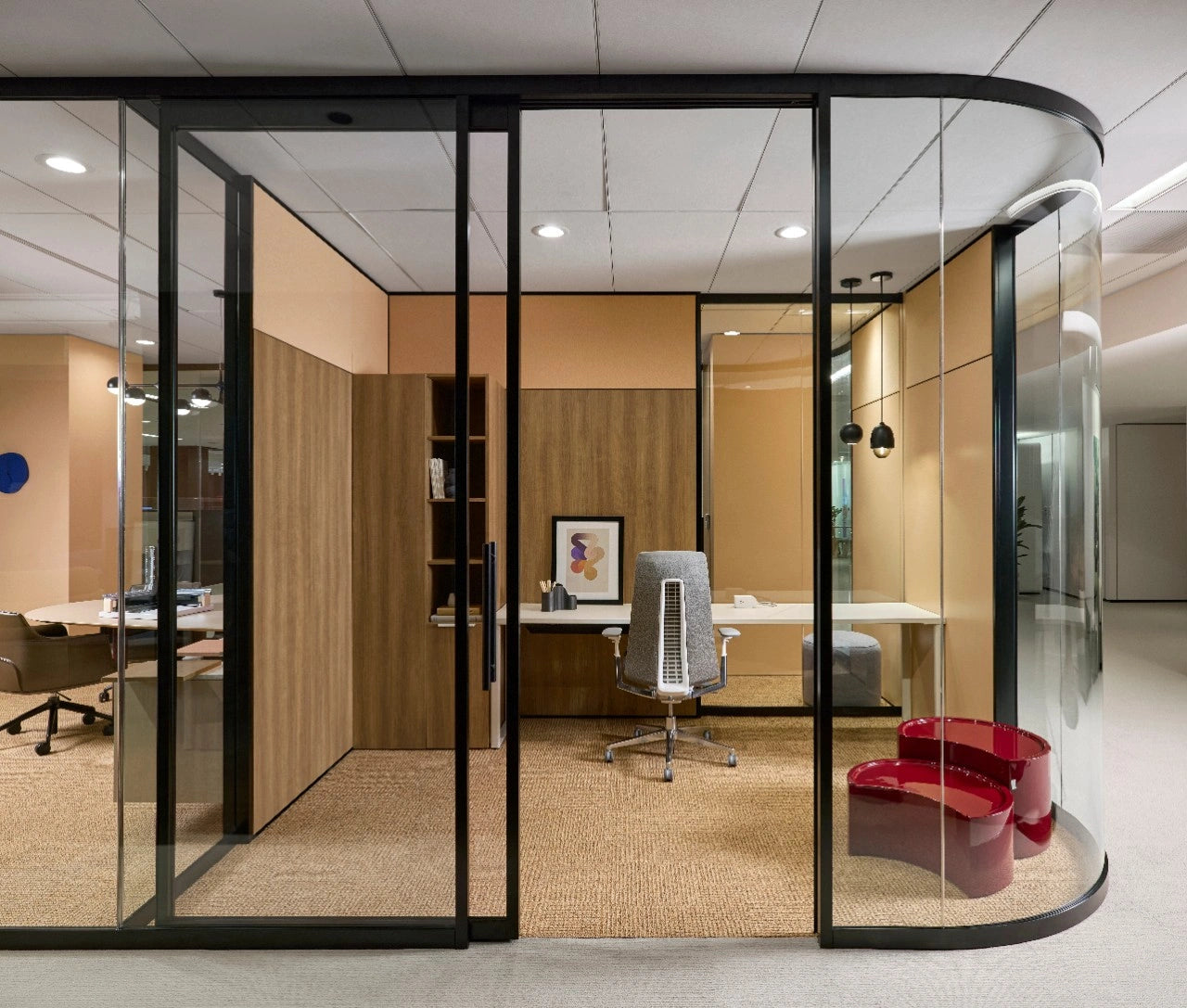

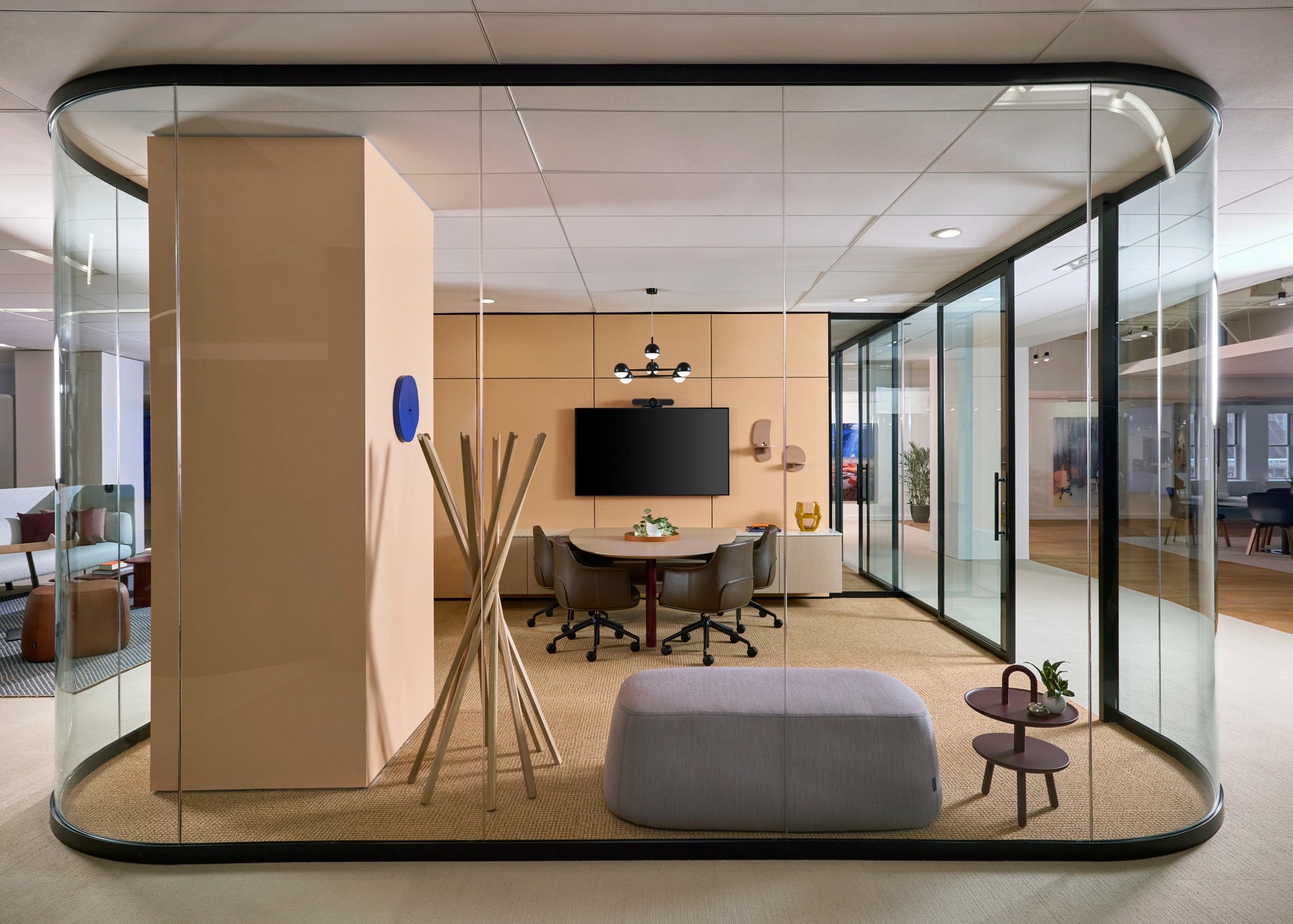

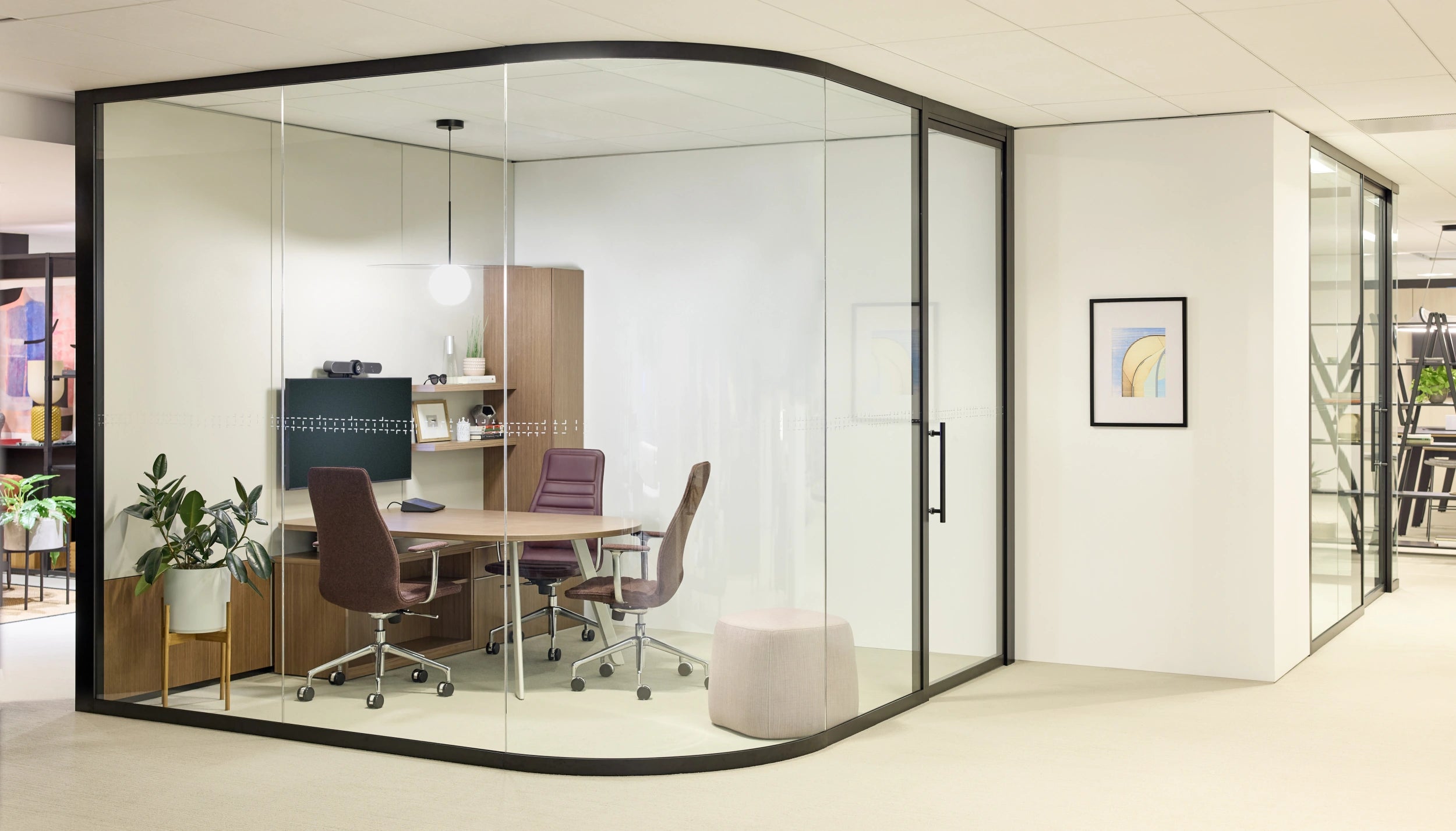

Haworth Chicago Showroom Chicago, IL

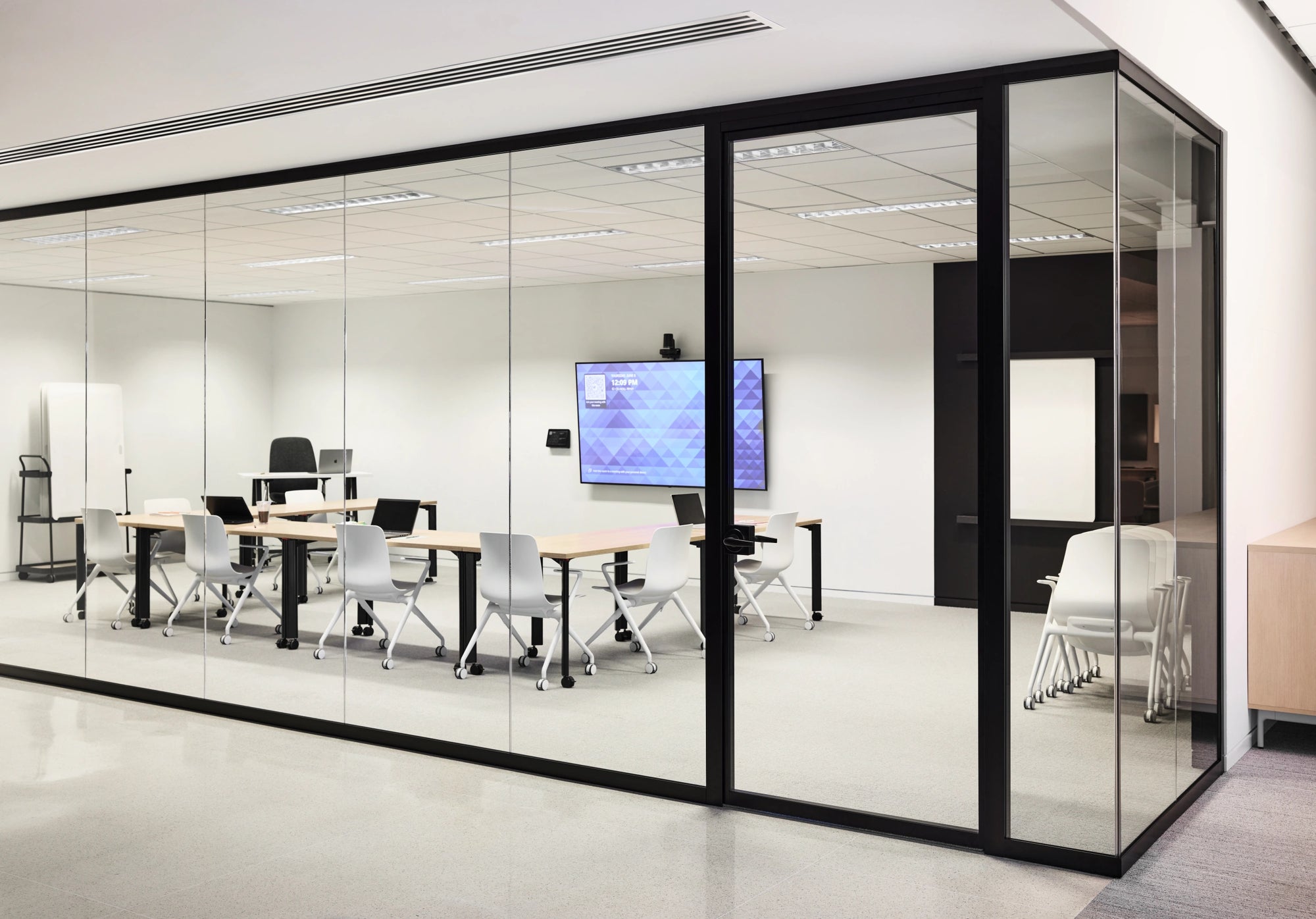

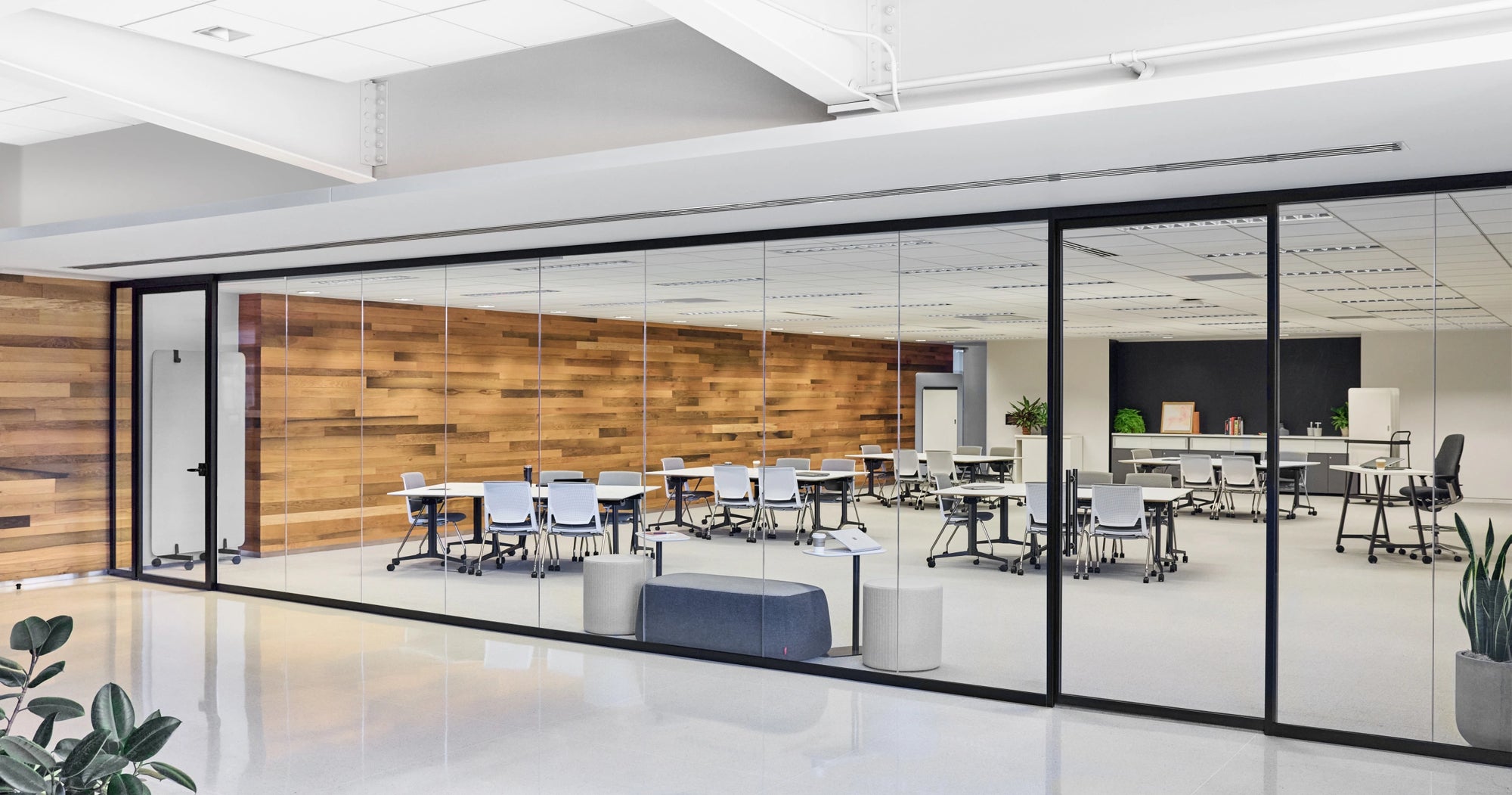

Haworth Inc. Headquarters Holland, MI
Resources
