Acoustics
STC ratings are determined by testing a representative according to ASTM E90 and classified according to ASTM E413 by an accredited independent testing agency
- Glass, Single Glazed - 37 STC
- Glass, Double Glazed - 50 STC
4” Platform
Enclose Frameless Glass Walls

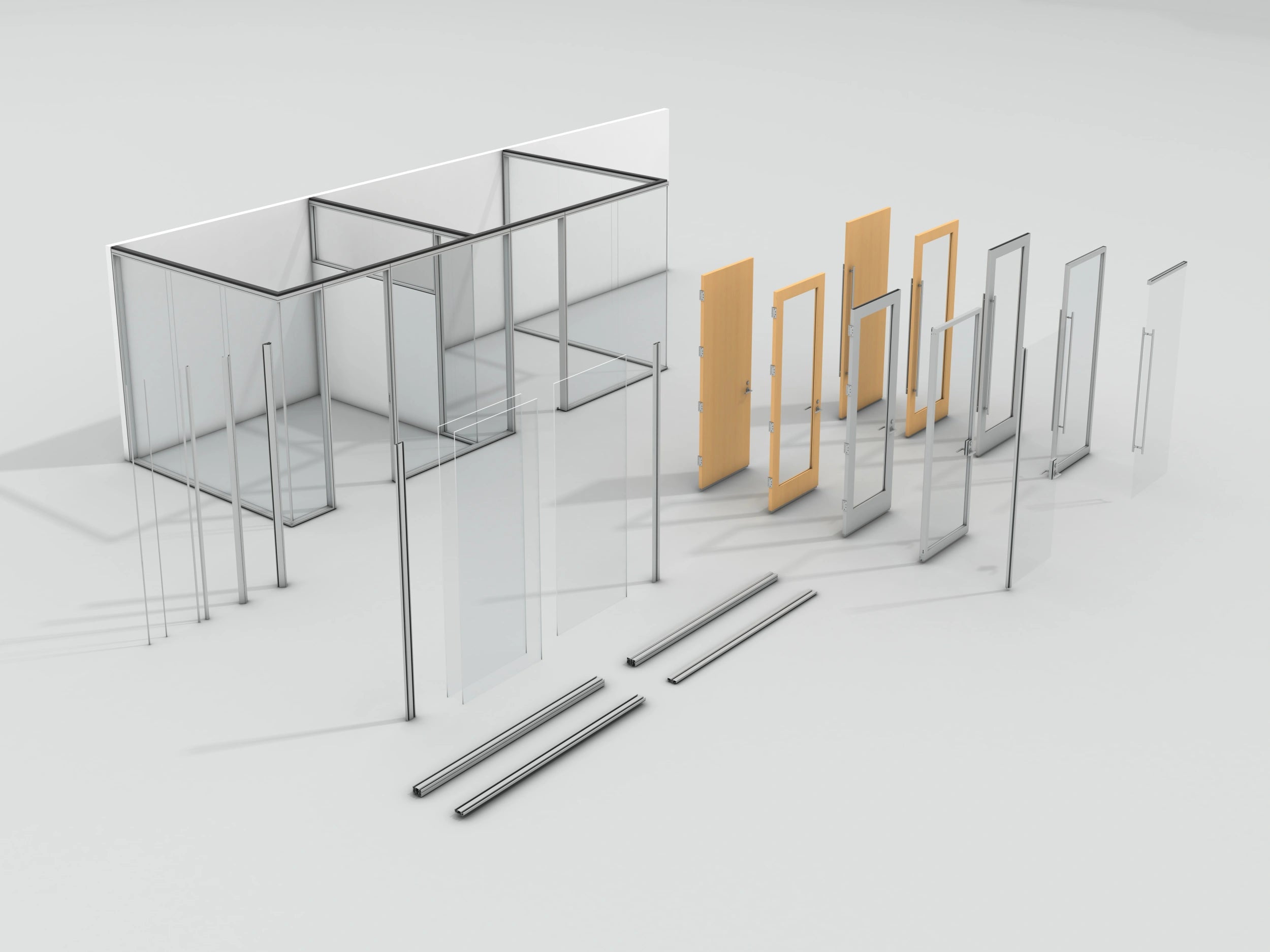

System Overview

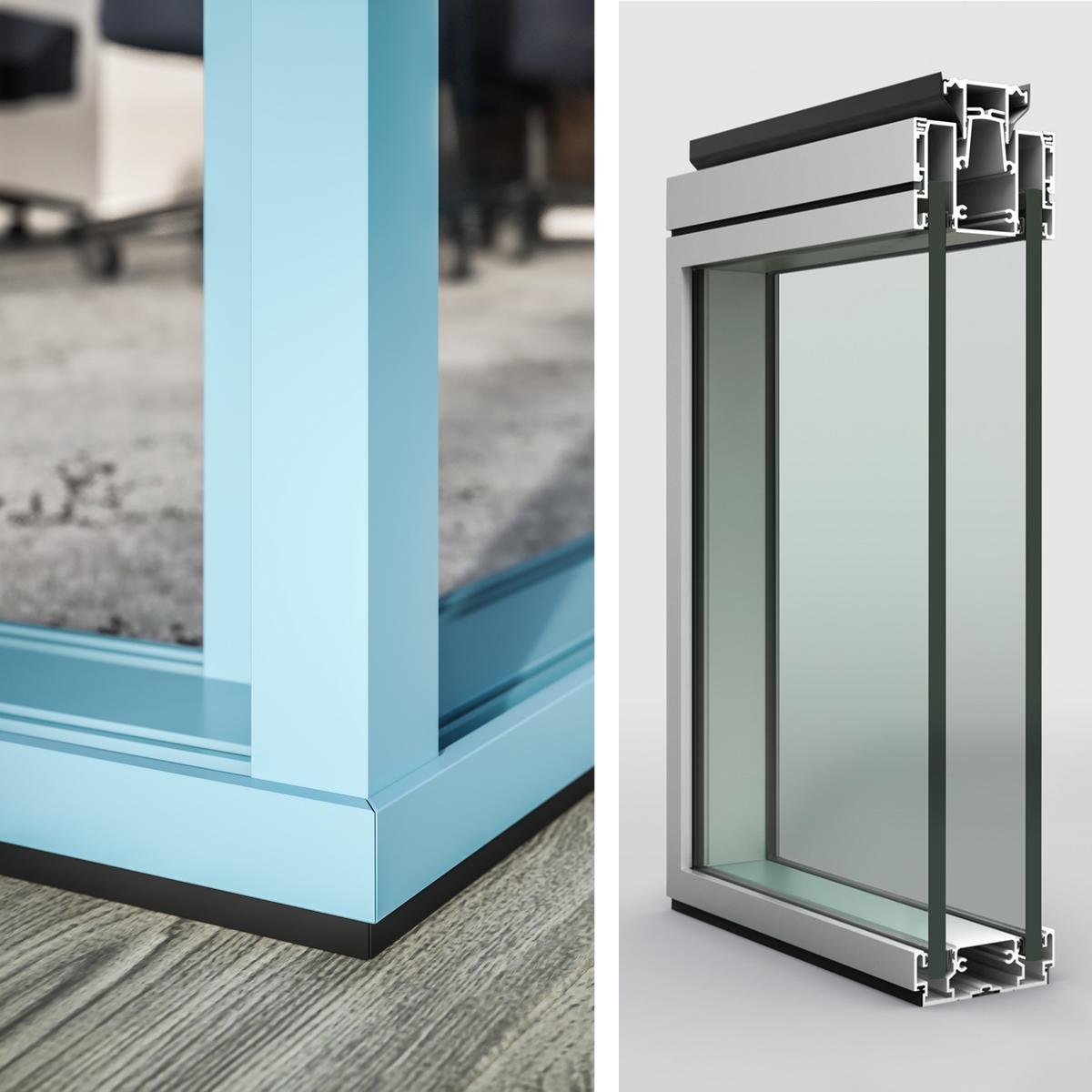

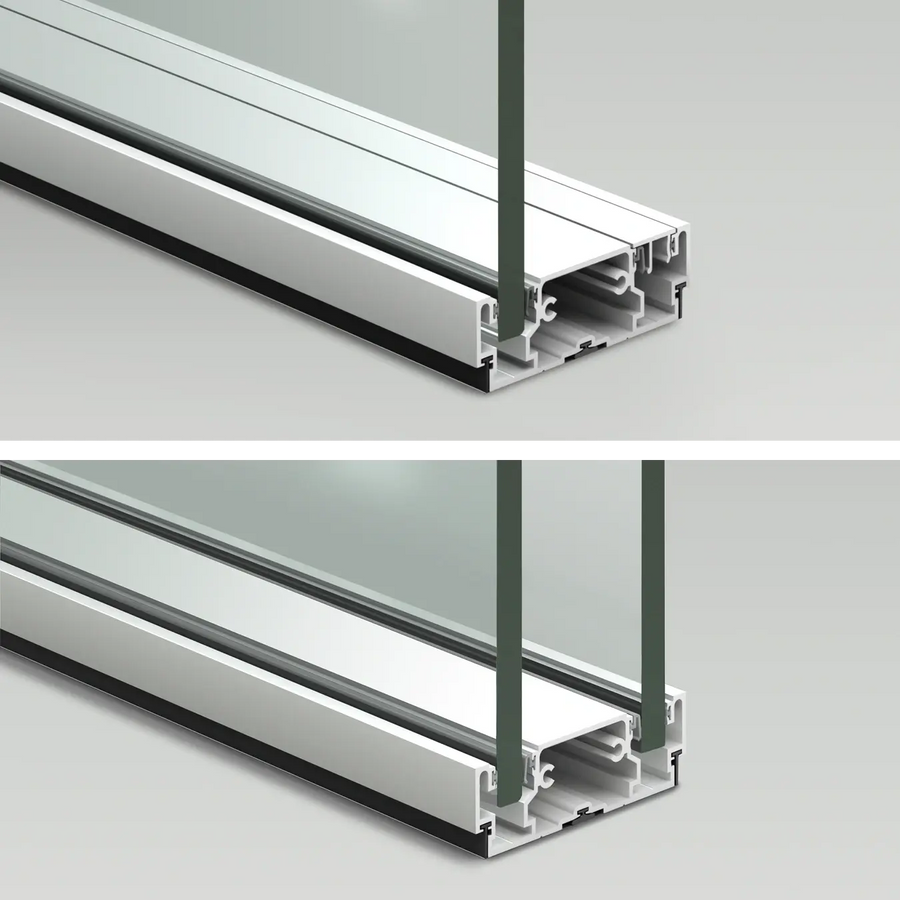

System Fundamentals

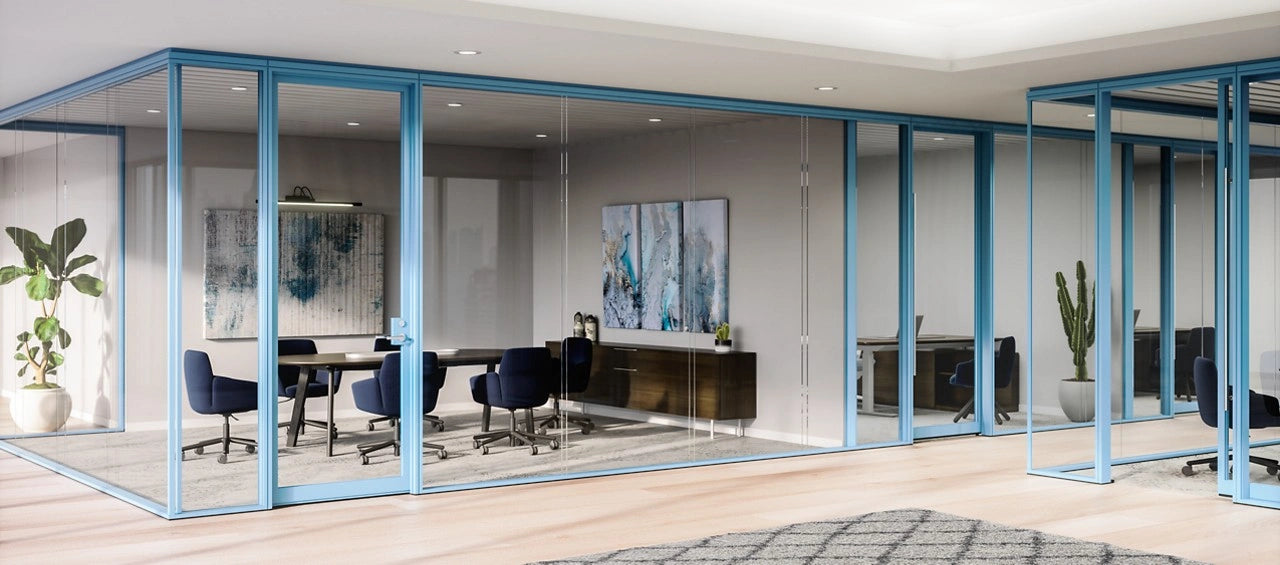

The 4” Frameless Glass Wall Platform, available in both single and double glazing, has a low base profile. It can be applied in extremely long runs, in faceted curves or variable-angle corner conditions, giving project teams the freedom to shape transparent enclosures with precision.
Glazing Options

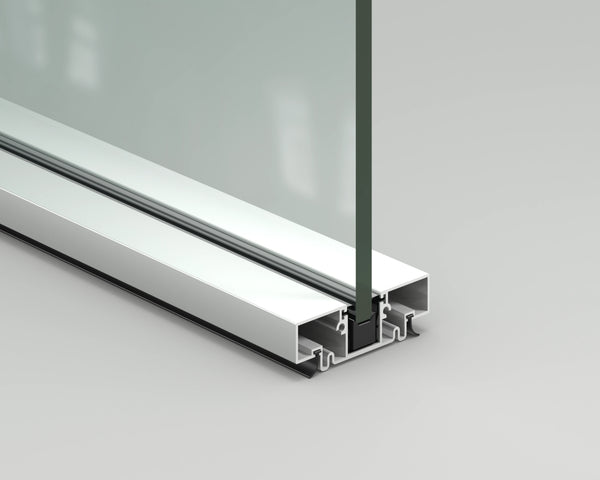

Offset Glazing
- Framing accommodates offset glazed application for areas where double glazing is not required
- Inactive channels are discretely capped but remain available for future glazing additions
Double Glazing
- Double glazed solution available for higher acoustic performance

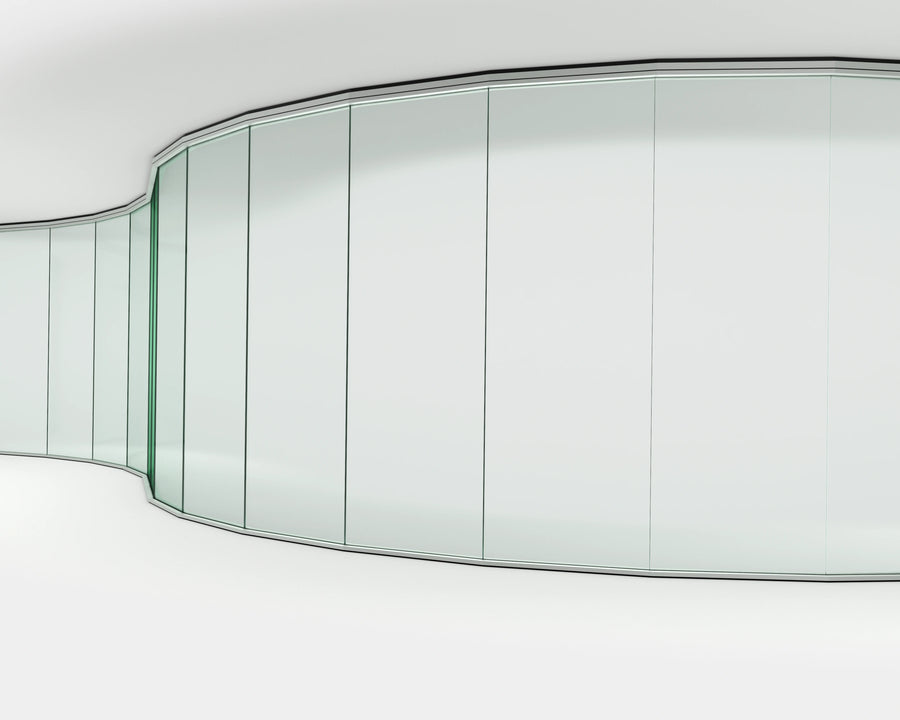

Unlimited Span Length

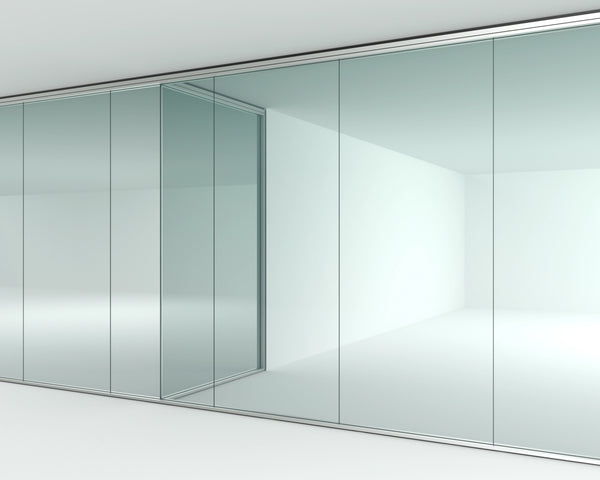

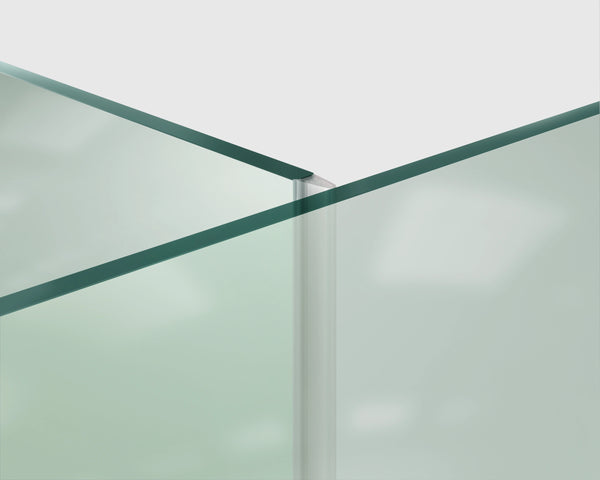

Faceted front allows for curvilinear fronts using silicone or variable angle joints

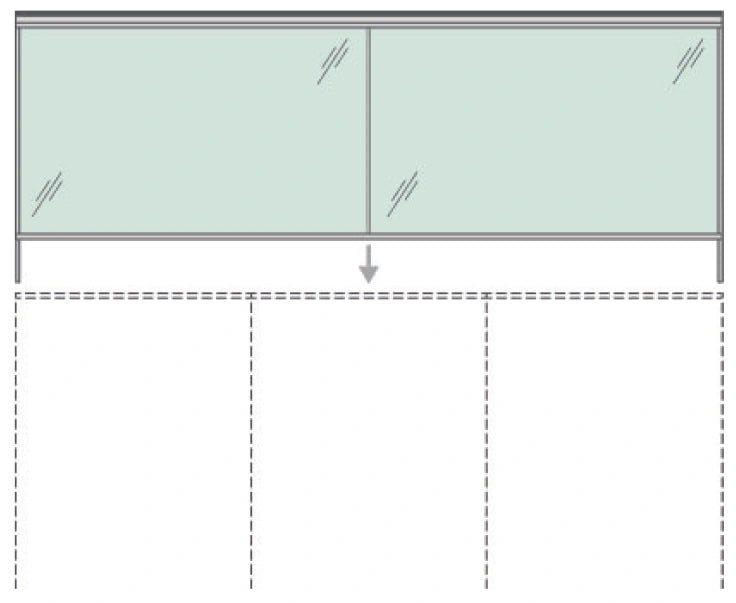

Frameless Glass Stack On
Doors
Choose among various door types, door leafs, and door handing. Both full height and transom options are available.
Glass Slab Swing Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 3/8” (10mm) tempered
Metal Glazed Swing Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Metal doors are 1 3/4” (44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’(3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96”(1219mm - 2438mm)
• Glass Thickness: 1/4”-3/8” (6mm - 10mm) tempered or laminated glass
Wood Swing Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
Wood Glazed Sliding Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96”(1219mm - 2438mm)
• Glass Thickness: 1/4”-3/8” (6mm - 10mm) tempered or laminated glass
Double Glazed Swing Door
- Concealed closer option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 3/16” (5mm) tempered
Glass Slab Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 3/8” (10mm) tempered
Metal Glazed Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Metal doors are 1 3/4” (44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 1/4”-3/8” (6mm - 10mm) tempered or laminated glass
Wood Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
Wood Glazed Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 1/4”-3/8” (6mm - 10mm) tempered or laminated glass
Double Glazed Sliding Door
- Close-assist option for improved operation experience
- Glass or solid transom available
- Adjustable door bottom plinth provides maximum adjustability
- Wood doors are 1 3/4”(44mm) thick, accommodating industry-standard hardware
- Dimensions:
• Door Height: 10’ (3048mm)
• Door Height with Transom: 12’ (3658mm)
• Frame Width, Single: 40” - 48” (1016mm - 1219mm)
• Frame Width, Double: 48” - 96” (1219mm - 2438mm)
• Glass Thickness: 3/16” (5mm) tempered

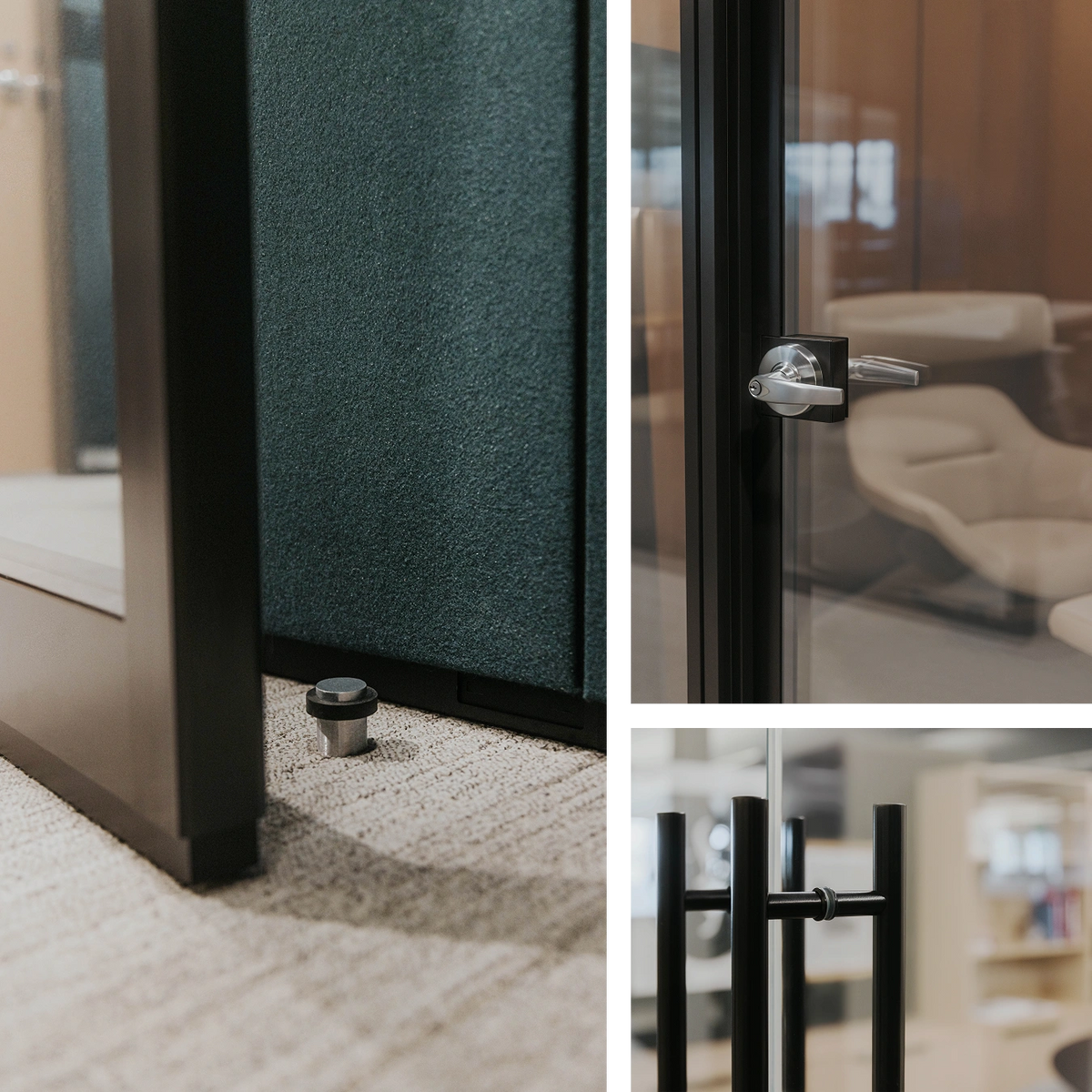

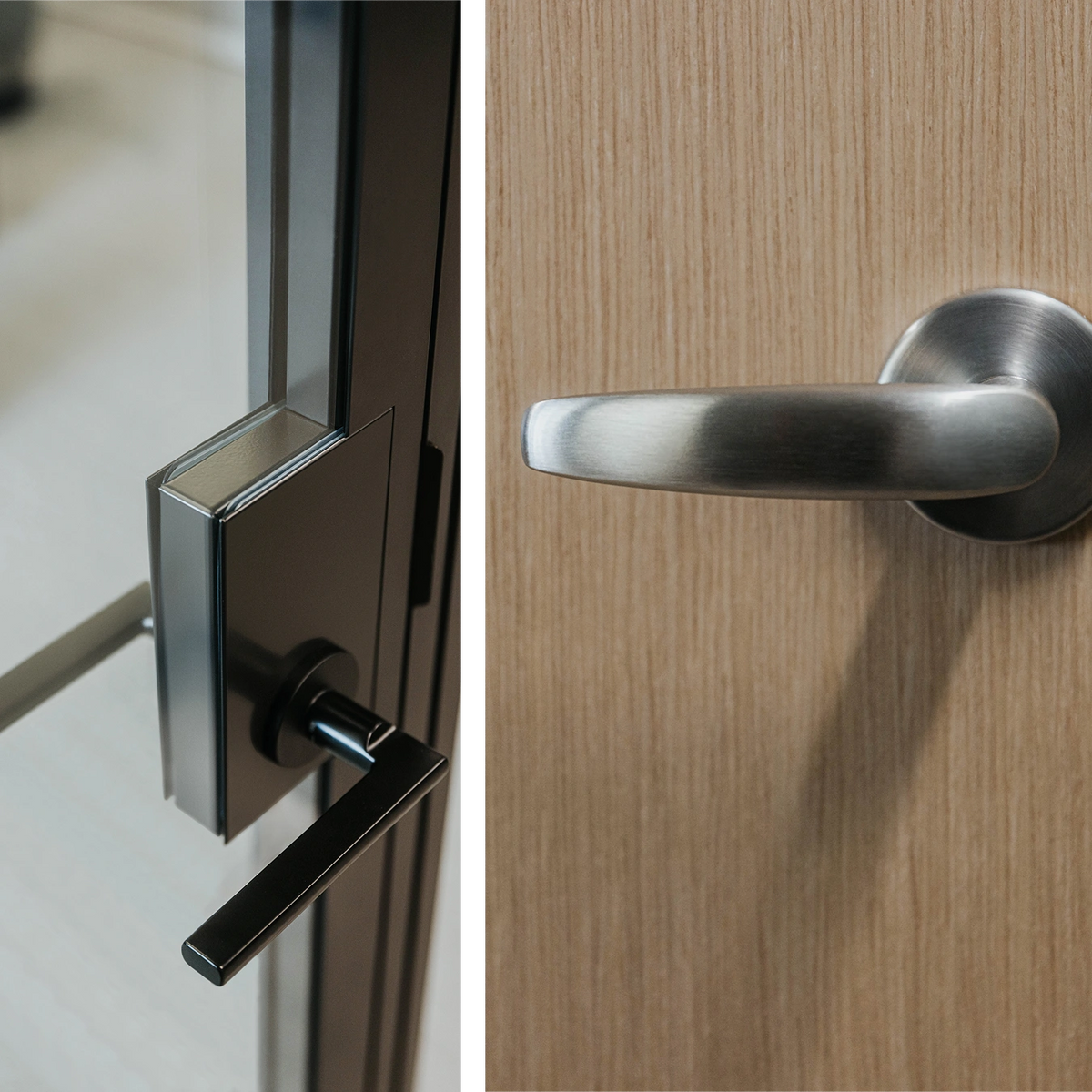

Hardware
Door hardware brings the final layer of function, finish, and user experience to the wall system.
Options are available to hand, secure, control, and protect doors.

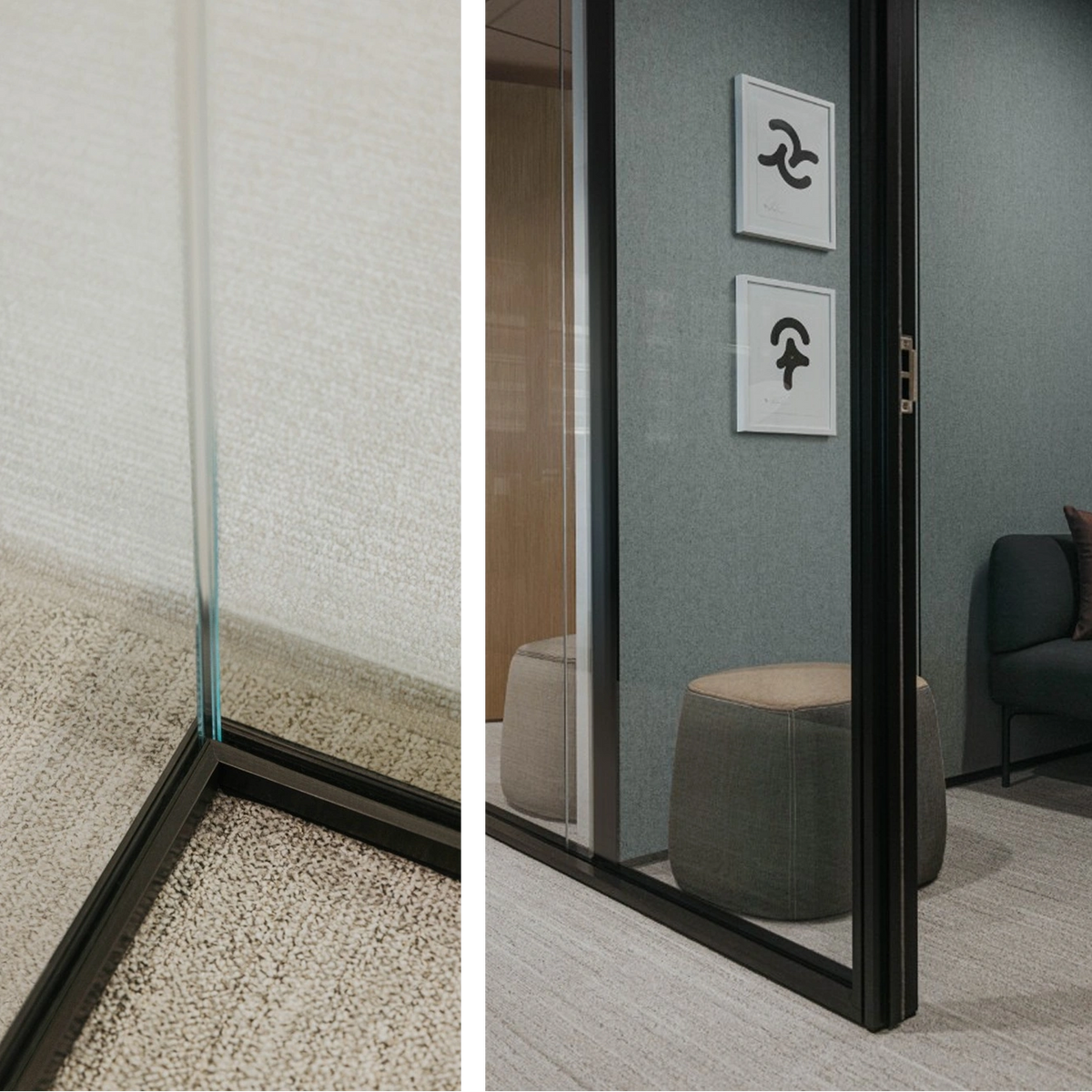

Transition Details
Thoughtful transitions maintain system continuity while meeting planning requirements.

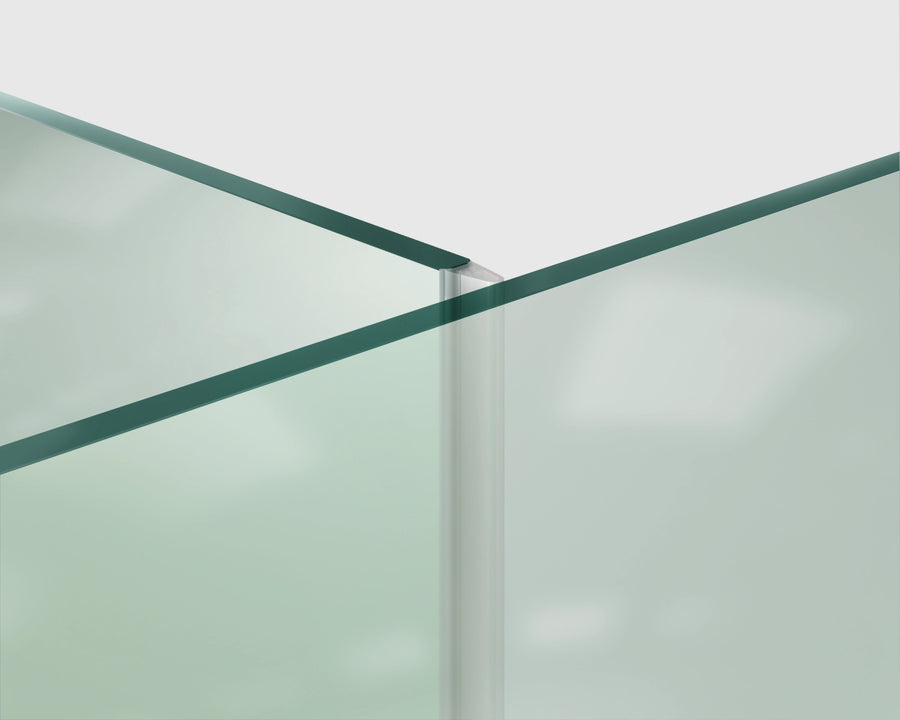

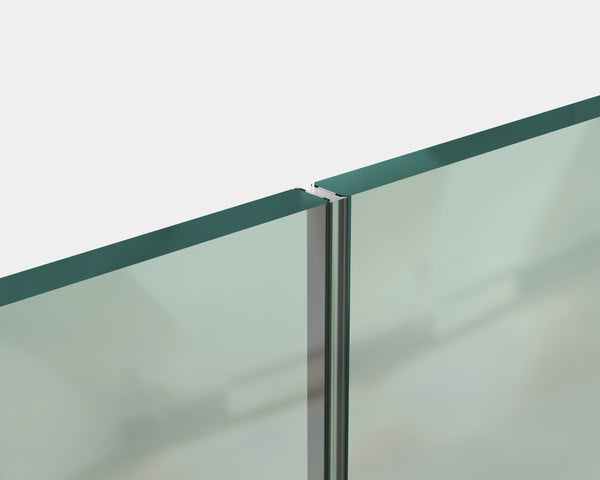

2-Way Transition

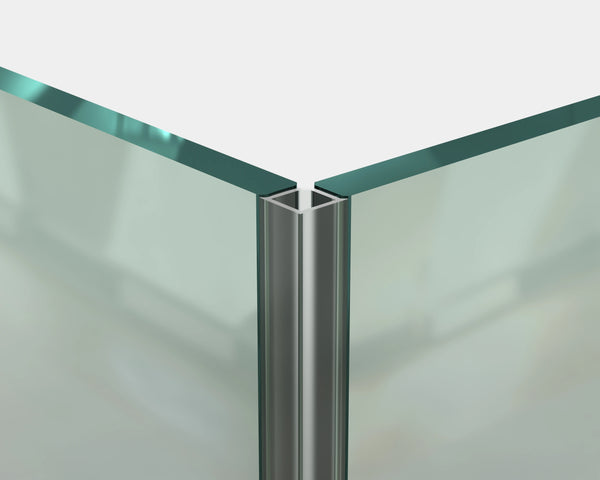

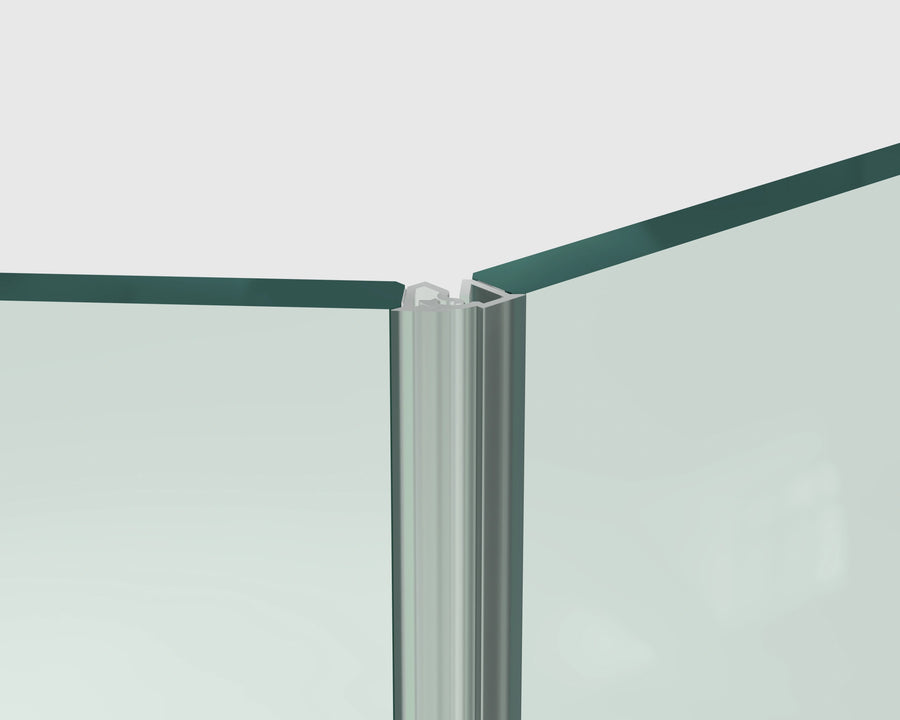

Variable Angle Transition
- Glazing connector available in clear plastic or painted trim
3-Way Transitions
Fly-By Posts
- Off-modular interface with glass front
Materials & Finishes
Select from a full architectural range of finish options for visual continuity or project-specific levels of expression.
Features & Performance
The 4" Platform Site Built Glass Wall System is engineered for performance—delivering dependable privacy, durability, and finish consistency. Designed for demanding interiors, it balances everyday performance with clean, disciplined architectural expression.

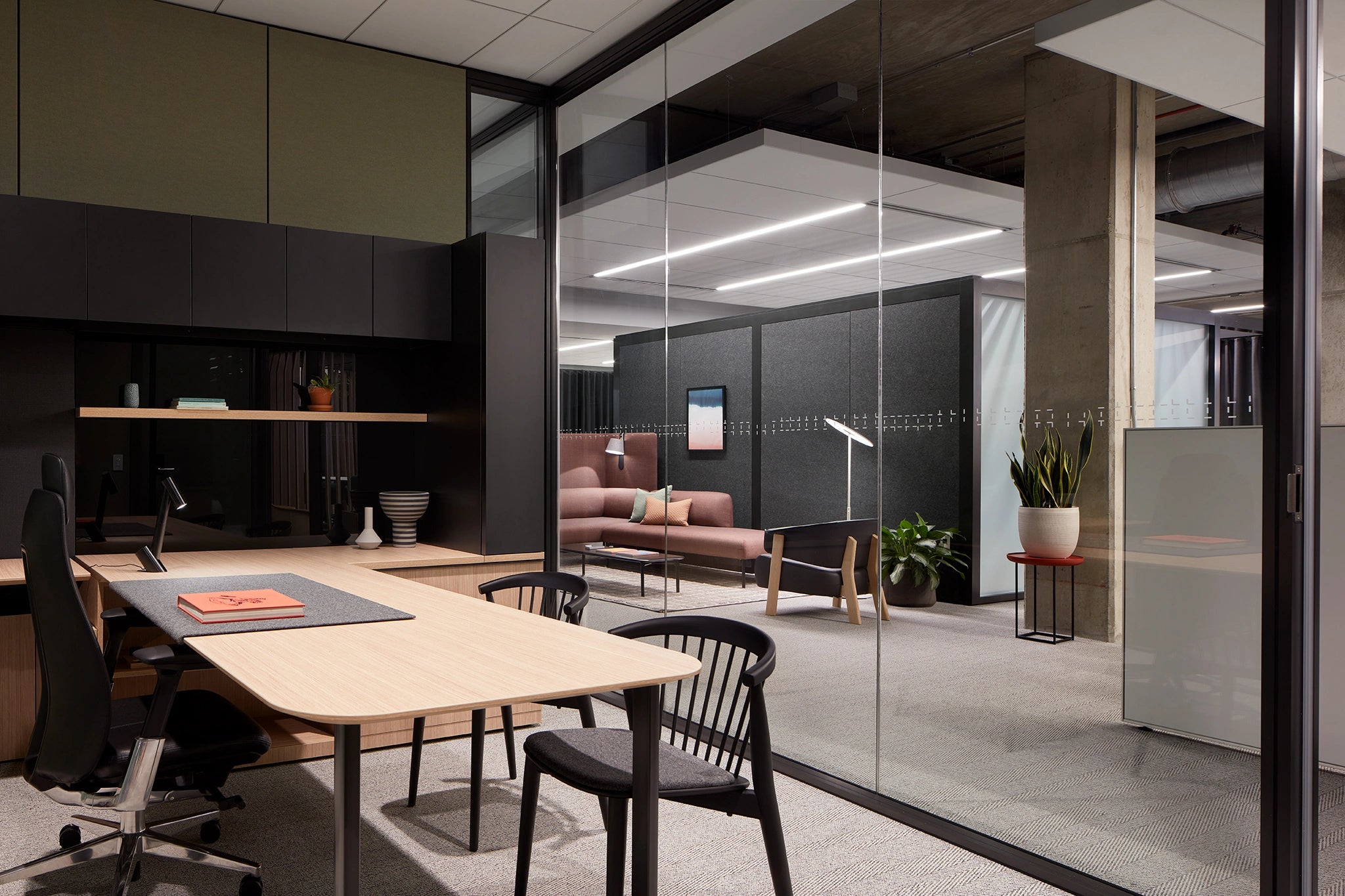

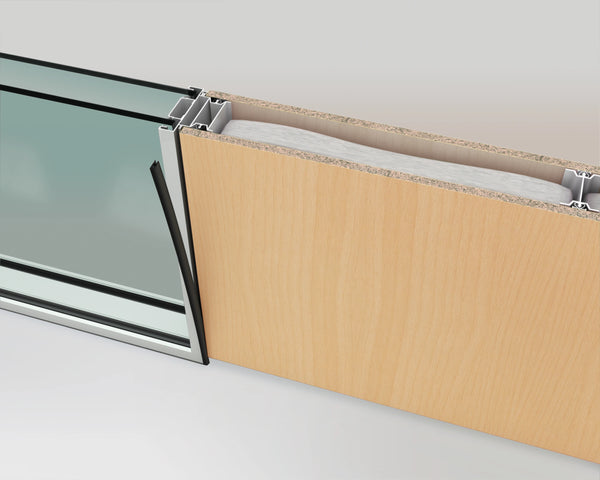

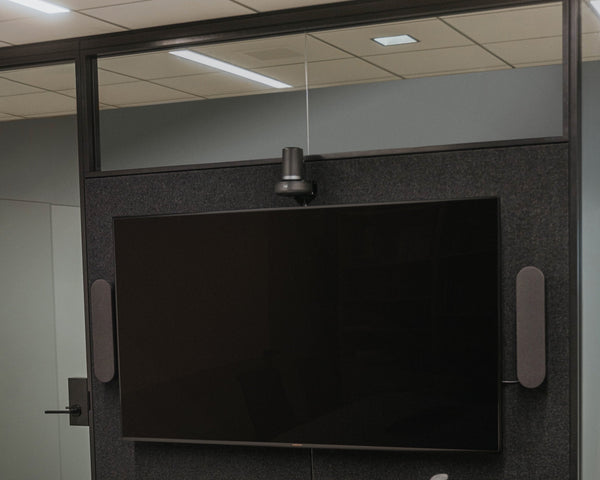

Compatible Products
The 4” Frameless Glass Wall Platform works seamlessly with other 4” platform solutions, giving project teams greater freedom to balance privacy, transparency, acoustic performance, and light. Pair glass and solid conditions within the same platform to create a more complete architectural system for enclosed focus, visual connection, and long-term adaptability across the floorplate.

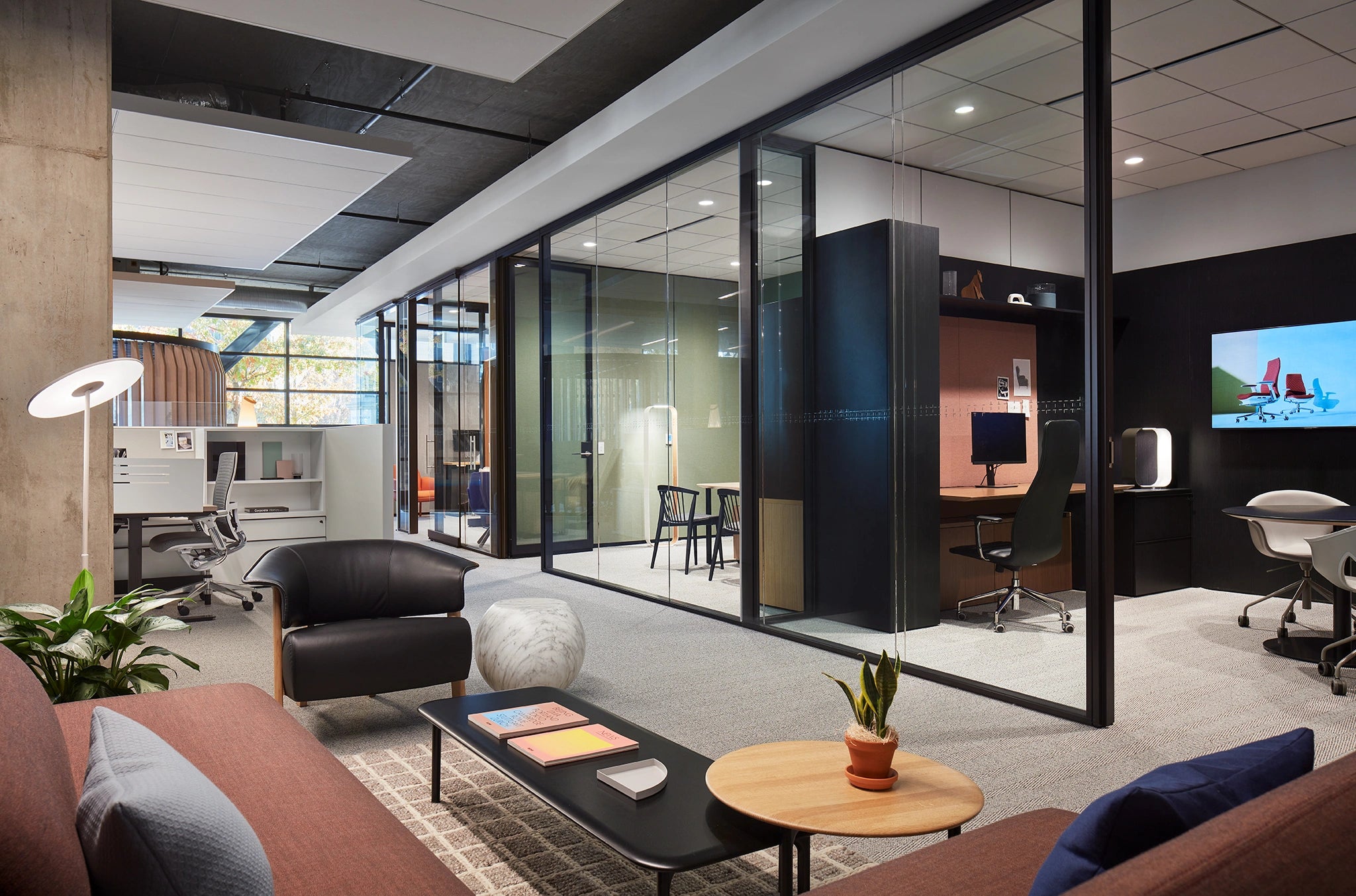

Project Gallery

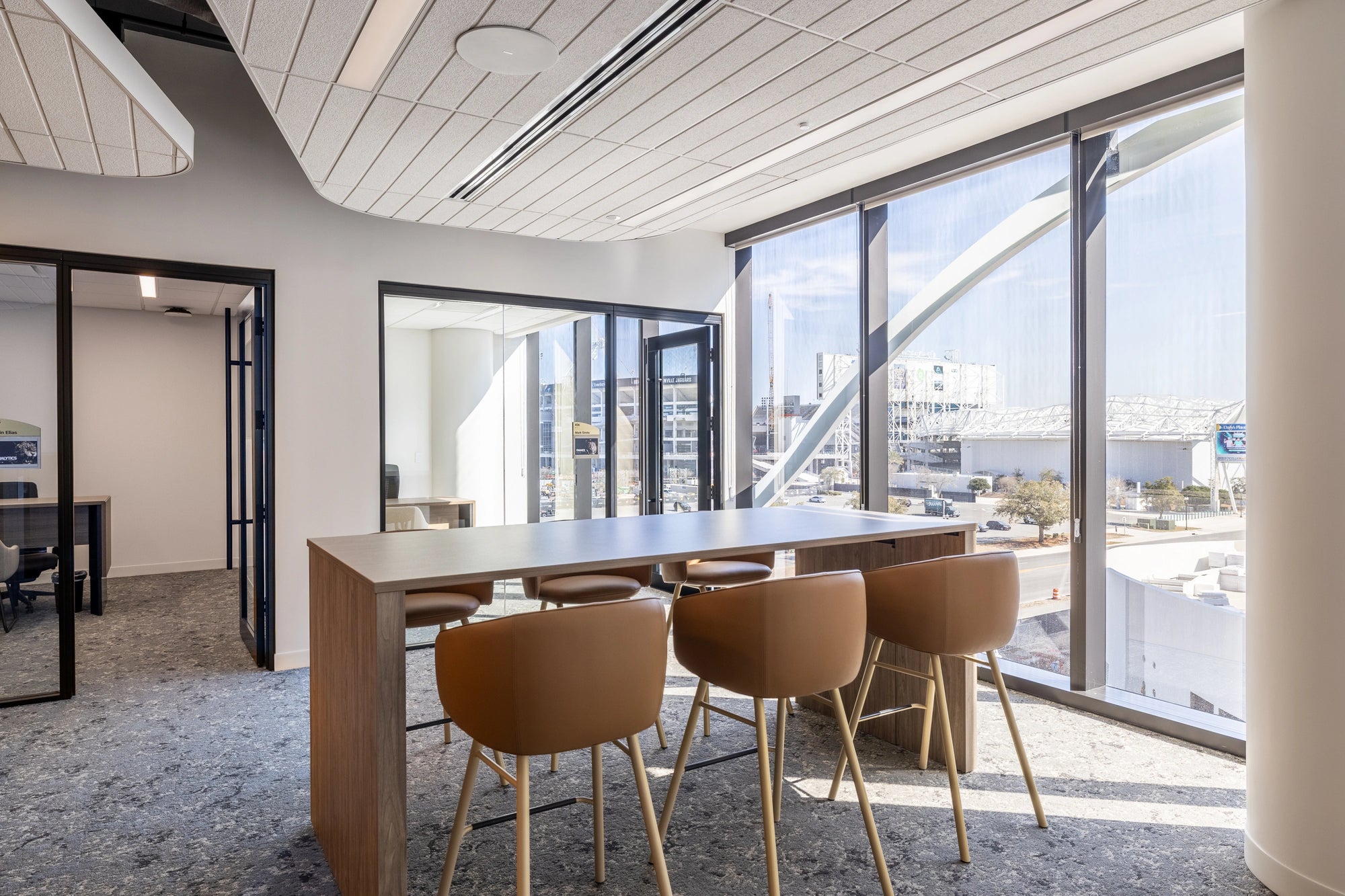

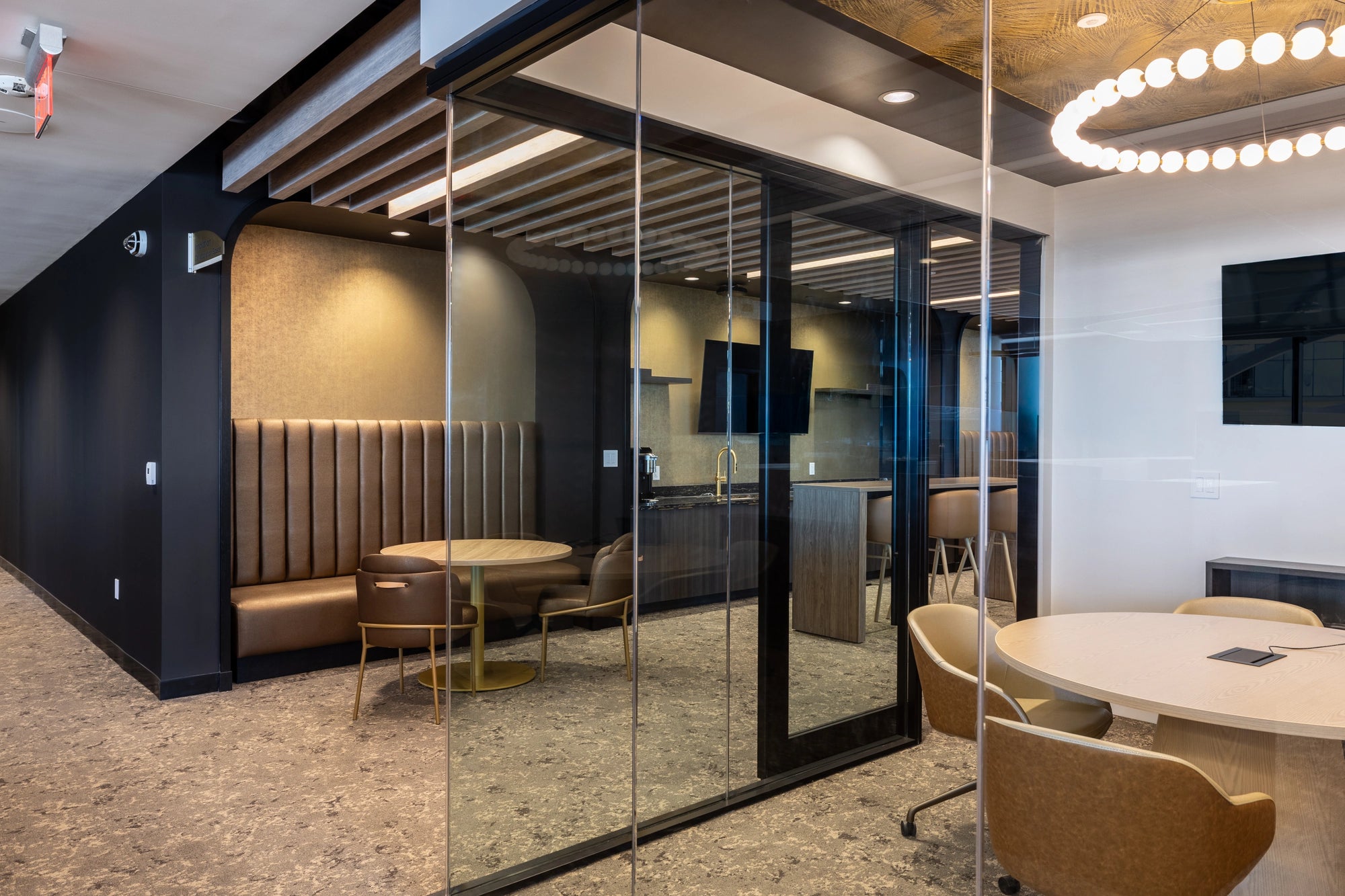

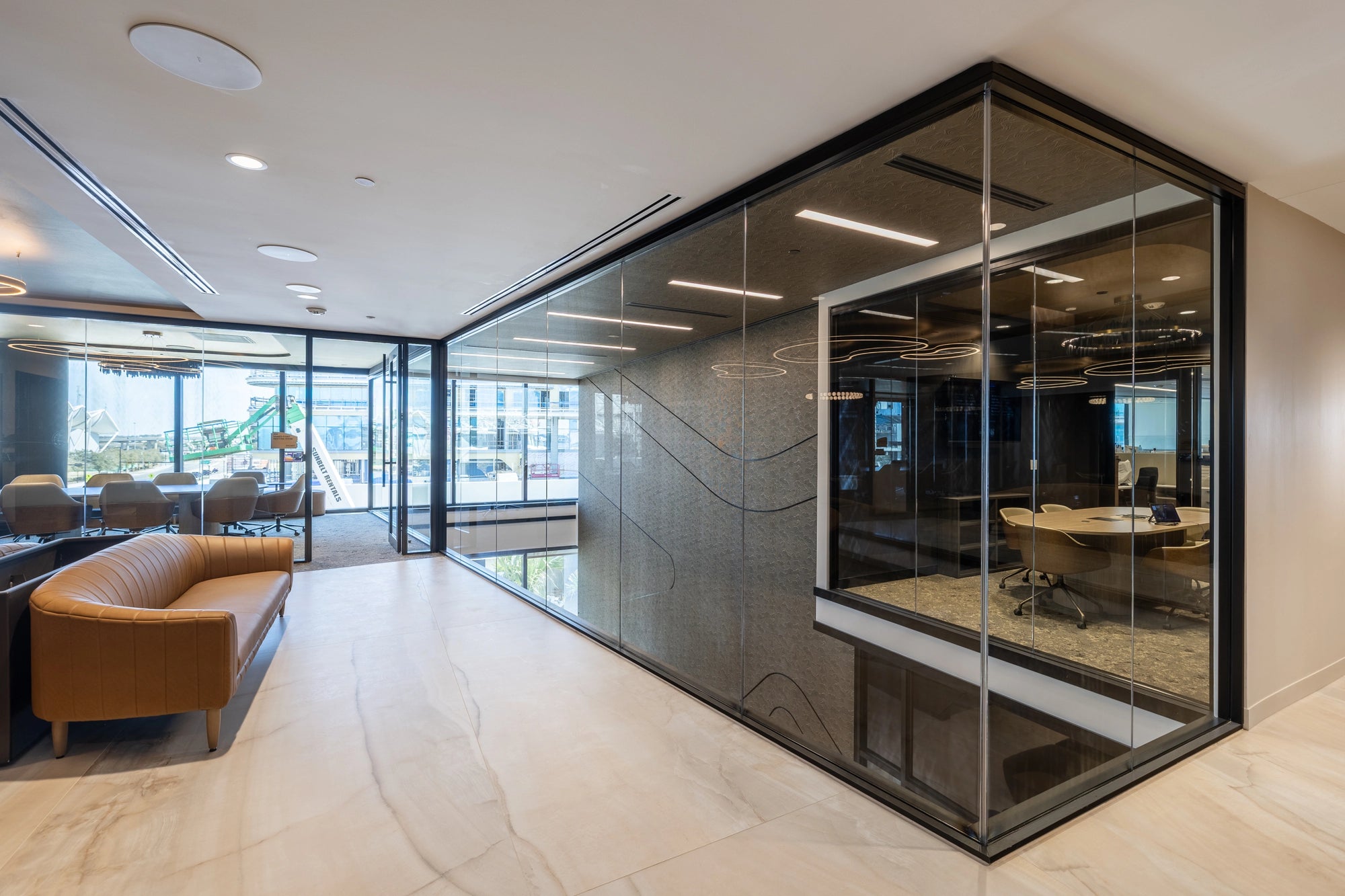

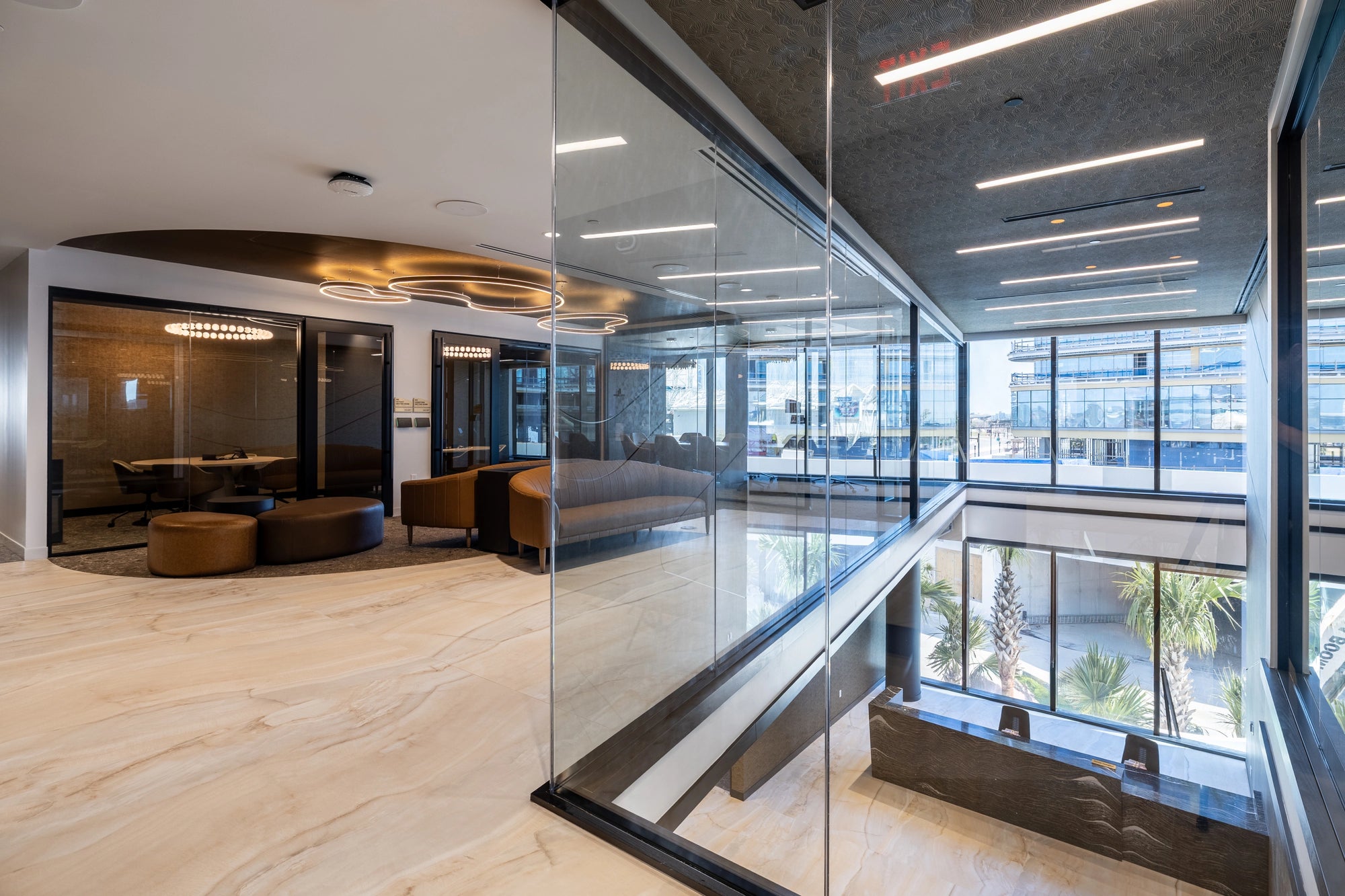

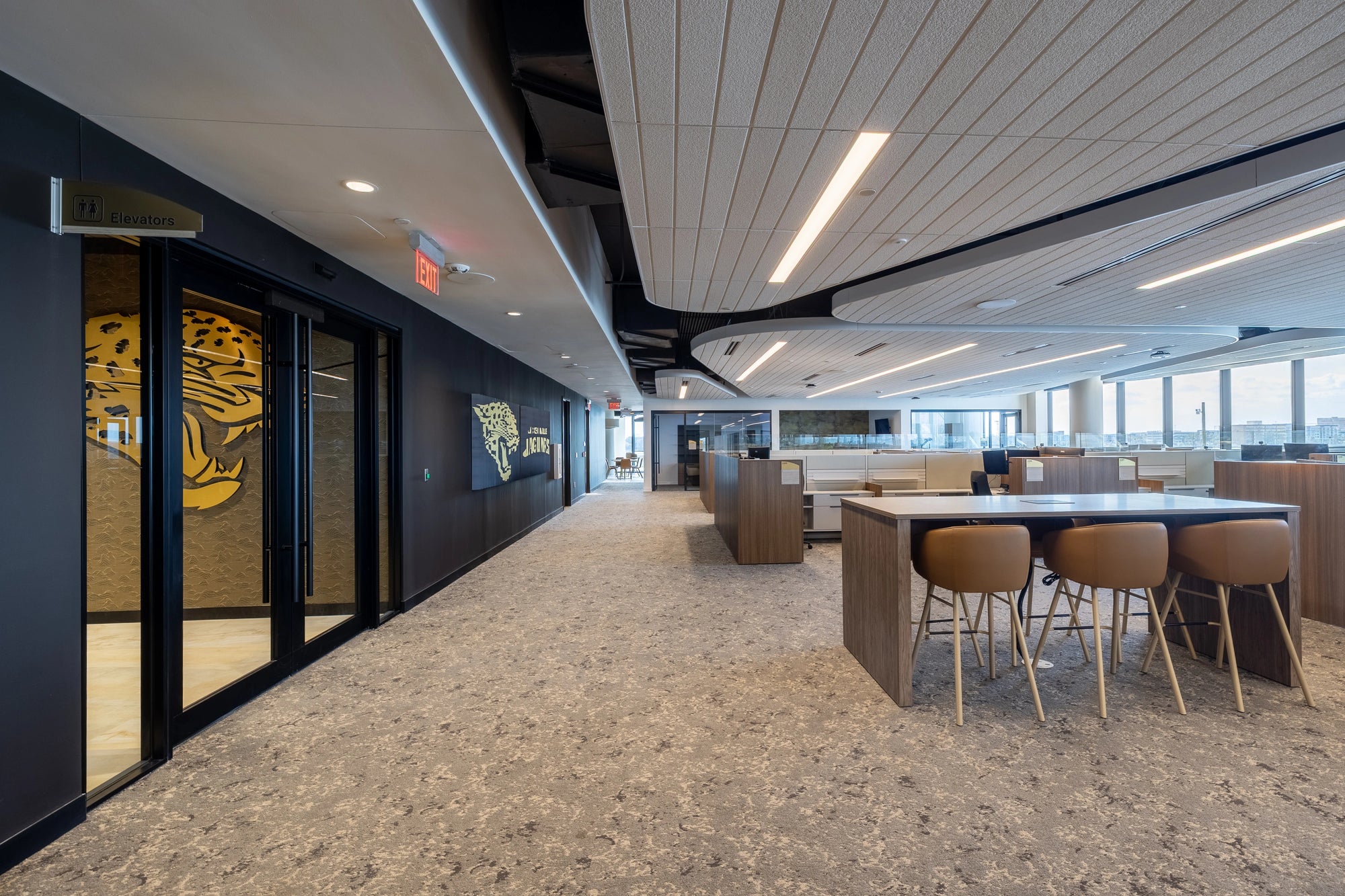

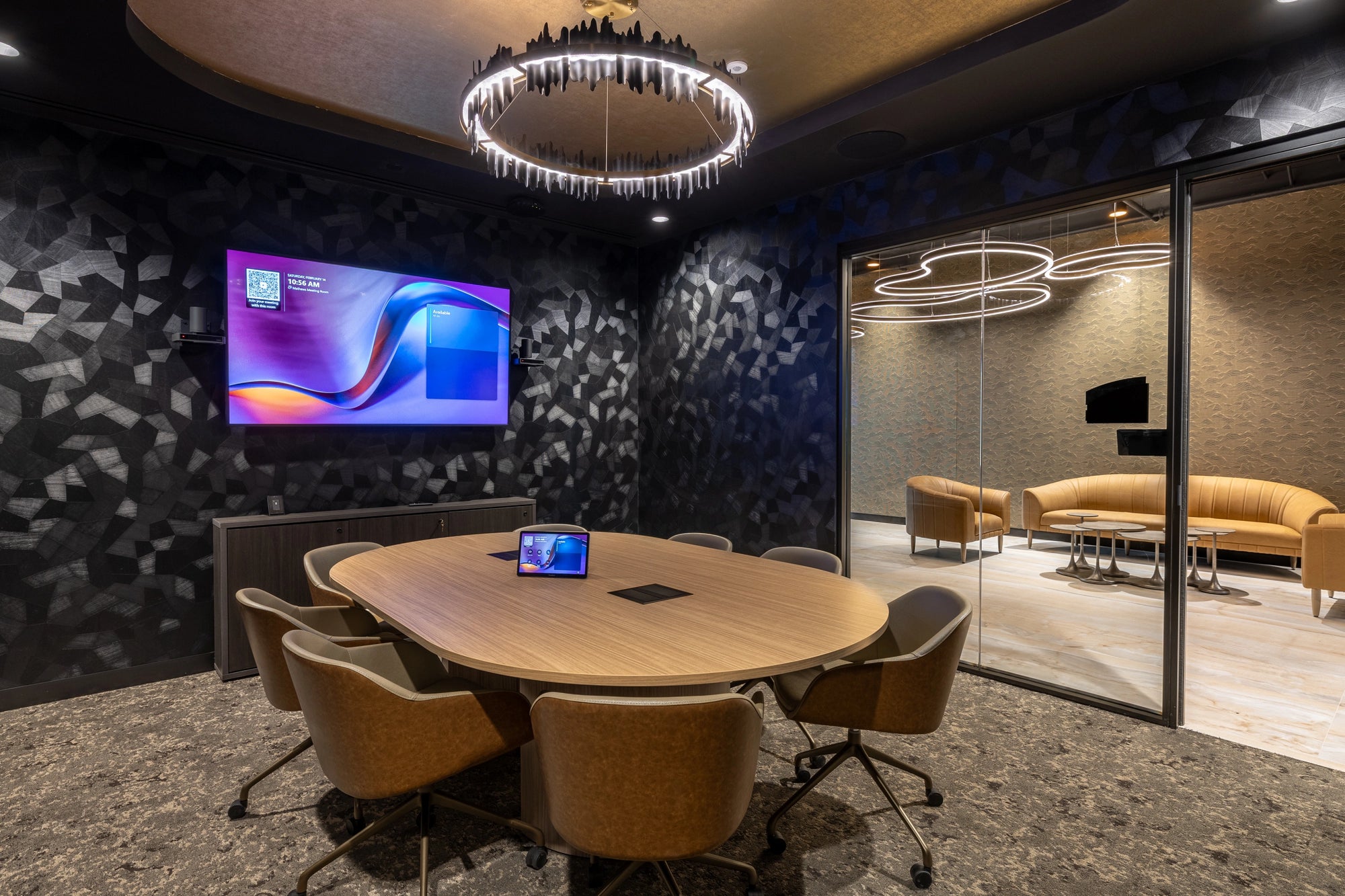

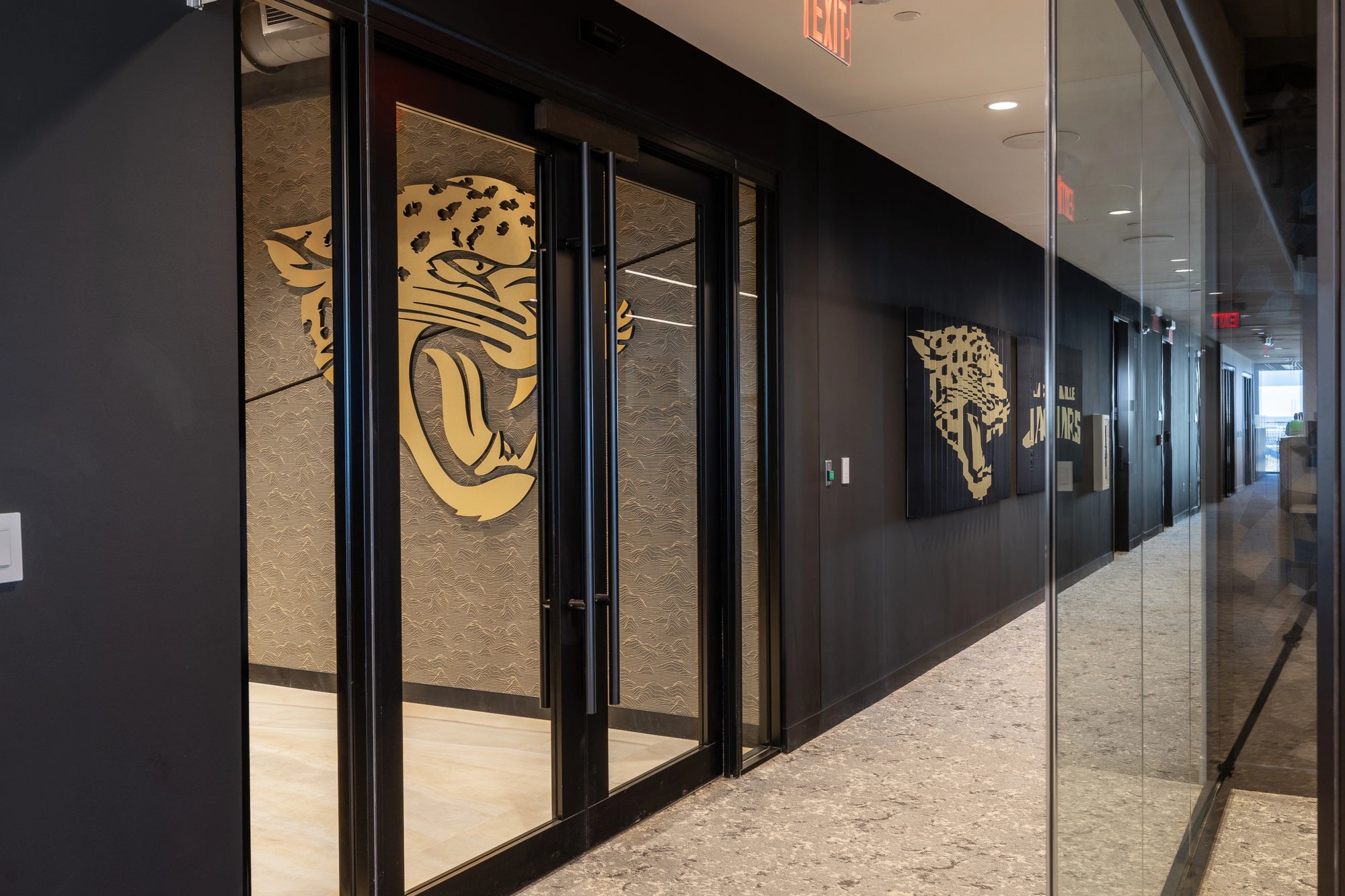

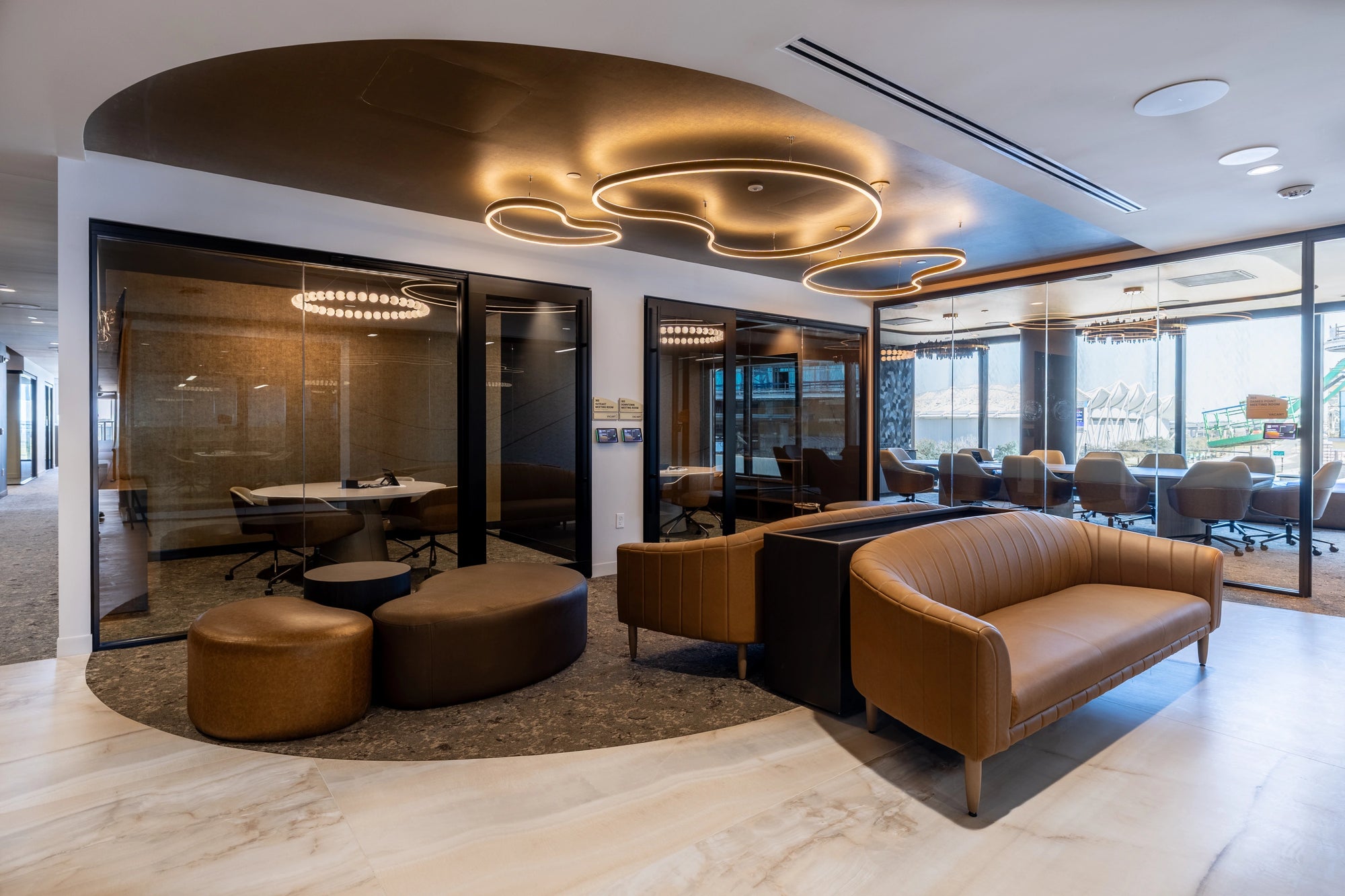

Jacksonville Jaguars Jacksonville, FL
Ash Brokerage Fort Wayne, IN

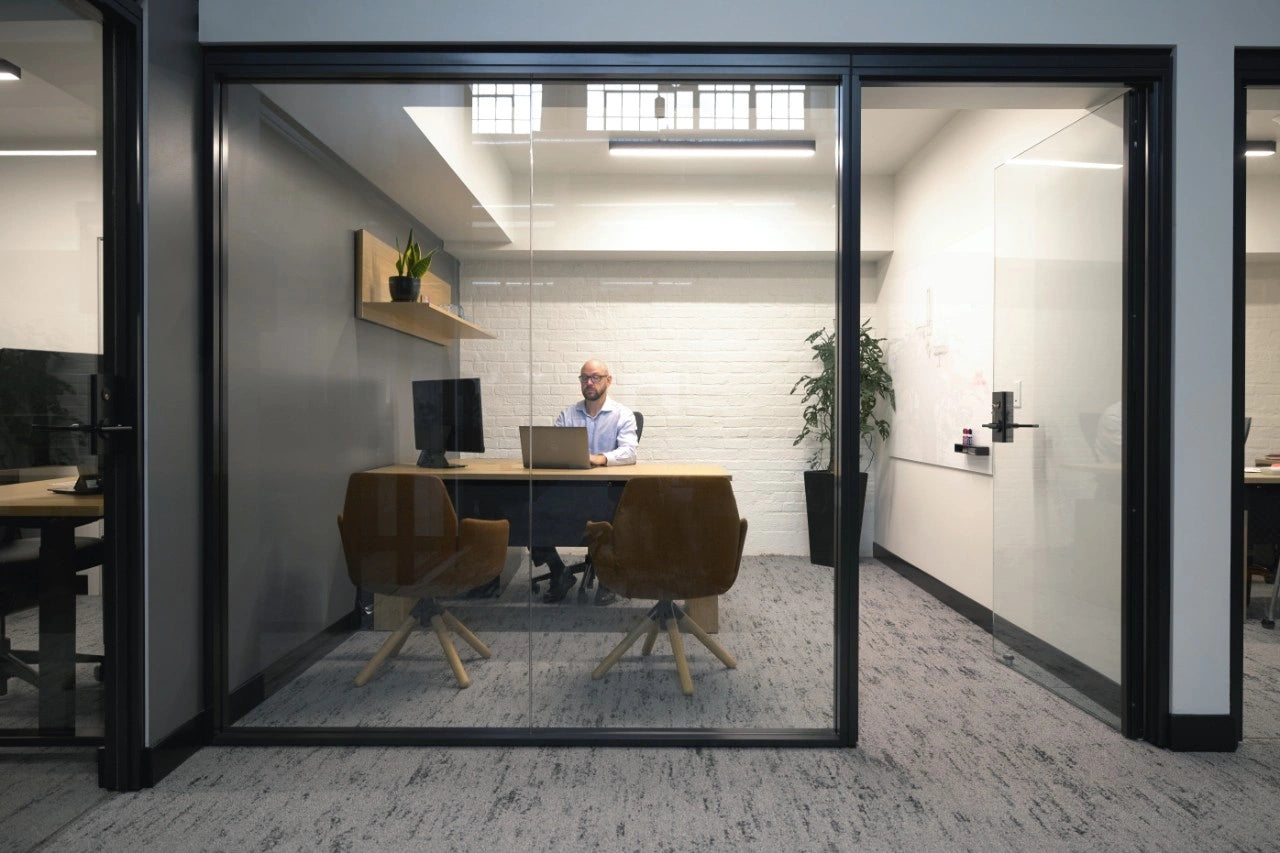

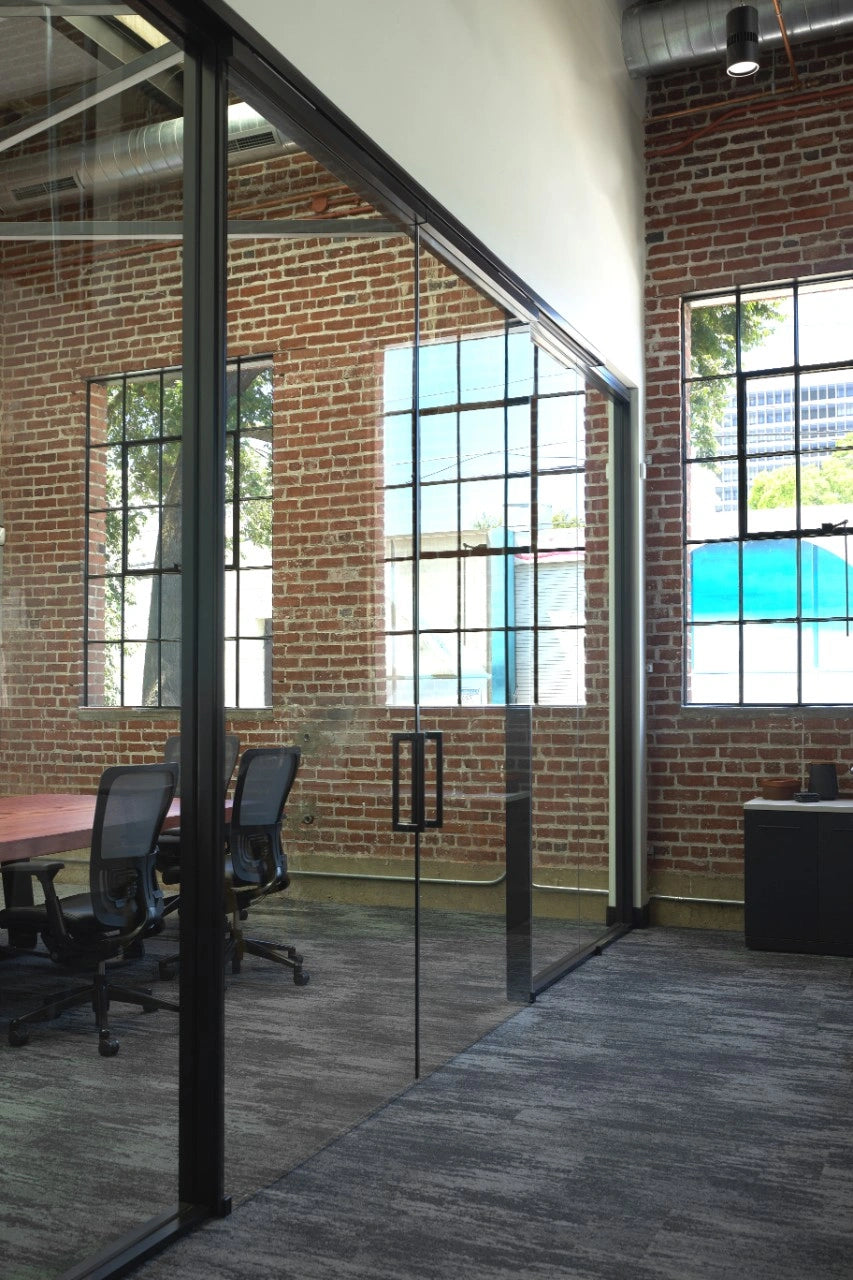

LPAS Architecture + Design Sacramento, CA

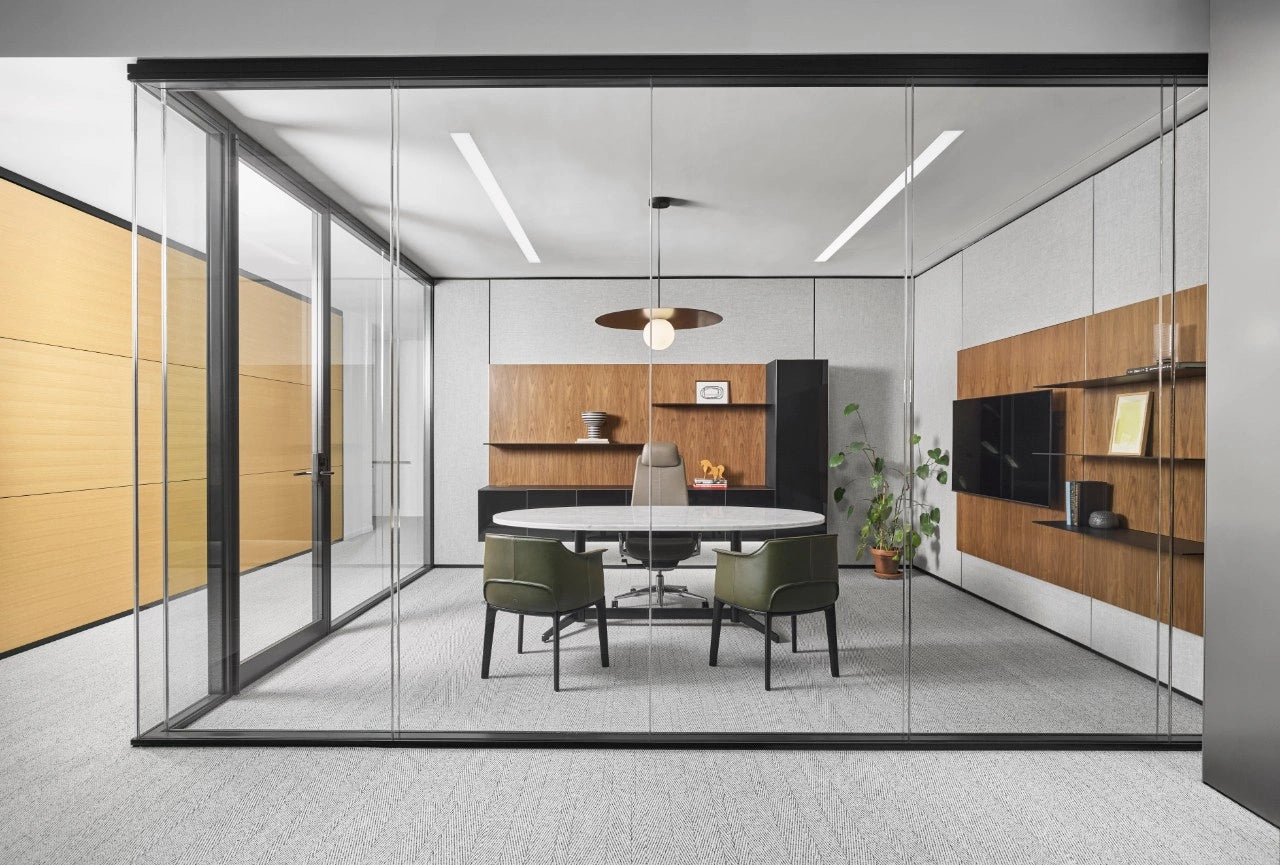

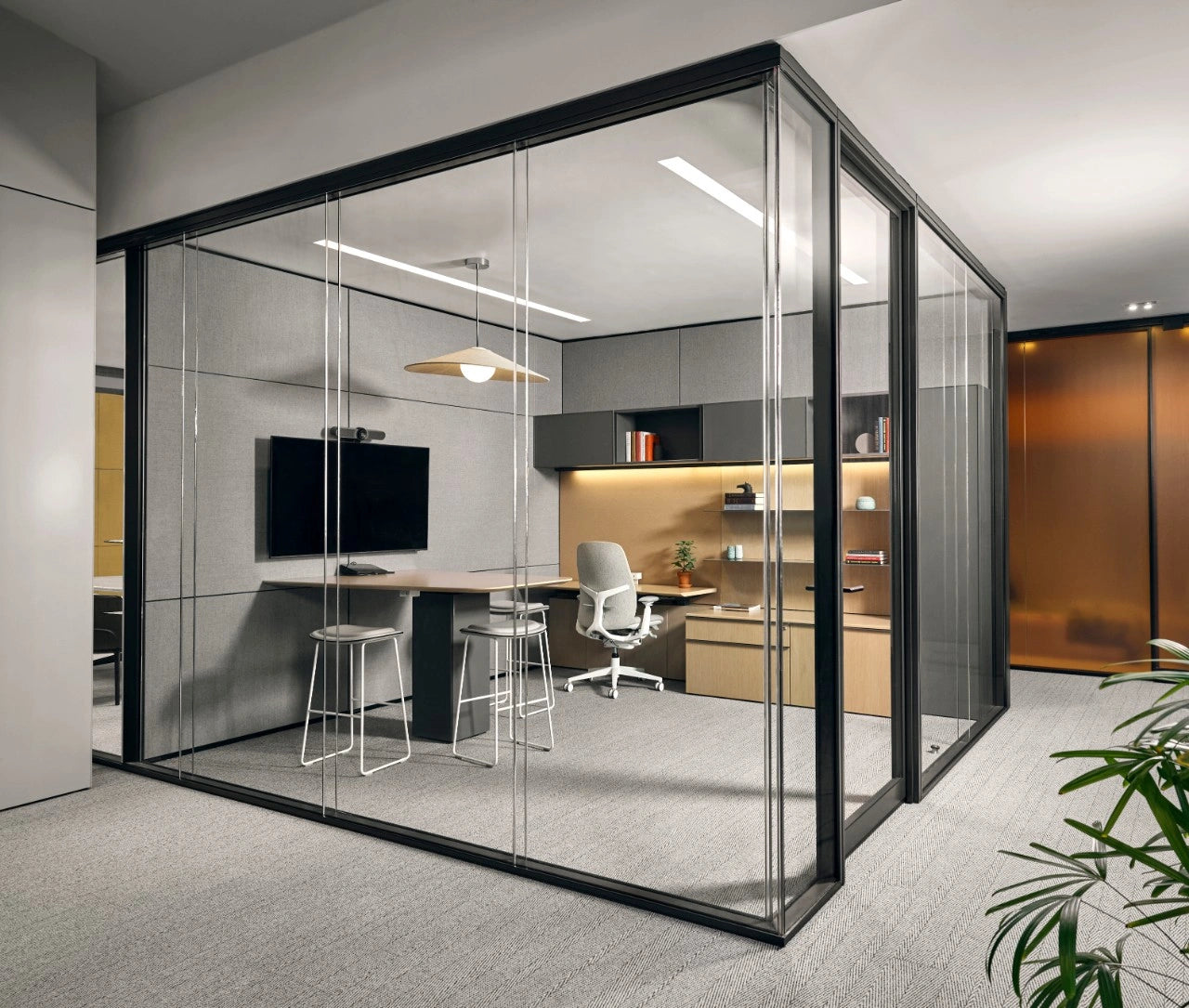

Haworth Showroom New York, NY
